Wilwood

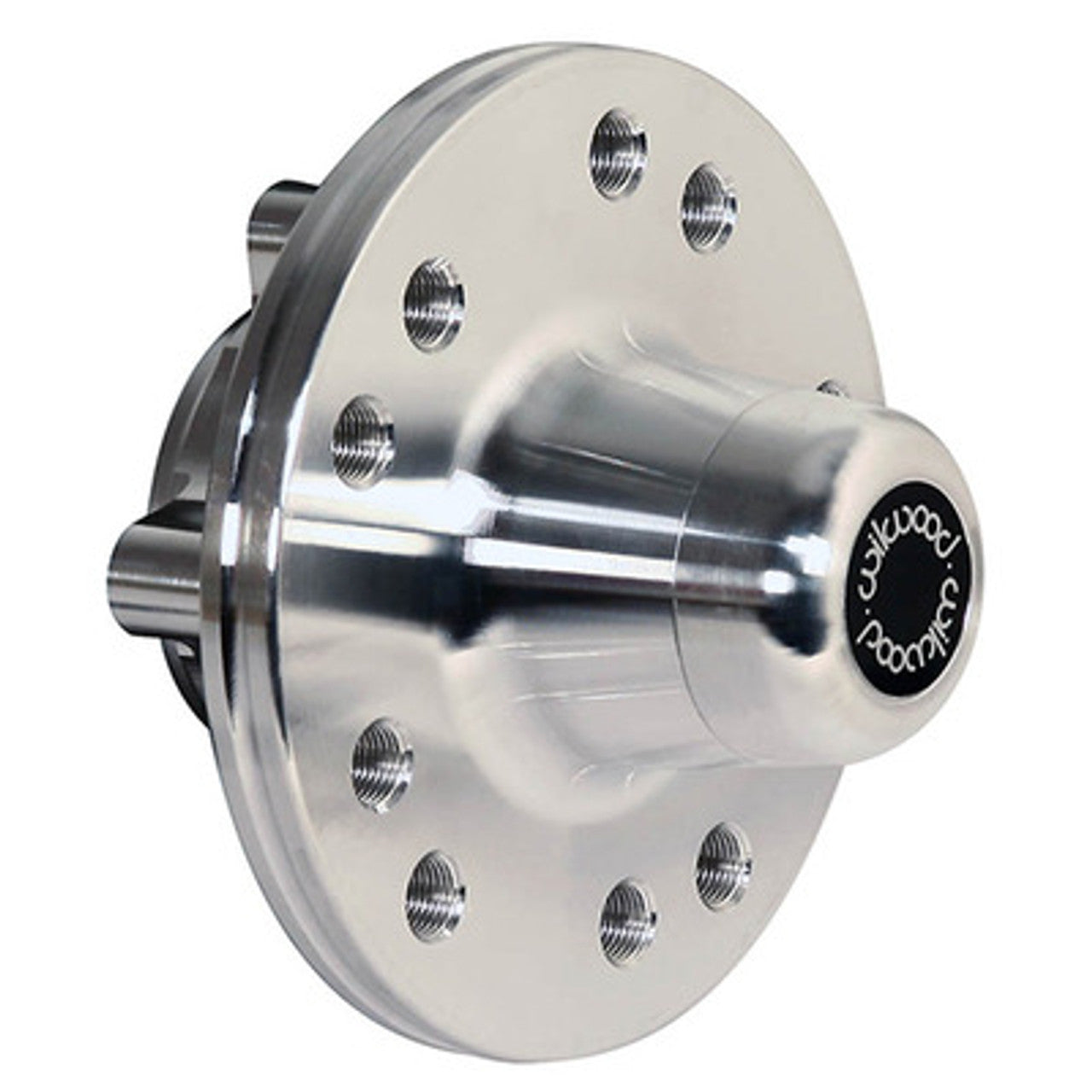

Wilwood Wheel Hub Solid Rotor 270-7285
Wilwood Wheel Hub Solid Rotor 270-7285
Regular price
$140.99 USD
Regular price
Sale price
$140.99 USD
Unit price
/
per
SKU:WIL270-7285
Out of stock
Couldn't load pickup availability
Hub - Solid Rotor Offset
Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates with solid (.25” to 35” width) rotors, but can also be used with aluminum mounting hats for custom applications. This specific hub is double drilled with a 5 x 4.50" / 5 x 4.75” wheel lug pattern. Hubs include bearing races and screw-on aluminum caps.
- 87-93 Mustang
- Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub
- Part Number: 270-7285
| Material & Finish | |
|---|---|
| Material | Aluminum |
| Finish | Bare |
| Weight (lbs) | 3.2 |
| UPC Number | |
| UPC | 889545069143 |
| Rotor Compatibility | |
| Rotor Mount Bolt Circle (in) | 5 x 3.88 |
| Rotor Offset Type | Solid |
| Rotor Offset Dimension (in) | 0.38 |
| Mount Type & Dimensions | |
|---|---|
| Mount Type | Direct / Adapter |
| Adapter Bolt Circle(s) 6-Bolt Type | 6 x 6.25 |
| 8-Bolt Type | 8 x 7.00 |
| Hub Bolt Circles | |
|---|---|
| Bolt Circle 1 (in) | 5 x 4.50 |
| Bolt Circle 2 (in) | 5 x 4.75 |
| Bolt Circle 3 (in) | |
| Hub Stud Diameters | |
| Stud Dia 1 (in) | 1/2-20 |
| Stud Dia 2 (in) | 1/2-20 |
| Stud Dia 3 (in) | |
Vehicle Applications
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
| Hub Dimensions (in) | |||
|---|---|---|---|
| Dim A | 1.882 | Dim N | 2.120 |
| Dim D | 2.574 | Dim P | 3.190 |
| Dim H | 1.357 | Dim Q | 0.380 |
| Dim M | 2.930 | ||
