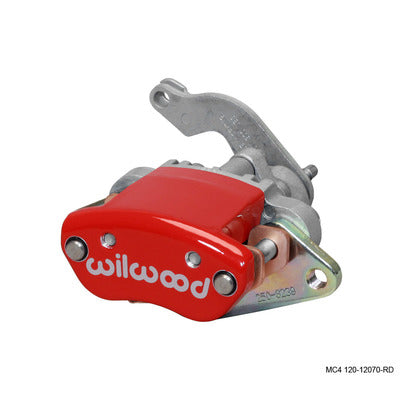

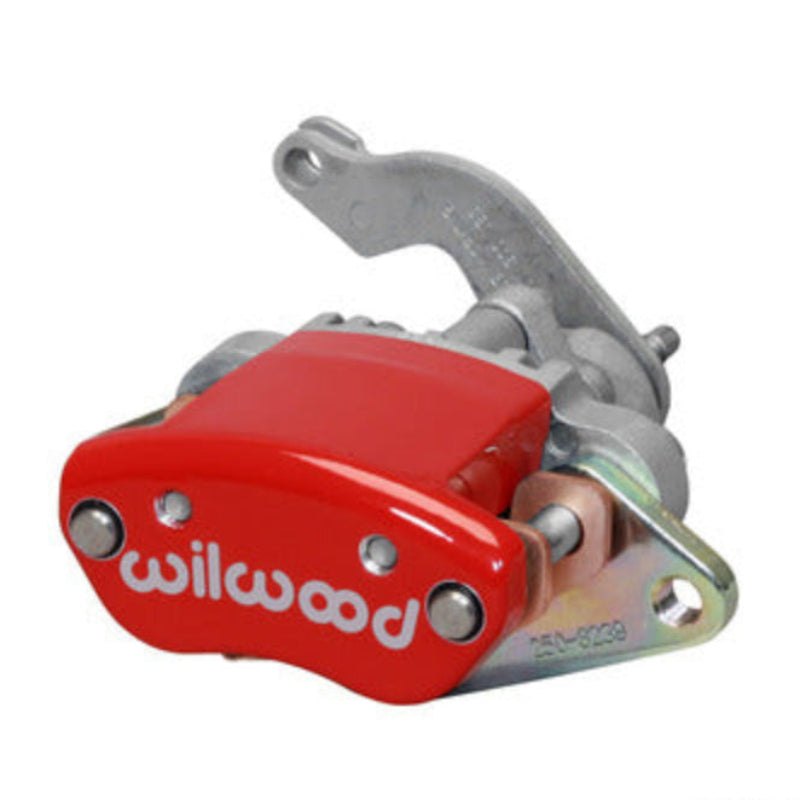

Wilwood MC4 Mechanical Parking Brake Caliper 120-12070-RD
Wilwood MC4 Mechanical Parking Brake Caliper 120-12070-RD
SKU:WIL120-12070-RD
Out of stock
Couldn't load pickup availability
Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 pounds (2.95 without pads). Supplied with each caliper are Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.
| Pistons | |
|---|---|
| Piston Count | 1 |
| Piston Area (in²) | 1.11 |
| Piston Type | Aluminum |
| Dust Boot | Yes |
| Rotor Dimensions | |
| Rotor Width (in) | 0.81 |
| Rotor Diameter(in) | 12.88 |
| Pad Dimensions | |
| Pad Area (in²) | 1.7 |
| Pad Volume (in³) | 0.26 |
| Duty Rating & Material | |
| Material | Cast Aluminium |
| Weight (lbs) | 3.3 |
| Colors & Finish | |
| Color | Red |
| Finish | Red Powder Coat |
Mounting
| Mounting | |
|---|---|
| Mount Center (inch) | 4.75 |
| Mount Position | |
| Mount Side | Left Hand |
| Mount Type | Floating |
