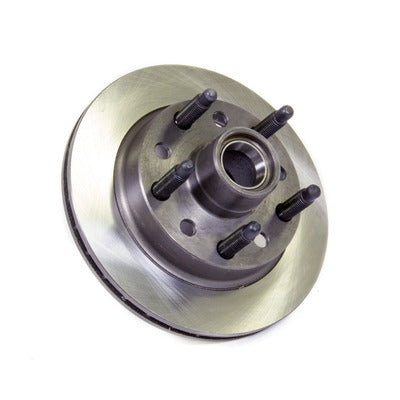

Wilwood Hub/Rotor Hybrid Pinto / Mustang II 5x5in BC Long

Wilwood’s OEM Replacement Racing Rotors for Modifieds: Wilwood Engineering is proud to introduce our OEM-Replacement line of racing rotors to the industry. These rotors were designed utilizing the latest developments in iron formulation technology using our proprietary blend ferrous alloy to bring you the strongest, lightweight, most dependable rotor available in the market place. The rotors are new castings, not reworked parts and our tolerances are held to the high standards you have come to expect from Wilwood Engineering. Ford Hybrid rotors come standard with races and 5/8” coarse wheel studs installed in the 5 on 5 bolt pattern. Standard rotors come with 2.14" long studs. LS rotors come with an increased length, 3.14" long wheel stud to simplify wheel spacing. The Ford Hybrid version is 10.15” diameter by .810” thick rotor that fits the 1974-1980 Pinto spindles. Bearing and hardware kits for Hybrid rotor is available under part no. 370-9545. Bearing kits include: inner bearing, outer bearing, dust cap, spindle nut, washer, cotter pin, and seal.

• Hub/Rotor Hybrid Pinto / Mustang II 5x5in BC Long
• Hybrid Ford Modified rotor
• Suitable Applications:  Dirt and Asphalt Racing
• Long studs
• MPN: 160-9240LS

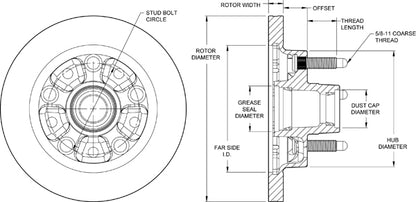

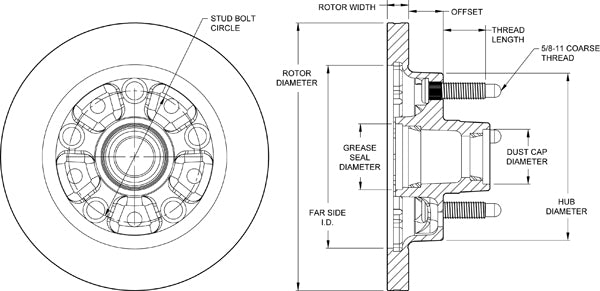

Additional Dimensions
