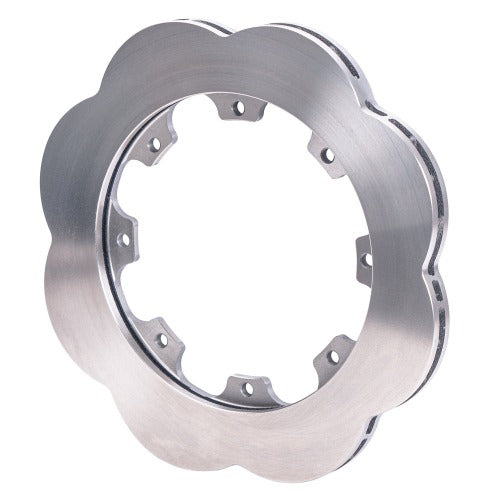

Wilwood HD 36 Curved Vane Scalloped Rotor 160-16869
Wilwood HD 36 Curved Vane Scalloped Rotor 160-16869
Regular price
$166.47 USD
Regular price
Sale price
$166.47 USD
Unit price
/
per
SKU:WIL160-16869
Inventory: 2 in stock
Couldn't load pickup availability
Wilwood's HD 36 Scalloped Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HD Series preparation includes full detail machining and smooth pad contact faces without slots.
- Premium grade, Spec-37 Heavy Wall Castings
- Part Number: 160-16869
| Width (in) | 0.81 |
| Diameter (in) | 11.75 |
| Mount Side | R/H |
| Rotor Design | |
|---|---|
| Material | Spec-37 Iron |
| Vane Count | 36 CV |
| Weight(Lbs) | 8.65 |
| Rotor Style & Finish | |
| Type | HD Scalloped |
| Style | Plain Face |
| Surface Finish | Plain |
| Rotor Upgrades | |
| Bedded | No |
| Balanced | No |
| UPC Number | |
| UPC | 889545106138 |

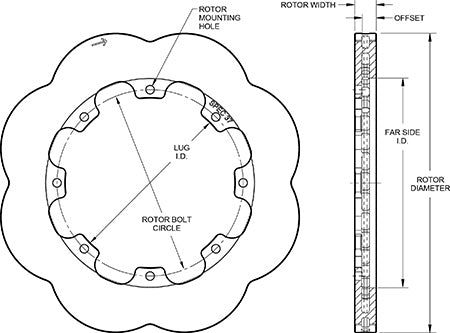

Additional Rotor Dimensions
| Rotor Bolt Circle (in) | 8 x 7.00 |
| Rotor Mount Hole Size (in) | 0.326 |
| Lug ID / Registration (in) | 6.38 |
| Far Side Inside Diameter (in) | 7.87 |
