Wilwood
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit 140-12278-D
Wilwood Forged Narrow Superlite 6R Big Brake Front Brake Kit 140-12278-D
SKU:WIL140-12278-D
Out of stock
Couldn't load pickup availability

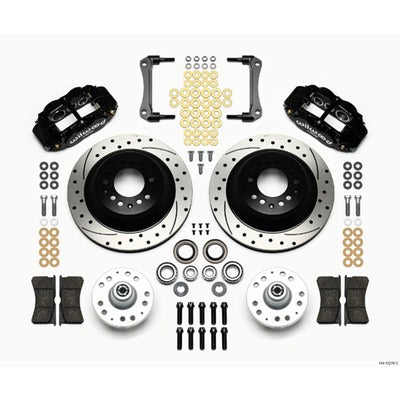

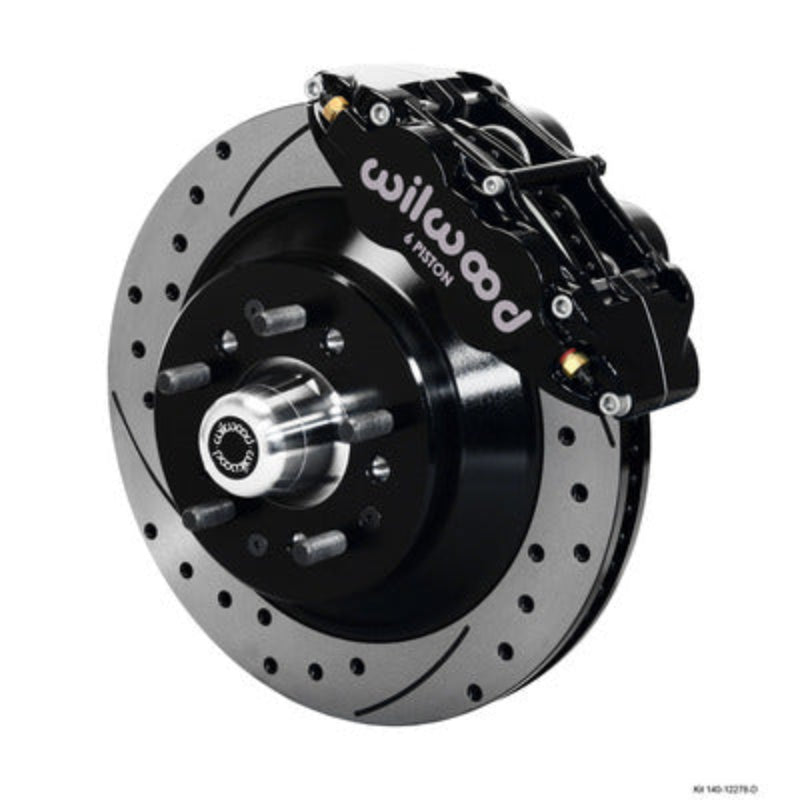

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1pc Rotor)
FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Kit Summary
| Kit Summary | |
|---|---|
| OE Hub Offset: | +.13 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd: | 17 |
Attributes
| Brand | Wilwood |
| Part Number | 140-12278-D |
|
Product Line
|
Forged Narrow Superlite 6R
|
|
Front/Rear
|
Front
|
|
Inboard/Outboard
|
Outboard
|
|
Hub Included
|
Yes
|
|
Hub Offset
|
0.13 in
|
|
Rotor/Hat Construction
|
1 Piece
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
12.88 in
|
|
Rotor Thickness
|
1.1 in
|
|
Drilled Rotor
|
Yes
|
|
Slotted Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Black
|
|
Rotor Finish
|
Paint
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
6
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Black
|
|
Caliper Finish
|
Powder Coat
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
Yes
|
|
Wheel Stud Thread
|
1/2-20 in
|
|
Wheel Stud Length
|
2.00 in
|
|
Brake Hoses Included
|
No
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
17 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in | 5 x 4.75 in
|
|
Quantity
|
Kit
|
