Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11396-D

Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11396-D

$1,196.93 USD
$1,196.93 USD
Sale Sold out
Shipping Policy

WIL140-11396-D

Inventory: 2 in stock

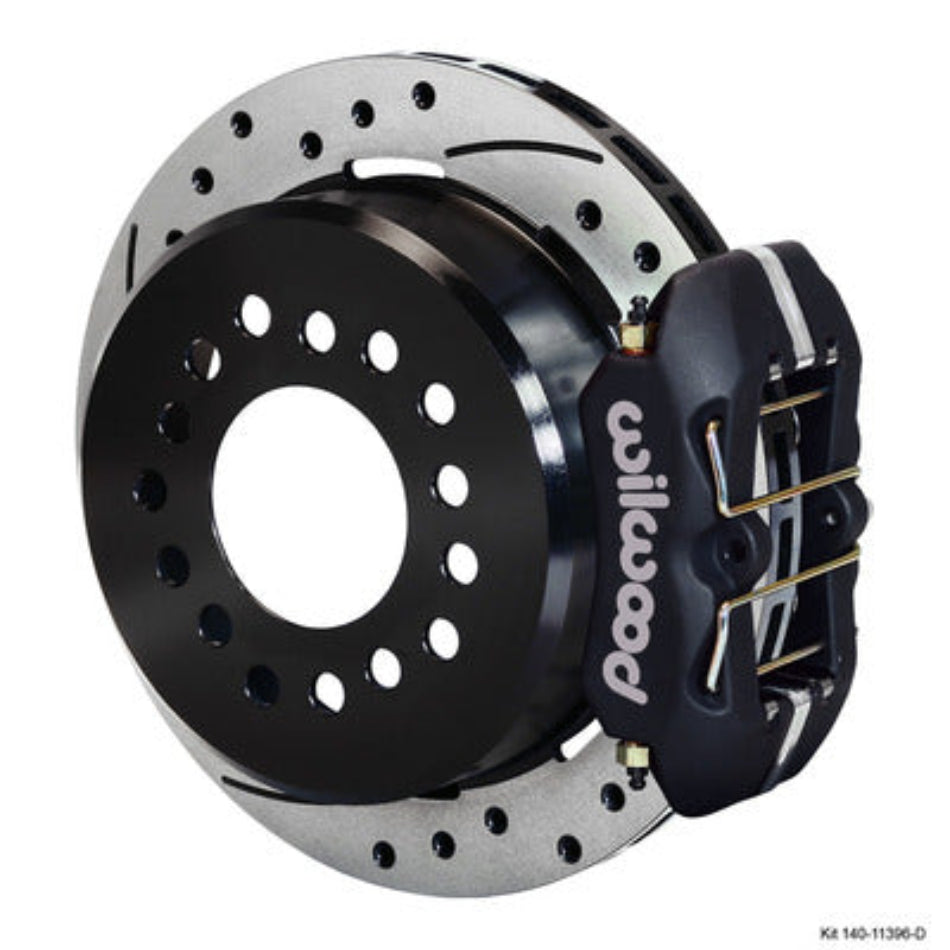

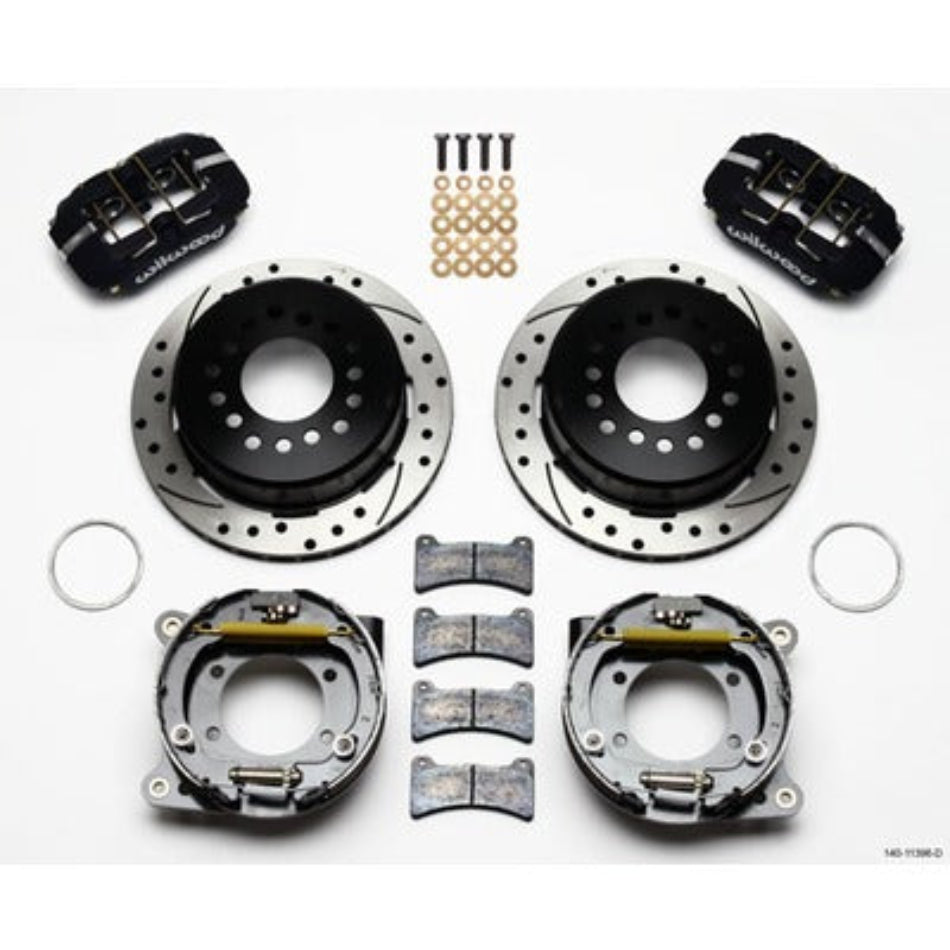

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Brand Wilwood
Part Number 140-11396-D
Product Line
Dynapro Low-Profile
Front/Rear
Rear
Inboard/Outboard
Outboard
Axle Offset
2.50 in
Rotor/Hat Construction
1 Piece
Rotor Included
Yes
Rotor Diameter
11 in
Rotor Thickness
0.81 in
Drilled Rotor
Yes
Slotted Rotor
Yes
Vented/Solid Rotor
Vented
Rotor Material
Iron
Rotor Color
Black
Rotor Finish
Paint
Caliper Included
Yes
Caliper Piston Quantity
4
Caliper Material
Aluminum
Caliper Color
Black
Caliper Finish
Anodized
Brake Caliper Brackets Included
Yes
Brake Caliper Bracket Material
Aluminum
Brake Caliper Bracket Color
Black
Brake Caliper Bracket Finish
Paint
Brake Pads Included
Yes
Brake Pad Compound
BP-10
Wheel Studs Included
No
Parking Brake
Yes
Parking Brake Style
Internal Drum
Parking Break Cable
No
Brake Hoses Included
No
Hardware Included
Yes
Minimum Wheel Diameter
14 in
Wheel Bolt Pattern
5 x 4.5 in | 5 x 4.75 in | 5 x 5 in
Quantity
Kit

BRAKE KIT: Forged Dynapro Low-Profile Rear Parking Brake Kit
REAR END: 8.8 Ford - Rear Kit
AXLE OFFSET: 2.50

  • Ford Mustang 1983 3.8 Liter w/o Handling Package
  • Ford Mustang 1979 4 Cyl & 6 Cyl, except Turbo
  • Ford Mustang 1979 4 Cyl Turbo
  • Ford Mustang 1982-1983 4 Cyl Turbo Only
  • Ford Mustang 1987-1992 4 Cylinder, 2.3 Liter
  • Ford Mustang 1993 4 Cylinder, 2.3 Liter, Disc Rear
  • Ford Mustang 1993 4 Cylinder, 2.3 Liter, Drum Rear
  • Ford Mustang 1984-1986 4 Lug Wheels, 3.8 Liter w/o Handling Package
  • Ford Mustang 1984-1986 4 Lug Wheels, except 3.8 Liter
  • Ford Mustang 1979 8 Cylinder
  • Ford Mustang 1980 All
  • Ford Mustang 1981 All, thru 10/21/80
  • Ford Mustang 1981 All, 10/22/80 thru 11/13/80
  • Ford Mustang 1982 All, except 4 Cyl Turbo
  • Ford Mustang 1981 All, from 11/14/80
  • Ford Mustang 1983 Early, except 4 Cyl Turbo
  • Ford Mustang 1983 Late, except 4 Cyl Turbo or 3.8 liter
  • Ford Mustang 1984-1986 SVO w/ 5 Lug Wheels, Disc Brake Rear
  • Ford Mustang 1987-1993 V-8 Spindle Only, 5 lug
  • Ford Mustang 1993 V-8 Spindle Only, 5 lug, Disc Brake Rear
  • Ford Mustang 1982 w/ Optional 10" Rear Brake
  • Ford Mustang 1983 w/ Optional 10" Rear Brake, except 4 Cyl Turbo
  • Ford Mustang II 1974-1978 All
  • Ford Pinto 1974-1980 All
  • Ford Pinto 1973 Disc Brake Front Spindle
  • Ford Pinto 1971-1972 Disc Brake Spindle
  • Ford Pinto 1971-1973 Drum Brake Front Spindle
  • Ford Thunderbird 1987-1988 Turbo Coupe, 5 lug
  • Mercury Bobcat 1975-1980 All

Notes:

  1. Brake Kits are designed to fit OE Factory Spindles. Contact Wilwood if you are not using a factory spindle.
  2. Brake Kit may fit other vehicles, contact us or call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
