Wilwood FNSL6R Front Brake Kit 140-12278-DR for 1970-78 GM “F”/“X”/“G” Body
Wilwood FNSL6R Front Brake Kit 140-12278-DR for 1970-78 GM “F”/“X”/“G” Body
Regular price
$1,741.84 USD
Regular price
Sale price
$1,741.84 USD
Unit price
per
SKU:WIL140-12278-DR
Inventory: 1 in stock
Couldn't load pickup availability

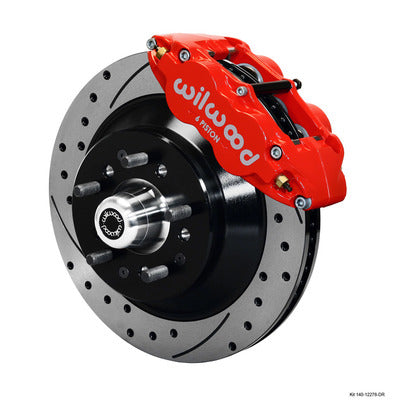

Wilwood FNSL6R Front Brake Kit 140-12278-DR for 1970-78 GM “F”/“X”/“G” Body

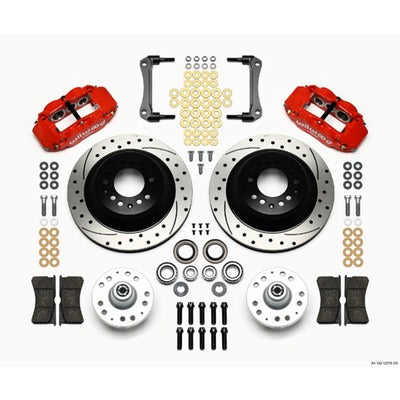

Front brake kit utilizes 6-piston calipers and 12.88" diameter SRP rotors to deliver dramatically improved braking to 1970-78 GM "F" body, 1975-78 "X" body, and 1973-77 "G" body with disc brake spindles. Includes red powder-coated FNSL6R calipers, SRP drilled and slotted rotors, billet aluminum hubs, caliper brackets, pads, and necessary hardware.
Note: Kit may fit 17" wheels; please refer to the wheel clearance diagram at the bottom of the Specifications tab.
| Brand | Wilwood |
| Part Number | 140-12278-DR |
|
Product Line
|
Forged Narrow Superlite 6R
|
|
Front/Rear
|
Front
|
|
Inboard/Outboard
|
Outboard
|
|
Hub Included
|
Yes
|
|
Hub Offset
|
0.13 in
|
|
Rotor/Hat Construction
|
1 Piece
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
12.88 in
|
|
Rotor Thickness
|
1.1 in
|
|
Drilled Rotor
|
Yes
|
|
Slotted Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Black
|
|
Rotor Finish
|
Paint
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
6
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Red
|
|
Caliper Finish
|
Powder Coat
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
Yes
|
|
Wheel Stud Thread
|
1/2-20 in
|
|
Wheel Stud Length
|
2.00 in
|
|
Brake Hoses Included
|
No
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
17 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in | 5 x 4.75 in
|
|
Quantity
|
Kit
|
Wheel Clearance Diagram for Wilwood 140-12278
