Wilwood

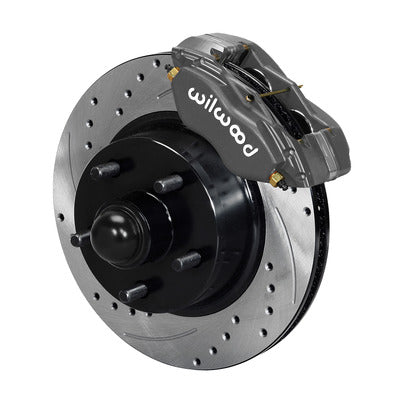

Wilwood Classic Series Dynalite Front Brake Kit for 65- 69 Mustang
Wilwood Classic Series Dynalite Front Brake Kit for 65- 69 Mustang
SKU:WIL140-13476-D
Out of stock
Couldn't load pickup availability

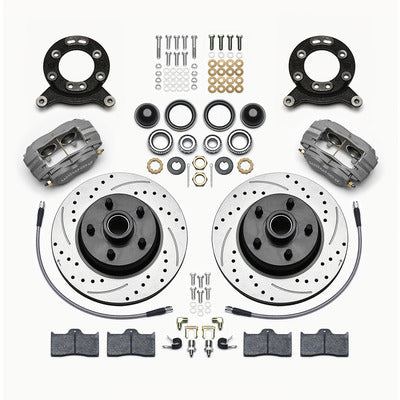

The Wilwood Classic Series Dynalite Front Brake Kit is designed to fit many OEM drum or disc spindles, these kits include FDU or FDL-M 4-piston aluminum calipers and 11" to 11"-7/8" 1-piece rotors. The time-proven FDL-M4 caliper provides the most wheel clearance of any 4-piston caliper in its size class, and the one-piece cast iron rotors with integrated hubs allow for easy installation and excellent wear resistance. Suitable for daily drivers or show cars, this kit will fit the intended application with no modifications, and will clear most 14"-15" OEM or aftermarket disc brake wheels. Calipers work with manual or power-boosted master cylinders, and includes calipers, pads, rotors, brackets, hardware, and detailed installation instructions.
- Brake System
- Classic Series
- Dynalite
- Front
- 4 Piston Caliper
- 11.30 in Drilled Steel Rotor
- Offset
- Aluminum, Gray
- Application: 1965-66 V8 Mustangs and all 1967-69 Mustangs
- Kit
- MPN: 140-13476-D
Note: Kit will not work with most OEM drum brake wheels.
| Brand | Wilwood |
| Part Number | 140-13476-D |
|
Product Line
|
Classic Series Dynalite
|
|
Front/Rear
|
Front
|
|
Inboard/Outboard
|
Outboard
|
|
Rotor/Hat Construction
|
1 Piece
|
|
Rotor Hat Offset
|
1.71 in
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
11.3 in
|
|
Rotor Thickness
|
0.94 in
|
|
Drilled Rotor
|
Yes
|
|
Slotted Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Black
|
|
Rotor Finish
|
Paint
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
4
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Grey
|
|
Caliper Finish
|
Anodized
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
No
|
|
Wheel Bearings Included
|
Yes
|
|
Brake Hoses Included
|
Yes
|
|
Brake Hose Material
|
Braided Stainless
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
14 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in
|
|
Quantity
|
Kit
|
Wheel Clearance Diagram for Wilwood 13476-D
