Wilwood
Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389
Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11389
SKU:WIL140-11389
Inventory: 2 in stock
Couldn't load pickup availability

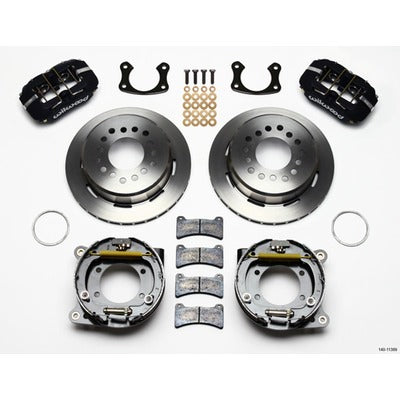

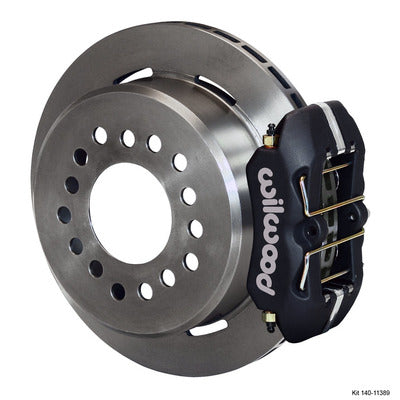

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
- Brake System
- Rear Disc Brake Kit Big Ford
- Dynapro Low-Profile
- Rear
- 4 Piston Caliper
- 11.000 in Solid Iron Rotor
- Parking Brake / Offset Hat
- Aluminum
- Black
- Big Ford
- Kit
- MPN: 140-11389
| Kit Summary | |
|---|---|
| Rear End Axle: | Big Ford New Style |
| Axle Offset: | 2.50 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Minimum Wheel Diameter Required*: | 14 |
|
Brand
|
Wilwood
|
|
Part Number
|
140-11389
|
|
Product Line
|
Dynapro Low-Profile
|
|
Front/Rear
|
Rear
|
|
Inboard/Outboard
|
Outboard
|
|
Axle Offset
|
2.50 in
|
|
Rotor/Hat Construction
|
1 Piece
|
|
Rotor Hat Offset
|
1.91 in
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
11 in
|
|
Rotor Thickness
|
0.81 in
|
|
Plain Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Natural
|
|
Rotor Finish
|
Natural
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
4
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Black
|
|
Caliper Finish
|
Anodized
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
No
|
|
Parking Brake
|
Yes
|
|
Parking Brake Style
|
Internal Drum
|
|
Parking Break Cable
|
No
|
|
Brake Hoses Included
|
No
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
14 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in | 5 x 4.75 in | 5 x 5 in
|
|
Quantity
|
Kit
|
Brake Kit: Forged Dynapro Low-Profile Rear Parking Brake Kit
Rear End: Big Ford New Style - Rear Kit
Axle Offset: 2.50
