Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11387
Wilwood Forged Dynapro Low-Profile Rear Parking Brake Kit 140-11387
SKU:WIL140-11387
Inventory: 1 in stock
Couldn't load pickup availability

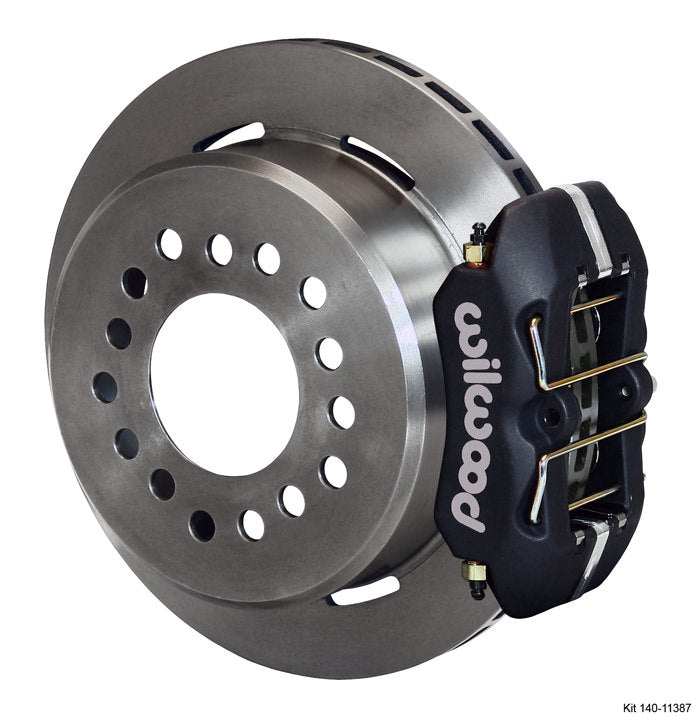

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile 4-piston calipers, 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

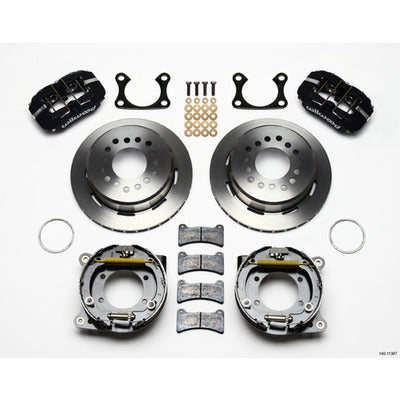

This is the solution for enthusiasts that require a rear disc brake kit with extra clearance for 14" to 15" wheels and a parking brake. Kits feature forged billet Dynapro 4-piston calipers with a special, low profile design. Each kit is sold complete with black anodized calipers, 11.00" diameter vented and drilled rotors, brake hats, caliper brackets, brake pads and necessary hardware.
- Big Ford Rear Axle Disc Brake Kit w/Parking Brake
- Brake System
- Dynapro Low Profile
- Black Calipers
- 11.00-inch Rotors
- Undrilled Rotors
- Rear
- 4 Piston
- 11.000 in Plain Iron Rotor
- Offset
- Parking Brake
- Black Anodize
- Big Ford
- Kit
- MPN: 140-11387
| Kit Summary | |
|---|---|
| Rear End Axle: | Big Ford |
| Axle Offset: | 2.36 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req'd*: | 14 |

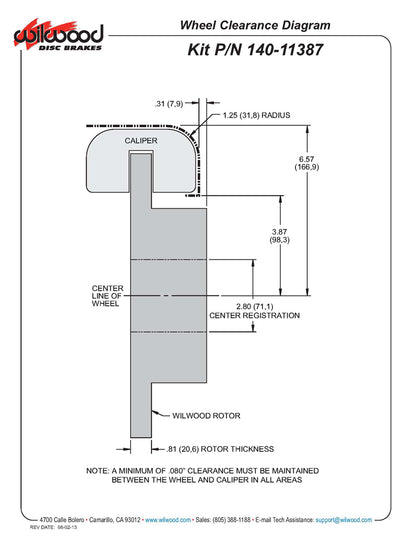

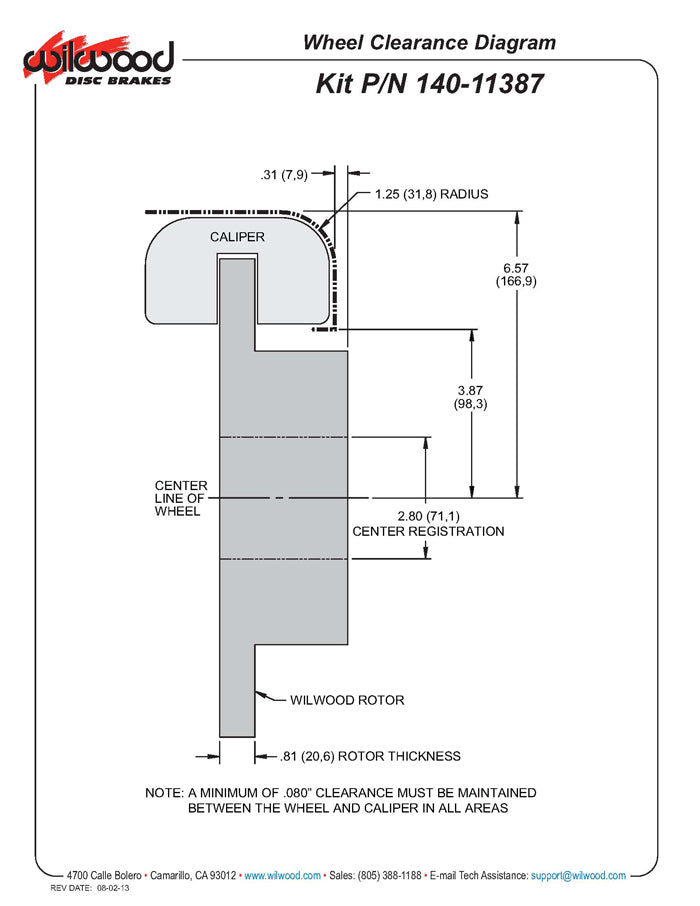

| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| Brand | Wilwood |
| Part Number | 140-11387 |
|
Product Line
|
Dynapro Low-Profile
|
|
Front/Rear
|
Rear
|
|
Inboard/Outboard
|
Outboard
|
|
Axle Offset
|
2.36 in
|
|
Rotor/Hat Construction
|
1 Piece
|
|
Rotor Hat Offset
|
1.91 in
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
11 in
|
|
Rotor Thickness
|
0.81 in
|
|
Plain Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Natural
|
|
Rotor Finish
|
Natural
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
4
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Black
|
|
Caliper Finish
|
Anodized
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
No
|
|
Parking Brake
|
Yes
|
|
Parking Brake Style
|
Internal Drum
|
|
Parking Break Cable
|
No
|
|
Brake Hoses Included
|
No
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
14 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in | 5 x 4.75 in | 5 x 5 in
|
|
Quantity
|
Kit
|
