Wilwood
Wilwood Front Disc Brake Kit 140-10510
Wilwood Front Disc Brake Kit 140-10510
Regular price
$1,302.73 USD
Regular price
Sale price
$1,302.73 USD
Unit price
/
per
SKU:WIL140-10510
Inventory: 1 in stock
Couldn't load pickup availability

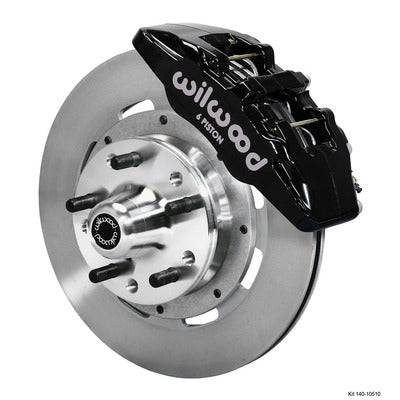

Wilwood Dynapro 6 Big Brake Front Brake Kit

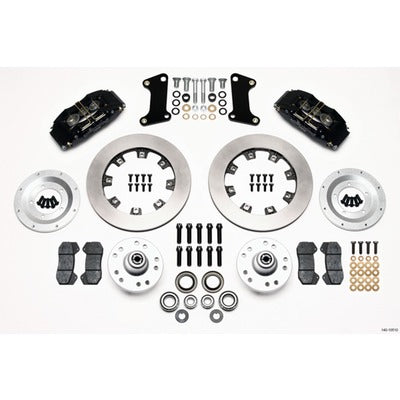

Rigid, forged billet-6-piston calipers are teamed with 12.19" diameter rotors to deliver exceptional braking quality. Front disc brake kits are sold complete with calipers, rotors, brake pads, hubs, wheel bearings, and necessary hardware.
- Brake System
- Forged Dynapro 6 Big Brake
- Front
- 6 Piston Caliper
- 12.190 in Vented Iron Rotor
- Aluminum
- Black Powder Coat
- GM 1963-74
- 1967-69 Chevy Camaro/Pontiac Firebird
- Kit
- MPN: 140-10510
This Brake Kit is compatible with the following vehicle makes: Buick, Chevrolet, GMC, Heidts, Oldsmobile, Pontiac and Ridetech.
| Brand | Wilwood |
| Part Number | 140-10510 |
|
Product Line
|
Forged Dynapro 6 Big Brake
|
|
Front/Rear
|
Front
|
|
Inboard/Outboard
|
Outboard
|
|
Hub Included
|
Yes
|
|
Hub Offset
|
0.19 in
|
|
Rotor/Hat Construction
|
2 Piece
|
|
Rotor Hat Included
|
Yes
|
|
Rotor Hat Color
|
Natural
|
|
Rotor Hat Finish
|
Natural
|
|
Rotor Hat Material
|
Aluminum
|
|
Rotor Included
|
Yes
|
|
Rotor Diameter
|
12.19 in
|
|
Rotor Thickness
|
0.81 in
|
|
Plain Rotor
|
Yes
|
|
Vented/Solid Rotor
|
Vented
|
|
Rotor Material
|
Iron
|
|
Rotor Color
|
Natural
|
|
Rotor Finish
|
Natural
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
6
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Black
|
|
Caliper Finish
|
Powder Coat
|
|
Brake Caliper Brackets Included
|
Yes
|
|
Brake Caliper Bracket Material
|
Aluminum
|
|
Brake Caliper Bracket Color
|
Black
|
|
Brake Caliper Bracket Finish
|
Paint
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
BP-10
|
|
Wheel Studs Included
|
Yes
|
|
Wheel Stud Thread
|
1/2-20 in
|
|
Wheel Stud Length
|
1.75 in
|
|
Wheel Bearings Included
|
Yes
|
|
Brake Hoses Included
|
No
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
15 in
|
|
Wheel Bolt Pattern
|
5 x 4.5 in | 5 x 4.75 in
|
|
Quantity
|
Kit
|
