• Wilwood Rotor Spec-37 8bt 11.75 x 1.00 16 Vane LH
  • Wilwood Rotor Spec-37 160-15878

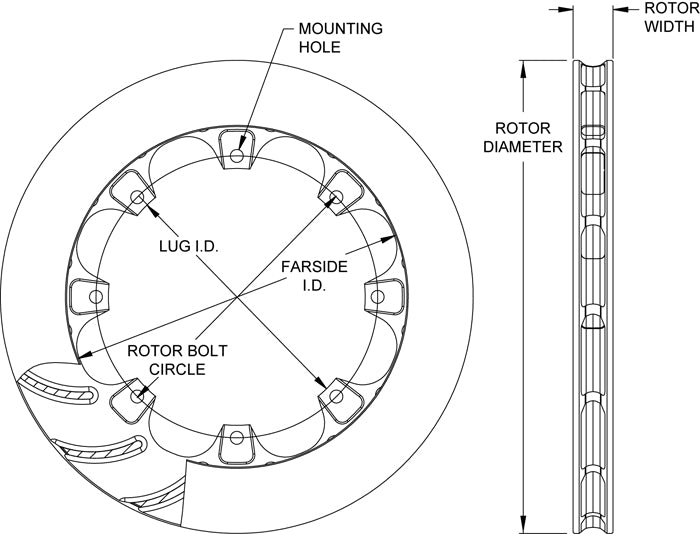

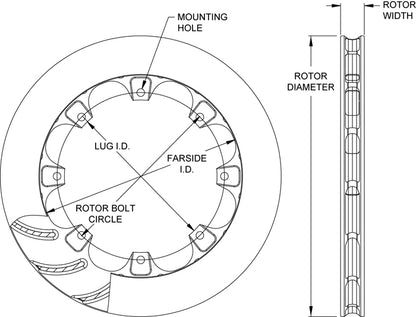

  • Wilwood Rotor Spec-37 160-15878 Diagram
1 3

Wilwood

Wilwood Rotor Spec-37 8bt 11.75 x 1.00 16 Vane LH

Wilwood Rotor Spec-37 8bt 11.75 x 1.00 16 Vane LH

$126.82 USD
$126.82 USD
Sale Sold out
Shipping Policy

WIL160-15878

Inventory: 4 in stock

Wilwood''s ULHD-16 Curved Vane Spec-37 rotors are manufactured from a proprietary iron alloy developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear. The formulation for this alloy is a derivative of technology and materials that were significant in the development of the extreme duty military spec rotors that are manufactured by Wilwood. Our HP Series preparation includes full detail machining and smooth pad contact faces without slots.

  • Premium grade, Proprietary Iron Casting
  • Suitable for moderate temperature Dirt and Asphalt racing
  • Brake Rotor - ULHD - Driver Side
  • 11.750 in OD - 0.99 in Thick - 8 x 7.00 in Bolt Pattern
  • Iron, Natural
  • Sold as each
  • MPN: 160-15878

Rotor Dimensions
Width (in) 0.99
Diameter (in) 11.75
Mount Side L/H
Rotor Design
Material Spec-37 Iron
Vane Count 16 CV
Weight (lbs) 7.10
Rotor Style & Finish
Type HD
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Bedded No
Balanced No

Additional Rotor Dimensions

Rotor Bolt Circle (in) 8 x 7.00
Rotor Mount Hole Size (in) 0.326
Lug ID / Registration (in) 6.38
Far Side Inside Diameter (in) 8.46
