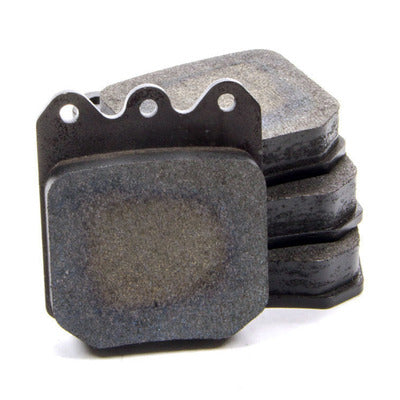

Wilwood PolymatriX Brake Pads BP-30 ("Smart Pads")
Wilwood PolymatriX Brake Pads BP-30 ("Smart Pads")
Regular price
$106.99 USD
Regular price
Sale price
$106.99 USD
Unit price
/
per
SKU:WIL150-14770K
Out of stock
Couldn't load pickup availability
Wilwood has many types of brake pad components designed specifically for racing. It is important to analyze braking requirements and select the proper pads. Experimentation is often necessary to determine the correct compound for a particular application.
PolymatriX BP-30 ("Smart Pads") Compound
Wilwood PolymatriX BP-30 Compound is a long-wearing pad in the middle temperature ranges with moderate wear in sustained high-heat conditions. Works well on hard-braking Dirt Late Models, Dirt Modifieds and as a proven workhorse on Asphalt Modifieds, Modifieds and Sportsman.
- Brake Pads
- BP-30 Compound
- Very High Friction and High Temperature
- Heat Range: Medium to X-High
- Torque: Light to Medium
- Dynalite Single Caliper
- Caliper Type: Billet Dynalite Single
- Kit
|
Brand
|
Wilwood
|
|
Part Number
|
150-14770K
|
|
Product Line
|
High-Temperature Racing Pads
|
|
Compound
|
BP-30
|
|
Hawk Pad Shape
|
HB104
|
|
Wilwood Pad Shape
|
6812
|
|
Performance Friction Pad Shape
|
7757/12
|
|
Maximum Operating Temperature
|
1300+ Degrees Fahrenheit
|
|
Cold Torque
|
Medium
|
|
Hot Torque
|
High
|
|
Wear Rate
|
Medium-Low
|
|

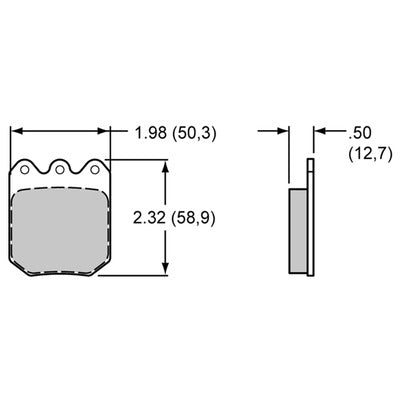

Pad Width Inner (in)
|
1.98 in
|
|
Pad Width Inner (mm)
|
50.3 mm
|
|
Pad Height Inner (in)
|
2.32 in
|
|
Pad Height Inner (mm)
|
58.9 mm
|
|
Overall Thickness Inner (in)
|
0.5 in
|
|
Overall Thickness Inner (mm)
|
12.7 mm
|
|
Pad Width Outer (in)
|
1.98 in
|
|
Pad Width Outer (mm)
|
50.3 mm
|
|
Pad Height Outer (in)
|
2.32 in
|
|
Pad Height Outer (mm)
|
58.9 mm
|
|
Overall Thickness Outer (in)
|
0.5 in
|
|
Overall Thickness Outer (mm)
|
12.7 mm
|
|
Hardware Included
|
No
|
|
Number of Pads Included
|
4
|
|
Universal
|
Yes
|
|
