Wilwood

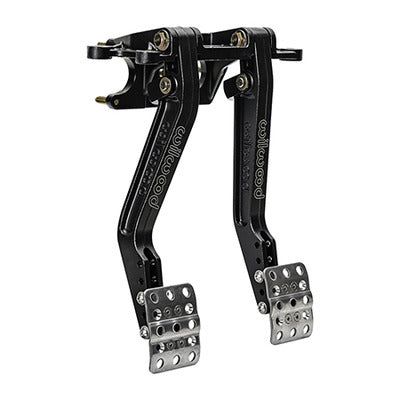

Wilwood Swing-Mount Brake and Offset Clutch Pedal Assembly 340-16833
Wilwood Swing-Mount Brake and Offset Clutch Pedal Assembly 340-16833
Regular price
$298.80 USD
Regular price
Sale price
$298.80 USD
Unit price
/
per
SKU:WIL340-16833
Inventory: 1 in stock
Couldn't load pickup availability
Forward swing-mount assembly utilizes a pedal head that adjusts to provide a 5.50, 5.88, or 6.25:1 ratio for more or less pedal effort. Pedal pads may be laterally adjusted from 5"-7" on center for driver preference. Clutch pedal accepts a 2.25" vertical mount flange single outlet master cylinder, while the brake requires a 3.25" horizontal mount flange tandem master cylinder, purchased separately.
| Brand | Wilwood |
| Part Number | 340-16833 |
|
Clutch
|
Yes
|
|
Brake
|
Yes
|
|
Mounting Location
|
Firewall
|
|
Forward / Reverse Swing
|
Forward
|
|
Adjustable
|
Yes
|
|
Ratio Minmum
|
5.5:1
|
|
Ratio Maximum
|
6.25:1
|
|
Pedal Length Minimum
|
10.97 in
|
|
Pedal Length Maximum
|
12.05 in
|
|
Offset Pedal
|
Yes
|
|
Pad A Shape
|
Square
|
|
Pad Material
|
Aluminum
|
|
Pad Color
|
Natural
|
|
Pad Finish
|
Anodized
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Paint
|
|
Quantity
|
Kit
|
