Wilwood D8-4 Front Replacement Caliper Kit 140-10789-BK
Wilwood D8-4 Front Replacement Caliper Kit 140-10789-BK
SKU:WIL140-10789-BK
Inventory: 1 in stock
Couldn't load pickup availability

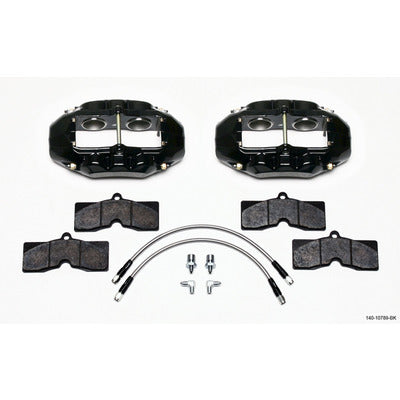

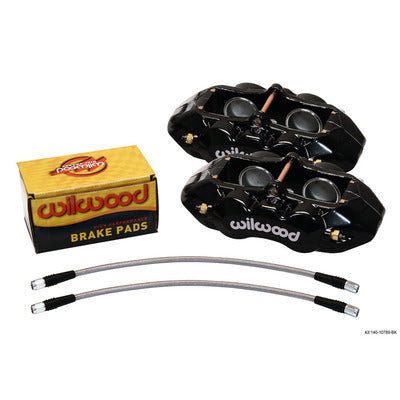

D8-4 Front Replacement Caliper Kit
D8-4 Front calipers are a direct bolt-on replacements for the OE calipers on all 1965-82 Corvettes. Type III hard anodized forged billet aluminum bodies, stainless steel pistons, and high-temperature seals put an end to the rust, bore pitting and seal failures that plague the OE caliper design. D8-6 calipers provide low-maintenance performance, a huge weight savings, high temperature reliability, and the added benefit of six piston pad clamping power. D8-4 calipers mount in the stock location over stock rotors, use the original style D8 brake pads, and fit snugly inside most ’67 or newer production wheels. Some wheels, including the 1965-66 OE “JK” code steel wheels and a few aftermarket replica alloy wheels, will require a 3/16” or wider wheel spacer for clearance. Kits contain DOT compliant stainless braided brake lines and high friction Promatrix brake pads.
Fits:
- Chevrolet Corvette 1965-1967 C-2
- Chevrolet Corvette 1968 C-3
- Chevrolet Corvette 1969-1982 C-3
Notes:
- Brake Kits are designed to fit OE Factory Spindles. Contact Wilwood if you are not using a factory spindle.
- Brake Kit may fit other vehicles. Contact or call Wilwood Support for additional information.
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | |
| Min Wheel Diameter Req'd*: | 15 |
|
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.
|
|
Attributes
| Brand | Wilwood |
| Part Number | 140-10789-BK |
|
Product Line
|
D8-4
|
|
Front/Rear
|
Front
|
|
Inboard/Outboard
|
Outboard
|
|
Caliper Included
|
Yes
|
|
Caliper Piston Quantity
|
4
|
|
Caliper Material
|
Aluminum
|
|
Caliper Color
|
Black
|
|
Caliper Finish
|
Powder Coat
|
|
Brake Pads Included
|
Yes
|
|
Brake Pad Compound
|
ProMatrix
|
|
Brake Hoses Included
|
Yes
|
|
Brake Hose Material
|
Braided Stainless
|
|
Hardware Included
|
Yes
|
|
Minimum Wheel Diameter
|
15 in
|
|
Quantity
|
Kit
|
