Wilwood

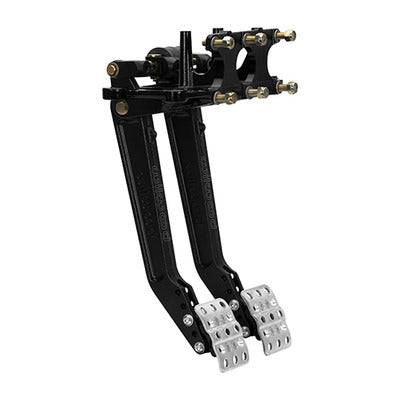

Wilwood Reverse-Swing Mount Brake and Clutch Pedal Assembly 340-16385
Wilwood Reverse-Swing Mount Brake and Clutch Pedal Assembly 340-16385
Regular price
$344.80 USD
Regular price
Sale price
$344.80 USD
Unit price
/
per
SKU:WIL340-16385
Inventory: 1 in stock
Couldn't load pickup availability
Adjustable ratio balance bar brake and clutch pedal combo, in a reverse-swing design, adjusts to offer a 5.50, 5.88, or 6.25:1 ratio for more or less pedal effort. Clutch master cylinder and (2) brake master cylinders mount to the assembly, while the adjustable balance bar provides brake bias tuning. Accepts any three Wilwood 2.25" vertical mount flange single outlet master cylinders, purchased separately.
- Reverse-Swing Mount Brake and Clutch Pedal with Balance Bar
- Pedal Assembly, Brake / Clutch
- 5.5-6.25 to 1 Ratio, 10.87-11.88 in Long
- Reverse Dash Mount
- Aluminum, Black Paint
- Universal
- Part Number: 340-16385
|
Brand
|
Wilwood
|
|
Part Number
|
340-16385
|
|
Clutch
|
Yes
|
|
Brake
|
Yes
|
|
Mounting Location
|
Dash
|
|
Forward / Reverse Swing
|
Reverse
|
|
Adjustable
|
Yes
|
|
Ratio Minmum
|
5.5:1
|
|
Ratio Maximum
|
6.25:1
|
|
Pedal Length Minimum
|
10.87 in
|
|
Pedal Length Maximum
|
11.88 in
|
|
Pad A Shape
|
Square
|
|
Pad Material
|
Aluminum
|
|
Pad Color
|
Natural
|
|
Pad Finish
|
Anodized
|
|
Balance Bar Included
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Paint
|
|
Quantity
|
Kit
|
