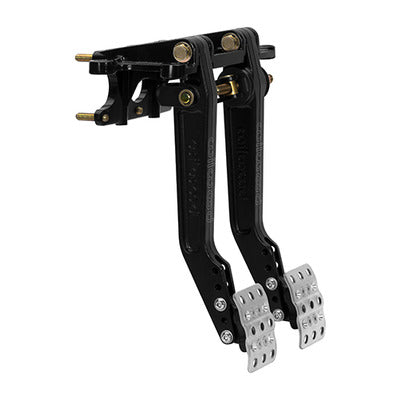

Wilwood Swing Mount Brake and Clutch Pedal 340-16382
Wilwood Swing Mount Brake and Clutch Pedal 340-16382
Regular price
$344.80 USD
Regular price
Sale price
$344.80 USD
Unit price
/
per
SKU:WIL340-16382
Inventory: 2 in stock
Couldn't load pickup availability
Adjustable ratio balance bar brake and clutch pedal combo adjusts to offer a 5.50, 5.88, or 6.25:1 ratio for more or less pedal effort. Wilwood 2.25" vertical mount flange single outlet clutch master cylinder and (2) brake master cylinders, purchased separately, mount to the assembly through the firewall.
- Swing Mount Brake and Clutch Pedal
- Pedal Pads Adjust from 3"-5" On Center
- Pedal Assembly, Brake / Clutch
- 5.5-6 to 1 Ratio, 10.97-12.05 in Long
- Forward Firewall Mount
- Aluminum, Black Paint
- Universal
- Part Number: 340-16382
|
Brand
|
Wilwood
|
|
Part Number
|
340-16382
|
|
Clutch
|
Yes
|
|
Brake
|
Yes
|
|
Mounting Location
|
Firewall
|
|
Forward / Reverse Swing
|
Forward
|
|
Adjustable
|
Yes
|
|
Ratio Minmum
|
5.5:1
|
|
Ratio Maximum
|
6.25:1
|
|
Pedal Length Minimum
|
10.97 in
|
|
Pedal Length Maximum
|
12.05 in
|
|
Pad A Shape
|
Square
|
|
Pad Material
|
Aluminum
|
|
Pad Color
|
Natural
|
|
Pad Finish
|
Anodized
|
|
Balance Bar Included
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Paint
|
|
Quantity
|
Kit
|
