Willy's Fuel Pressure Regulator Belt Drive Alcohol
WCD791 (2 in stock)Willys Carb
Regular price
$239.99
Sale

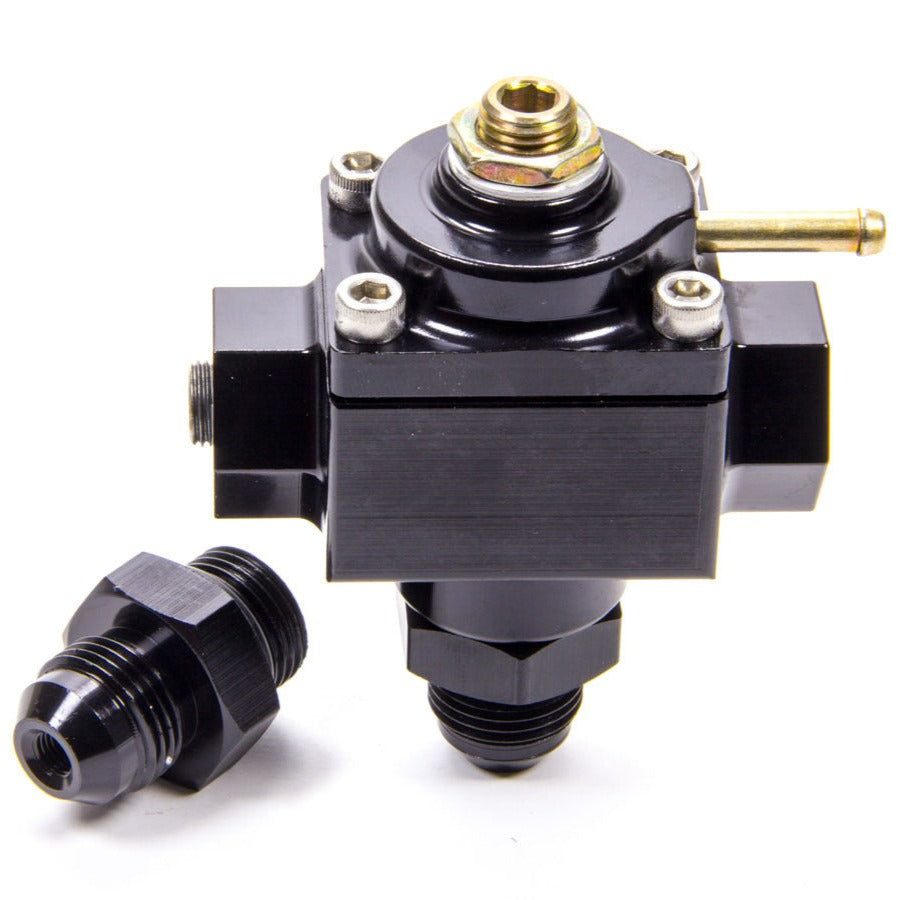

Load-Regulated Fuel Pressure Regulator
Regulator automatically adjusts fuel pressure according to manifold vacuum, preventing the carburetor from flooding and stumbling during low engine speeds. Under deceleration, when manifold vacuum is high, regulator opens and drops fuel pressure; under acceleration, manifold vacuum drops and closes regulator, raising fuel pressure as required. Adjustable from 3-5 PSI at idle and 9-10 PSI at wide open throttle. Fully CNC-machined regulator is manufactured from durable, billet aluminum and features a black anodized finish.
- Alcohol Applications Using Belt-Driven Fuel Pump
Willy's Fuel Pressure Regulator Belt Drive Alcohol - Fuel Pressure Regulator - 3 to 10 psi - In-Line - 8 AN Female O-Ring Inlet - 8 AN Female O-Ring Outlet - Aluminum - Black Anodized - Alcohol - Sold as Each - Brand: Willy's Carb - Part Number: WCD791
Specifications
|
Brand
|
Willy's Carb
|
|
Part Number
|
WCD791
|
|
Boost Referenced
|
Yes
|
|
Bypass
|
Yes
|
|
Adjustable
|
Yes
|
|
Adjustment Range Low
|
8 PSI
|
|
Adjustment Range High
|
11 PSI
|
|
Mounting Style
|
In-Line
|
|
Inlet Quantity
|
1
|
|
Inlet Size
|
8 AN
|
|
Inlet Style
|
Female
|
|
Inlet O-Ring
|
Yes
|
|
Return Port Size
|
8 AN
|
|
Return Port Style
|
Female
|
|
Return Port O-Ring
|
Yes
|
|
Gauge Port
|
Yes
|
|
Gauge Port Size
|
1/8 in NPT
|
|
Gauge Port Style
|
Female
|
|
Fittings Included
|
Yes
|
|
Fitting 1 Quantity
|
1
|
|
Fitting 1 Side A Size
|
8 AN
|
|
Fitting 1 Side A Style
|
Male
|
|
Fitting 1 Side A O-Ring
|
Yes
|
|
Fitting 1 Side B Size
|
8 AN
|
|
Fitting 1 Side B Style
|
Male
|
|
Gasoline Compatible
|
Yes
|
|
Methanol Compatible
|
Yes
|
|
E85 Compatible
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Anodized
|
|
Quantity
|
Each
|
|
Note
|
Belt Driven Fuel Pump
|
