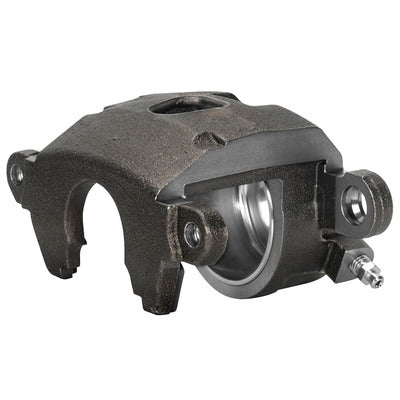

Wilwood GM Metric Iron Caliper 120-16101
Wilwood GM Metric Iron Caliper 120-16101
SKU:WIL120-16101
28 in stock
Couldn't load pickup availability
GM-Metric-Iron Single Piston Floater
These are all new and not rebuilt, cast iron calipers, purpose built for racing. Wilwood’s GM Metric Calipers are bolt-on replacements for 1978 and later GM Metric calipers widely used in "spec" racing categories. Wilwood’s new 2.50” piston GM Metric calipers are now officially approved for IMCA as OEM replacement caliper that meet all rules in Modified, Stock Cars, Hobby Stocks, Northern and Sothern Sport Mods. The GM Metric caliper is also available in 2.75” and 2.00” piston sizes for use in other non-restricted series or applications. Calipers require use of hardened Wilwood slide pins (sold separately), request part no. 230-0619 (slide pin kit) that contains 4 slide pins, enough for two calipers.
Caliper GM Metric Cast Iron 2.50in Piston - MPN: 120-16101
| Pistons | |
|---|---|
| Piston Count | 1 |
| Piston Area (in²) | 4.90 |
| Piston Type | Stainless |
| Dust Boot | No |
| Rotor Dimensions | |
| Rotor Width (in) | 1.04 |
| Rotor Diameter(in) | 11.75 |
| Pad Dimensions | |
| Pad Area (in²) | 8.7 |
| Pad Volume (in³) | 2.9 |
| Duty Rating & Material | |
| Material | Cast Iron |
| Weight(Lbs) | 4.3 |
| Colors & Finish | |
| Color | Bare |
| Finish | Bare |
| Mounting | |
|---|---|
| Mount Center(in) | 5.46 |
| Mount Position | |
| Mount Side | Universal |
| Mount Type | Floating |
Summary
| Brand | Wilwood |
| Part Number | 120-16101 |
|
Product Line
|
GM Metric
|
|
FSMI Pad Shape
|
D154
|
|
Hawk Pad Shape
|
HB119
|
|
Wilwood Pad Shape
|
D154
|
|
Performance Friction Pad Shape
|
154
|
|
Piston Quantity
|
1
|
|
Piston A Diameter
|
2.500 in
|
|
Mounting Style
|
Floating
|
|
Mounting Distance
|
5.460 in
|
|
Intended Rotor Diameter Minimum
|
11 in
|
|
Intended Rotor Diameter Maximum
|
11.75 in
|
|
Intended Rotor Thickness Minimum
|
0.810 in
|
|
Intended Rotor Thickness Maximum
|
1.040 in
|
|
Logo Design
|
Wilwood
|
|
Logo Color
|
White
|
|
Front / Rear
|
Front | Rear
|
|
Driver / Passenger Side
|
Driver | Passenger
|
|
Inlet Thread
|
10 mm x 1.50
|
|
Bleeder Included
|
Yes
|
|
Bleeder Quantity
|
1
|
|
Material
|
Cast Iron
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
