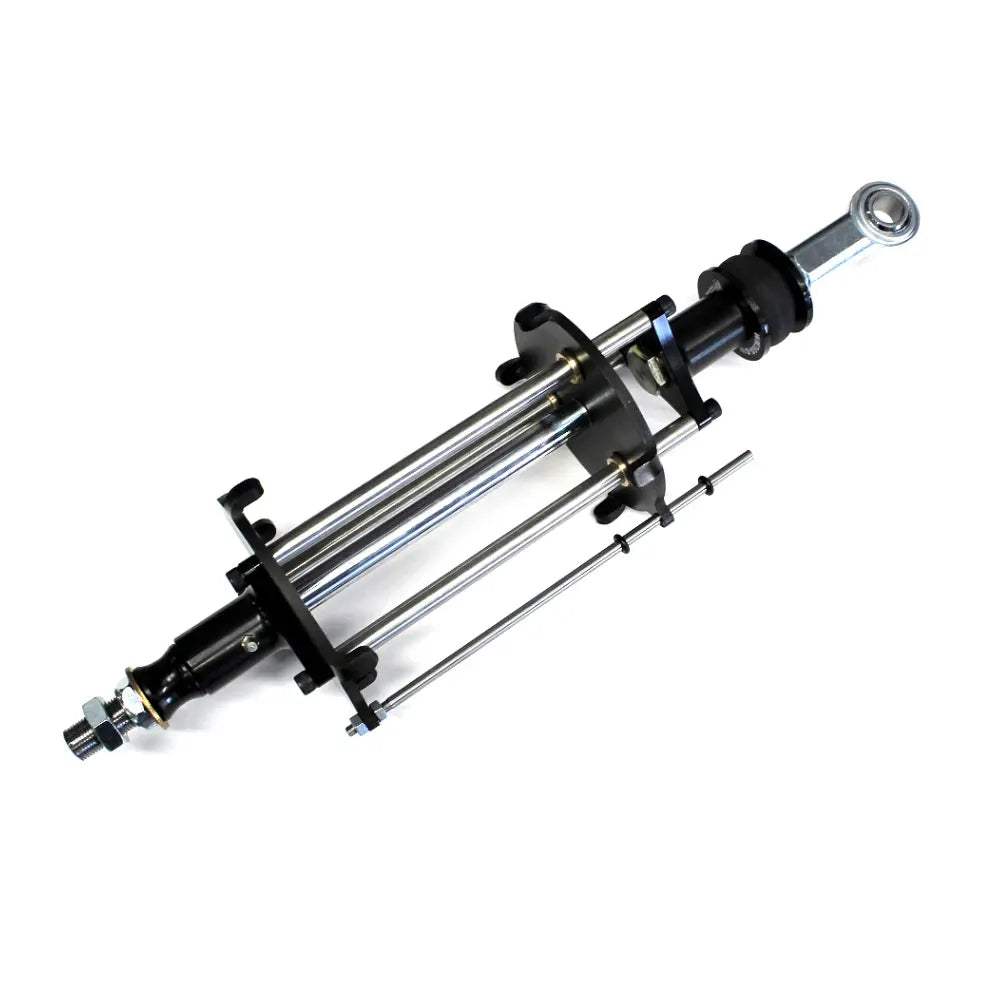

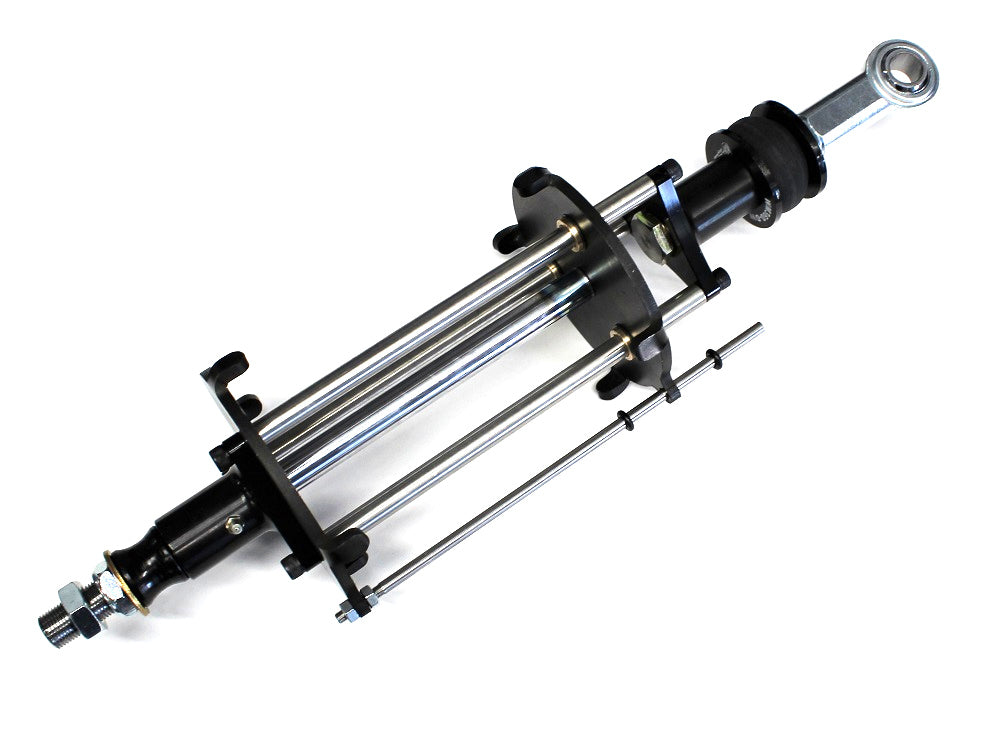

Spring-Style Pull Bar WM560
Pull bar is standard with a brake separate from the pull side and includes a long bronze bushing to eliminate shaft flex. Sold less spring. Pull bar may be used with or without internal pucks.
- Torque Link
- Spring Style Pull Bar
- Bronze Bushing
- Steel, Black Oxide
- Sold as Each
- Part Number: WM560
Specifications
| Brand |
Wehrs Machine |
| Part Number |
WM560 |
|
Style
|
Pull Bar
|
|
Bushing / Spring
|
Bushing
|
|
Bushing Included
|
Yes
|
|
Bushing 1 Position
|
Middle
|
|
Bushing 1 Diameter
|
2-1/4 in
|
|
Bushing 1 Material
|
Bronze
|
|
Bushing 1 Quantity
|
1
|
|
Bushing 2 Position
|
End
|
|
Bushing 2 Diameter
|
2-1/4 in
|
|
Bushing 2 Color
|
Black
|
|
Bushing 2 Material
|
Polyurethane
|
|
Bushing 2 Quantity
|
1
|
|
Single / Dual Shaft
|
Single
|
|
End 1 Mounting Style
|
Screw-On
|
|
End 1 Thread
|
3/4-16 in
|
|
End 1 Thread Direction
|
Right Hand
|
|
Travel Indicator
|
Yes
|
|
Travel Indicator Style
|
Tube Slider
|
|
Rod End Included
|
Yes
|
|
Rod End Quantity
|
1
|
|
Hardware Included
|
Yes
|
|
Material
|
Steel
|
|
Color
|
Black
|
|
Finish
|
Oxide
|
|
Quantity
|
Each
|
