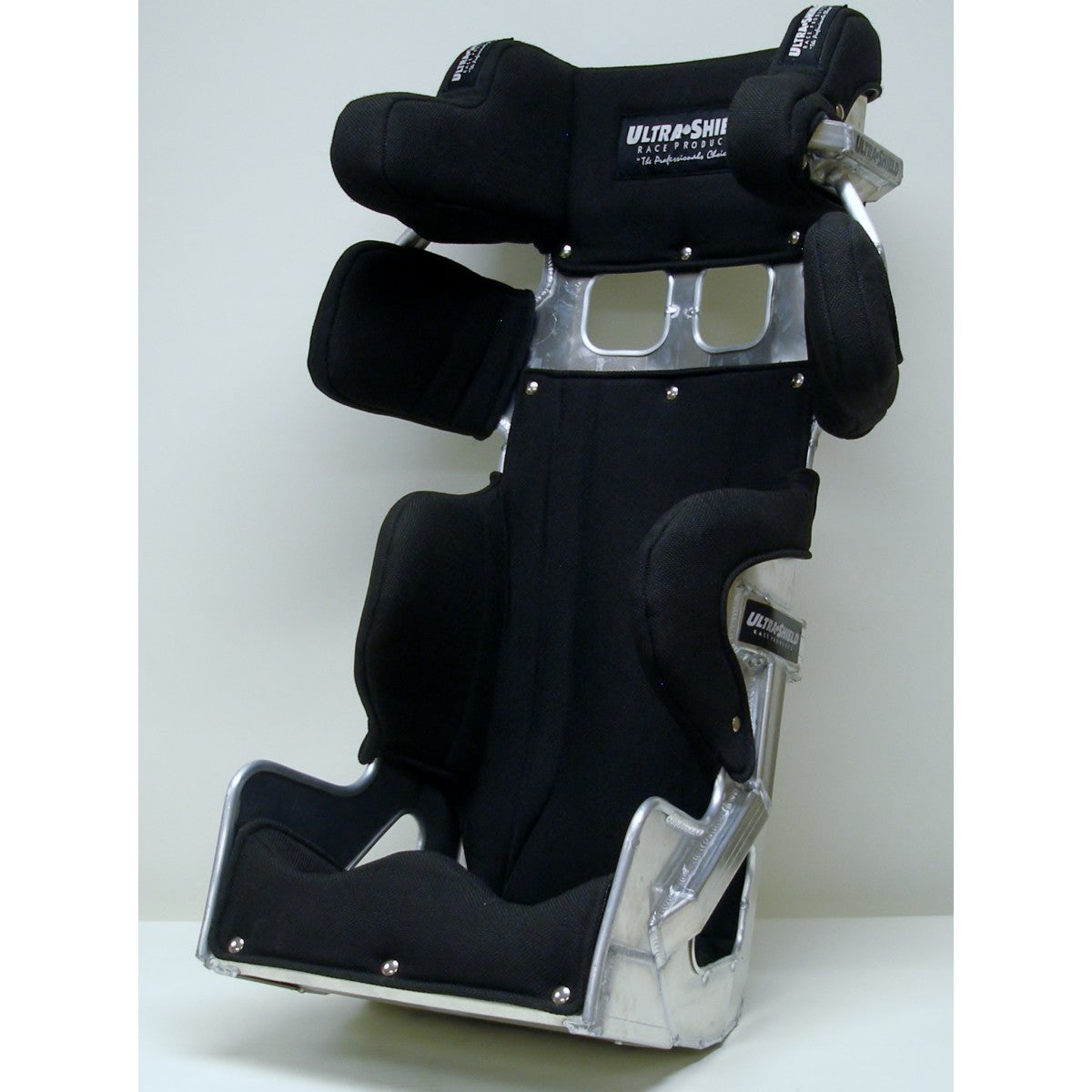

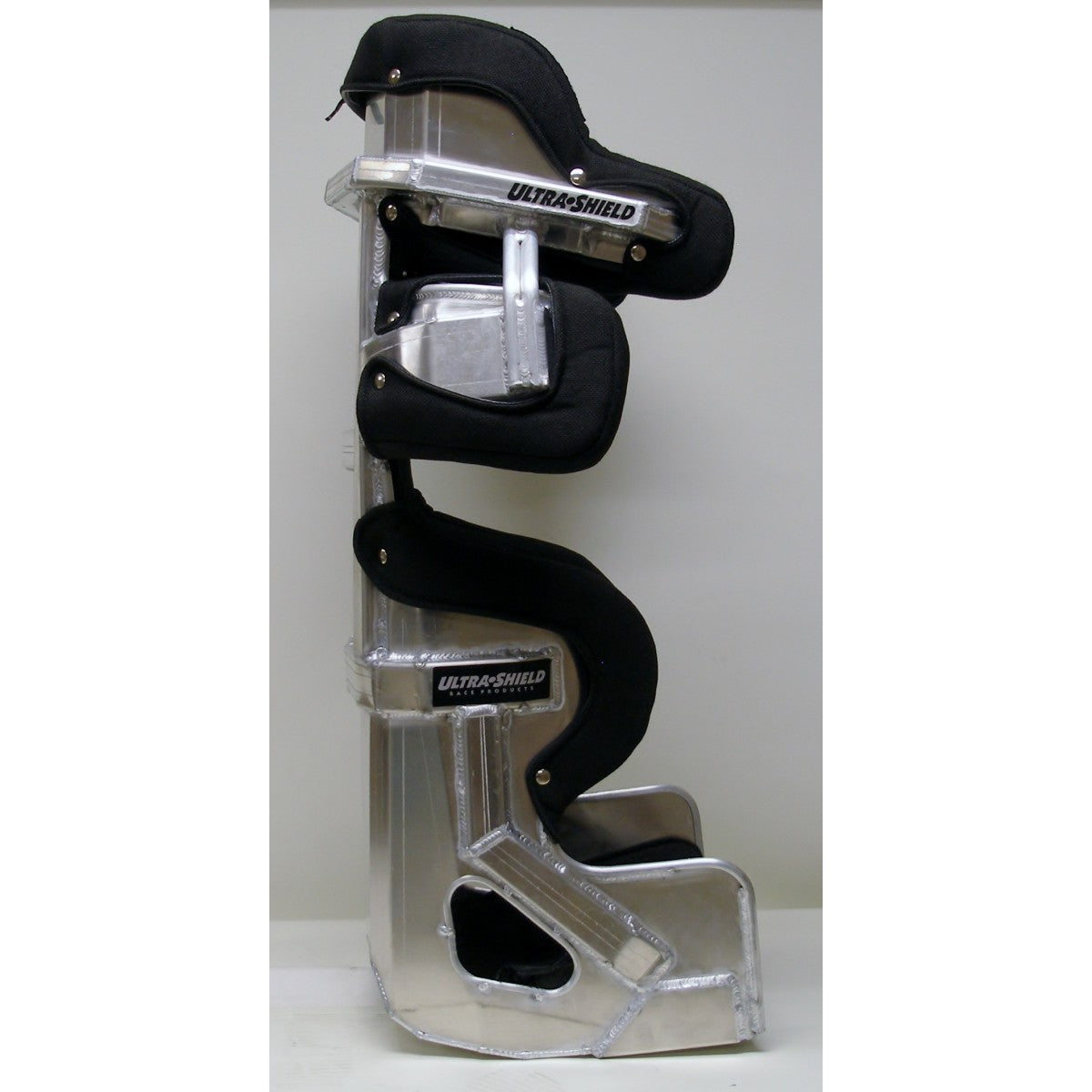

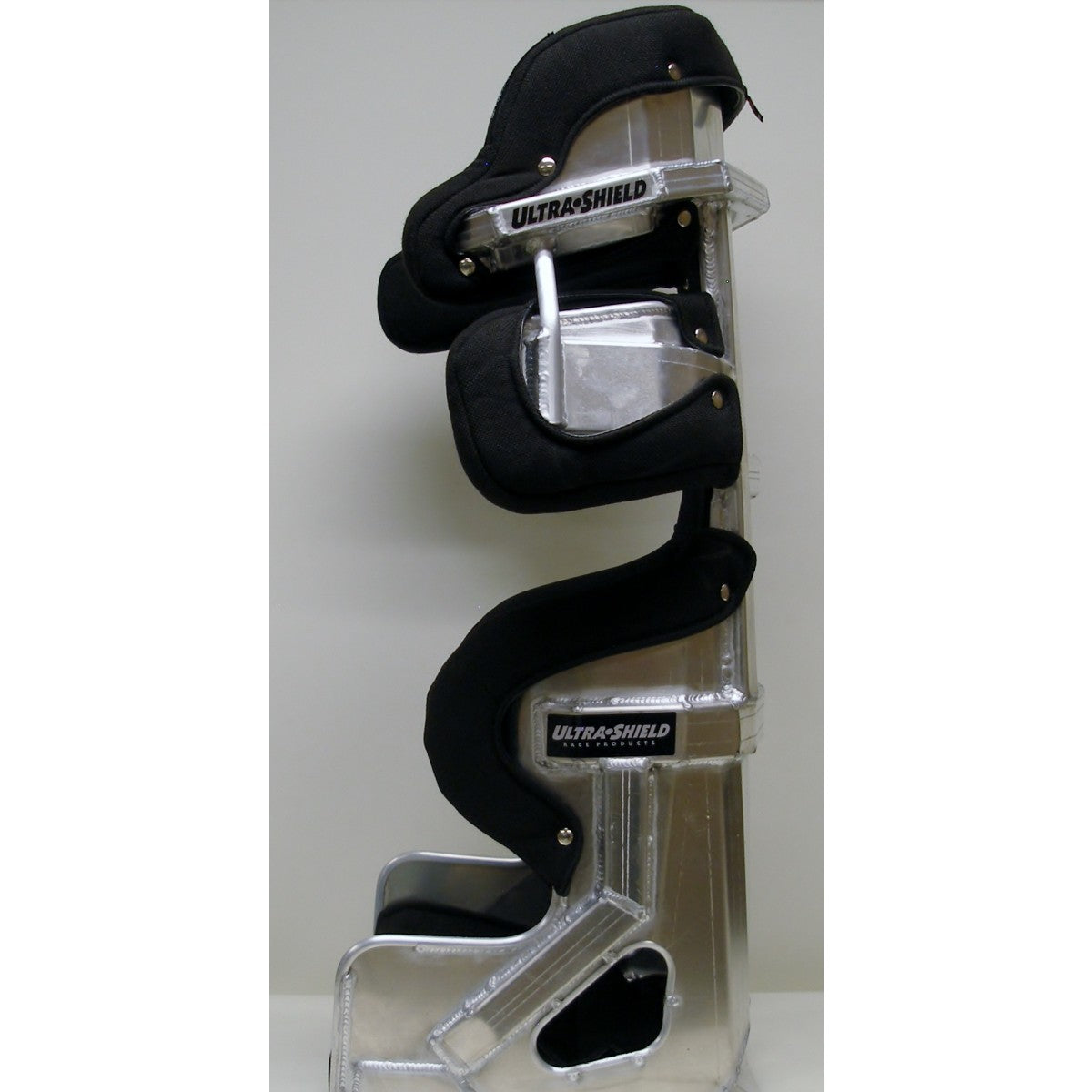

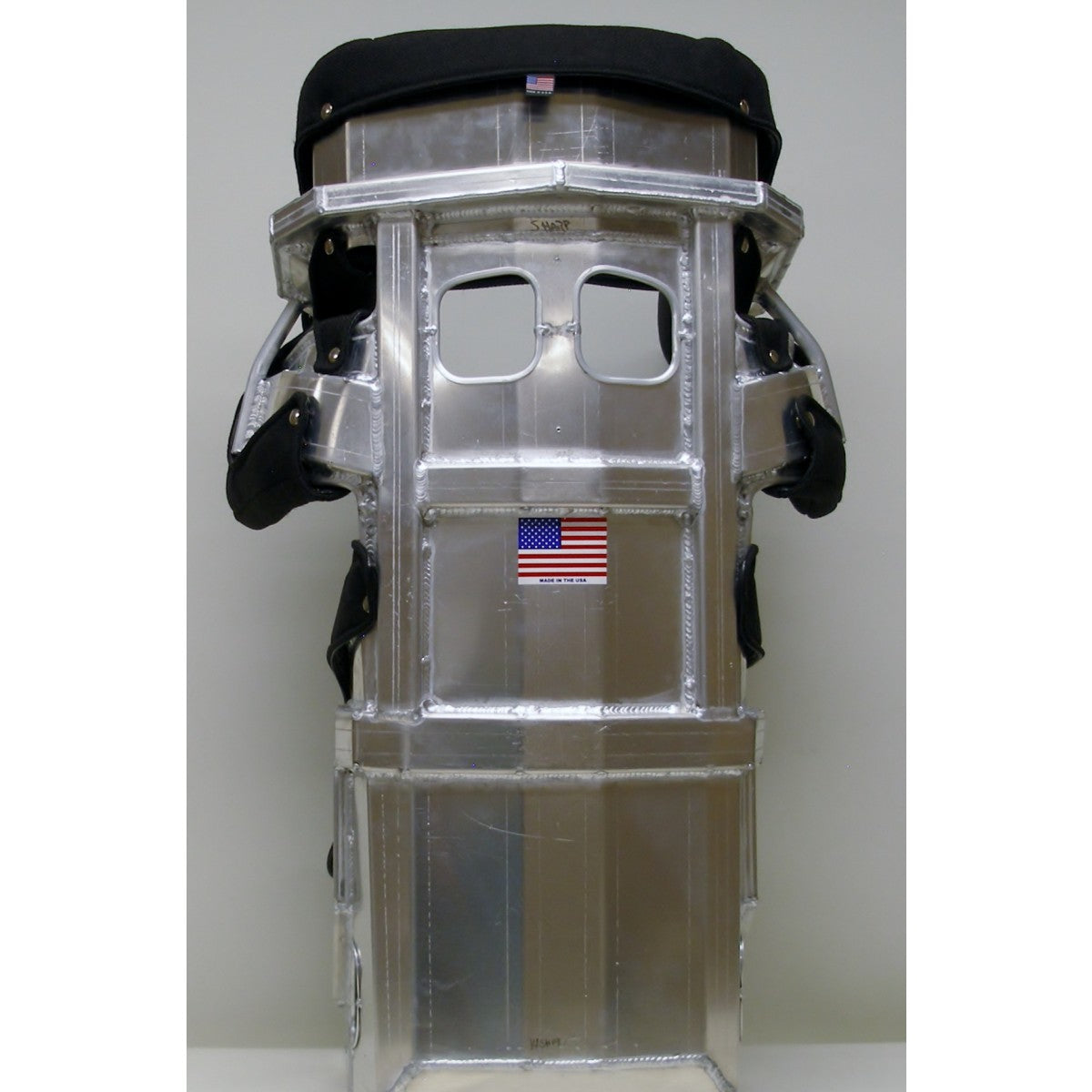

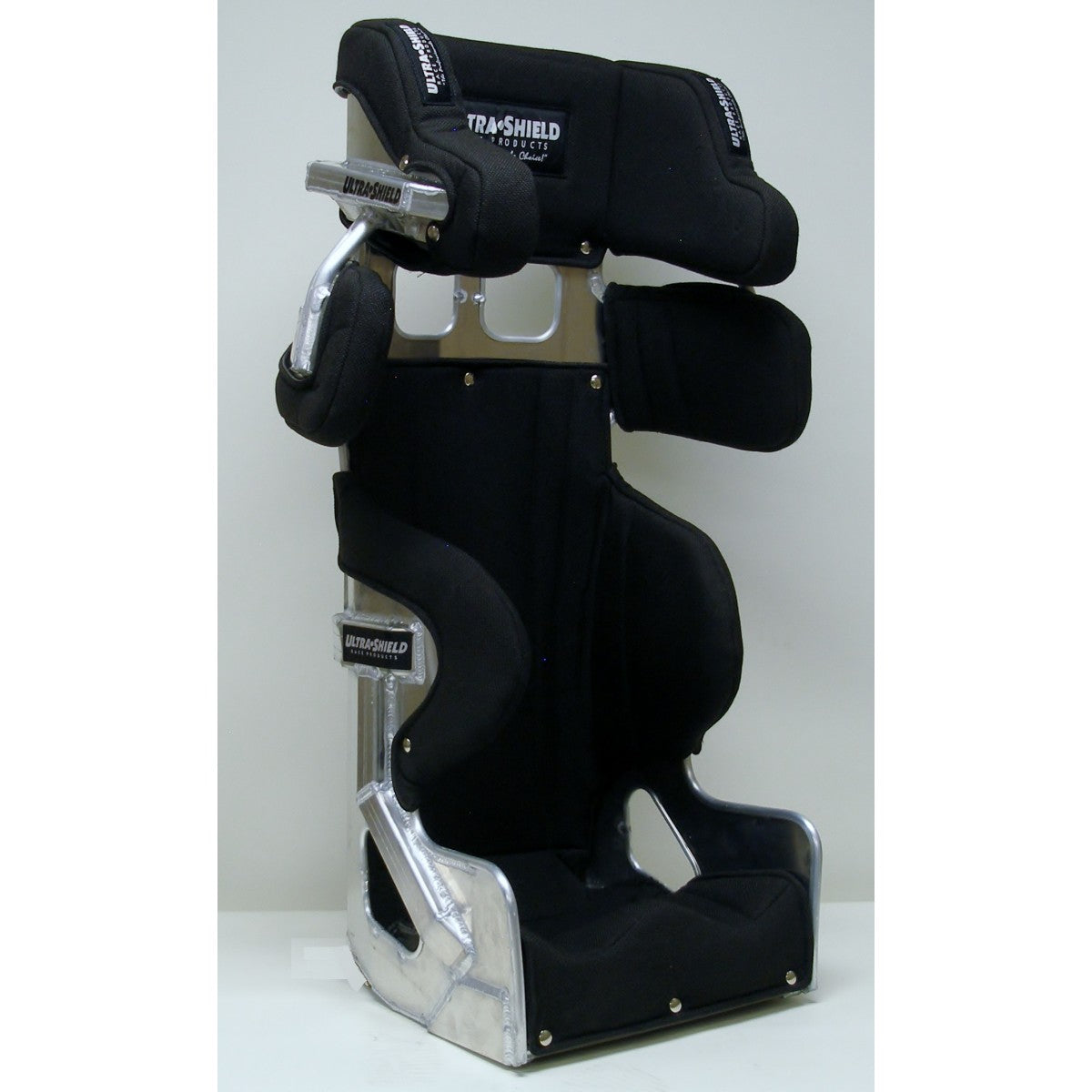

The Ultra-Shield TC2 Sprint Seat (Tight Clearance) is designed for cars and chassis with tight clearances. Constructed from .100 and .125 grade 5052 aluminum, the seat provides increased strength and stability with its C-Channel stiffener around shoulders, back and hips.
- Designed for cars and chassis with tight clearances in seating area
- Constructed from .100 and .125 Grade 5052 Aluminum
- Sprint - 10º Layback
- 14” deep bottom
- 1-Piece design
- Full reinforced with C-Channel Box stiffeners around shoulders, back and hips
- Solid U-shape Box around Head Surround
- Head Surround padded with high-density closed-cell foam
- Full cloth cover included (Black)
- Available in sizes 14" through 18" in 1/2" increments
- Tall 26" Shoulder Belt Height
- Made in Flint, TX USA!
Note: This seat is also available in standard size (25" shoulder belt height). Tall seats have shoulder belt openings at 26"(head and shoulder support moved up with belt hole).
Specifications
| Brand |
Ultra-Shield |
|
Product Line
|
TC2 Sprint
|
|
Front / Rear
|
Front
|
|
Tight Clearance
|
Yes
|
|
Full Containment
|
Yes
|
|
Highback / Lowback
|
Highback
|
|
Width(s)
|
14" - 18"
|
|
Height
|
Tall (1" higher)
|
| Shoulder Belt Height (Tall) |
26" |
|
Thickness
|
0.1 in
|
|
Layback Degree
|
10 Degree
|
|
Shoulder Support Included
|
Yes
|
|
Rib Support
|
Yes
|
|
Rib Support Side
|
Left / Right
|
|
Head Support
|
Yes
|
|
Harness Openings
|
Yes
|
|
Cover Mounting Method
|
Snap-On
|
|
Cover Included
|
Yes
|
|
Cover Material
|
Cloth
|
|
Cover Color
|
Black
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
Seats
| Size |
Height Size |
Part Number |
| 14" |
Tall |
T24030TK |
| 14-1/2" |
Tall |
T24530TK |
| 15" |
Tall |
T25030TK |
| 15-1/2" |
Tall |
T25530TK
|
| 16" |
Tall |
T26030TK |
| 16-1/2" |
Tall |
T26530TK
|
| 17" |
Tall |
T27030TK |
| 17-1/2" |
Tall |
T27530TK
|
| 18" |
Tall |
T28030TK |
