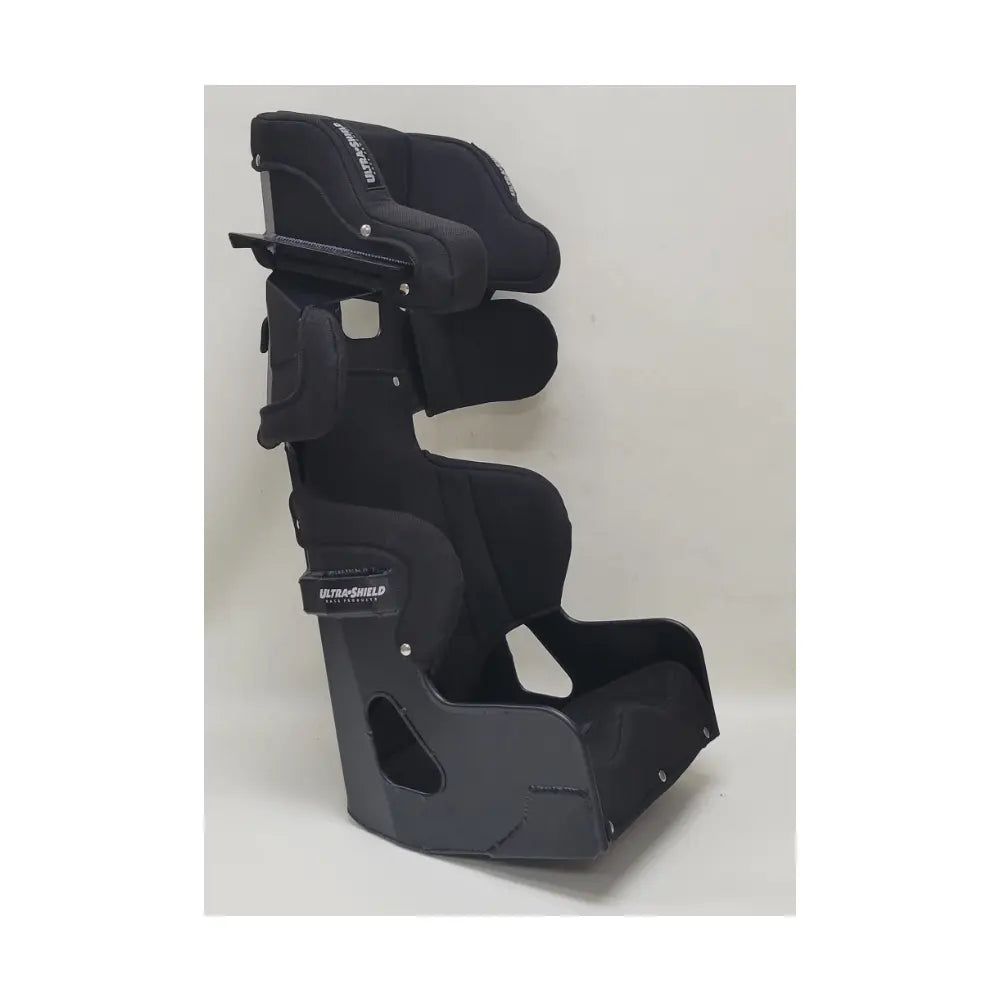

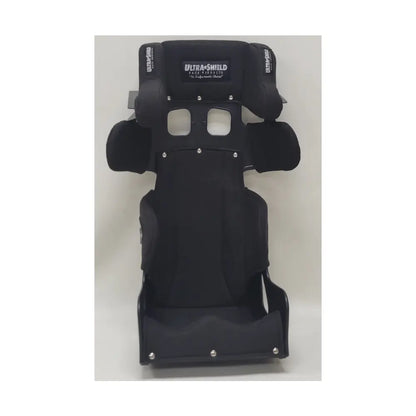

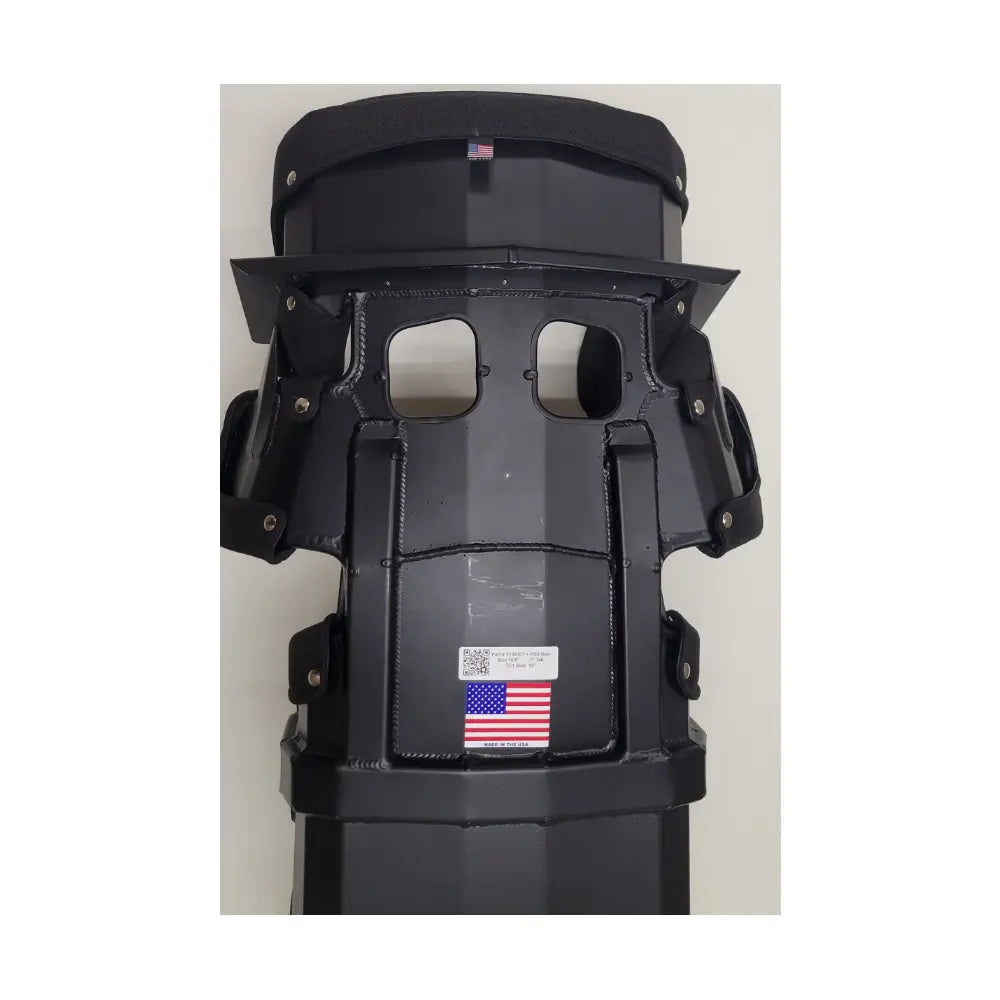

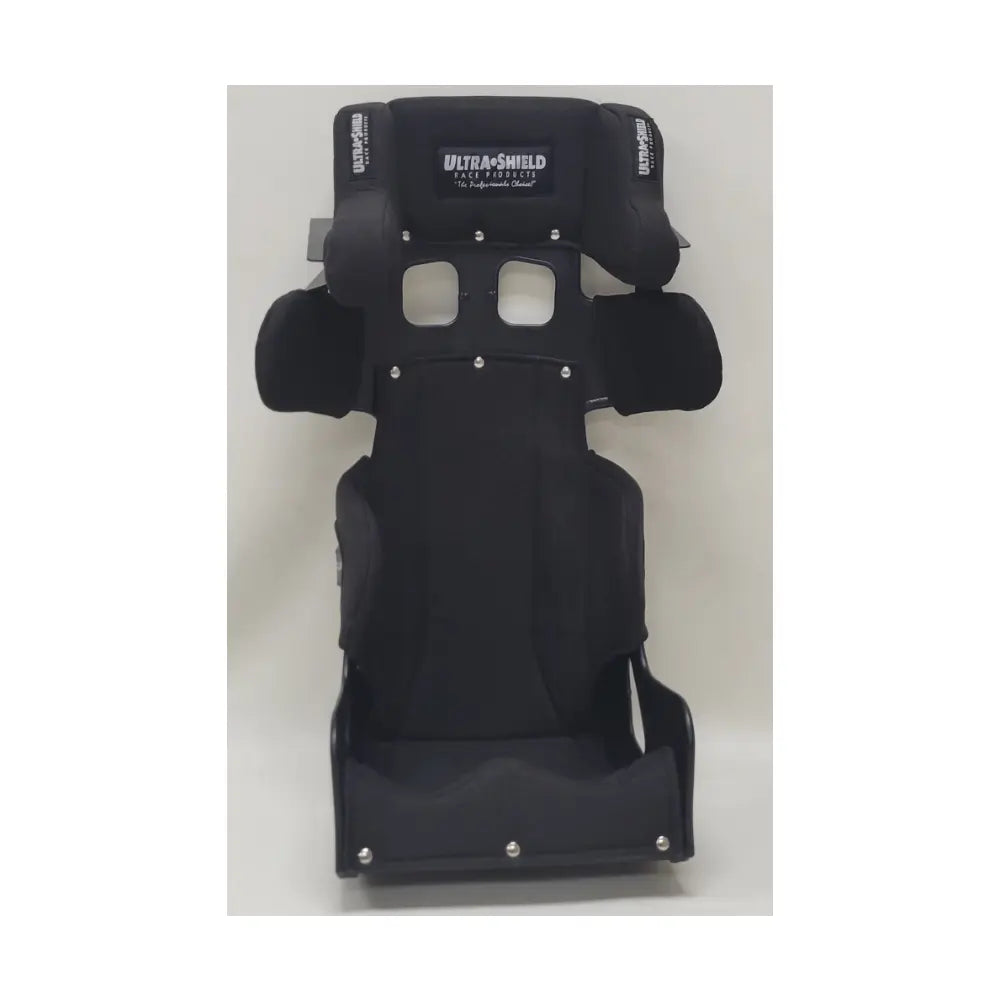

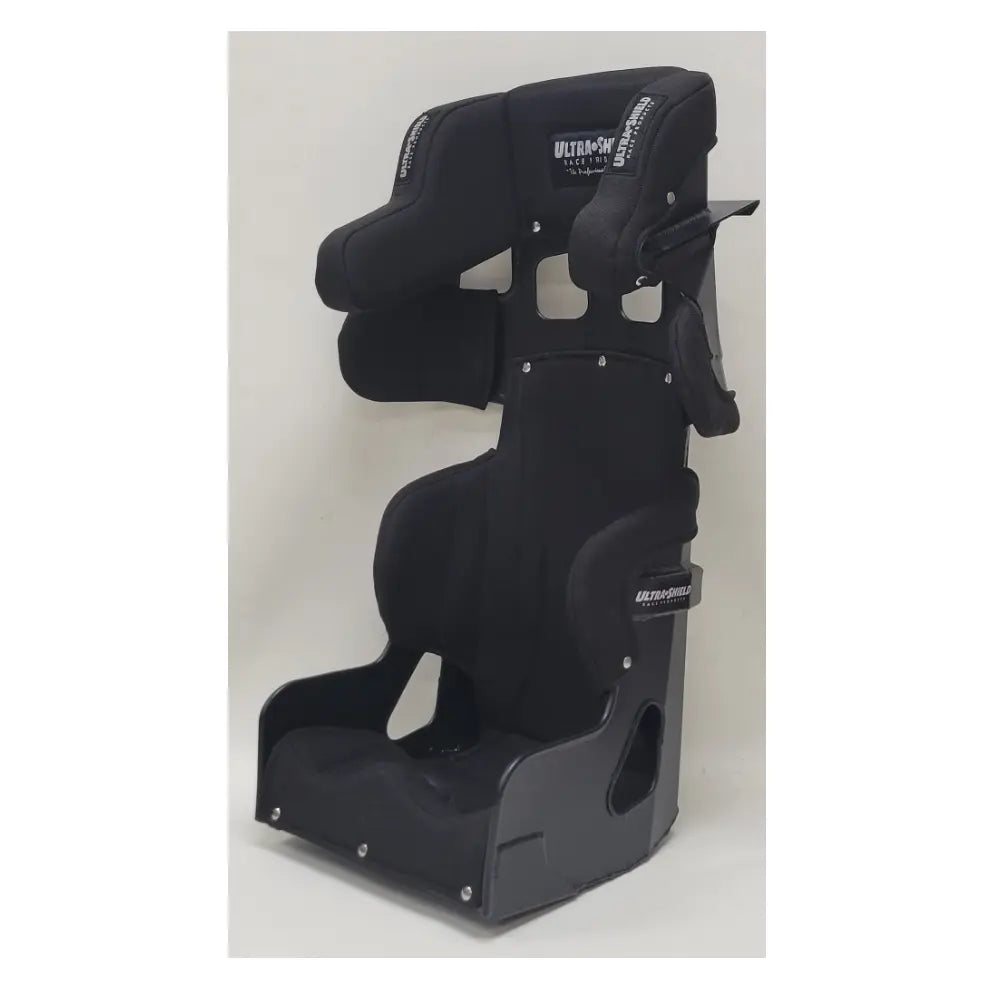

The Ultra-Shield TC1 Sprint Seat with Halo (upgraded head support) is designed for cars and chassis with tight clearances. Constructed from .100 grade 5052 aluminum, the seat provides increased strength and stability.
- Designed for cars and chassis with tight clearances in seating area
- Constructed from .100 Grade 5052 Aluminum
- 10º Layback
- 14” deep bottom
- Full black cover included
- Available in sizes 14" through 18" in 1/2" increments
- Standard 25" Shoulder Belt Height
- Made in Flint, TX USA!
Note: This seat is also available in 1" taller or 1" shorter than this standard size seat. Tall seats have shoulder belt openings at 26"(head and shoulder support moved up with belt hole). Short seats have shoulder belt openings at 24" (head and shoulder support lowered with belt holes, ribs 1" lower).
Specifications
| Brand |
Ultra-Shield |
|
Product Line
|
TC1 Sprint Halo
|
|
Front / Rear
|
Front
|
|
Full Containment
|
Yes
|
|
Highback / Lowback
|
Highback
|
|
Width(s)
|
14" - 18"
|
|
Height
|
Standard
|
| Shoulder Belt Openings Height |
25" |
|
Thickness
|
0.1 in
|
|
Layback Degree
|
10 Degree
|
|
Shoulder Support Included
|
Yes
|
|
Rib Support
|
Yes
|
|
Rib Support Side
|
Left / Right
|
|
Head Support
|
Yes
|
|
Harness Openings
|
Yes
|
|
Cover Mounting Method
|
Snap-On
|
|
Cover Included
|
Yes
|
|
Cover Material
|
Cloth
|
|
Cover Color
|
Black
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
Seats
| Size |
Height Size |
Part Number |
| 14" |
Standard |
T14030K+PSS HALO |
| 14-1/2" |
Standard |
T14530K+PSS HALO |
| 15" |
Standard |
T15030K+PSS HALO |
| 15-1/2" |
Standard |
T15530K+PSS HALO |
| 16" |
Standard |
T16030K+PSS HALO |
| 16-1/2" |
Standard |
T16530K+PSS HALO
|
| 17" |
Standard |
T17030K+PSS HALO |
| 17-1/2" |
Standard |
T17530K+PSS HALO
|
| 18" |
Standard |
T18030K+PSS HALO |
