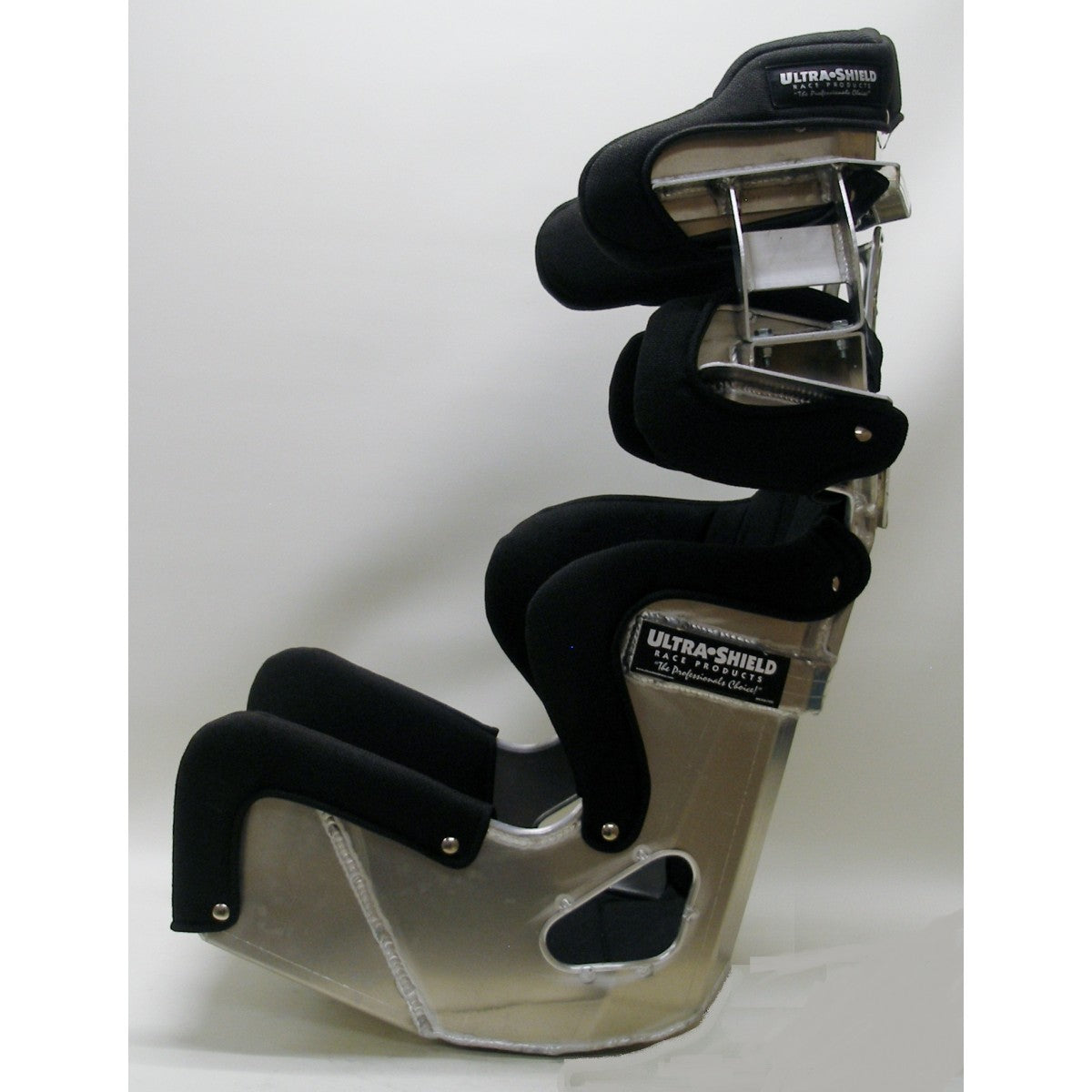

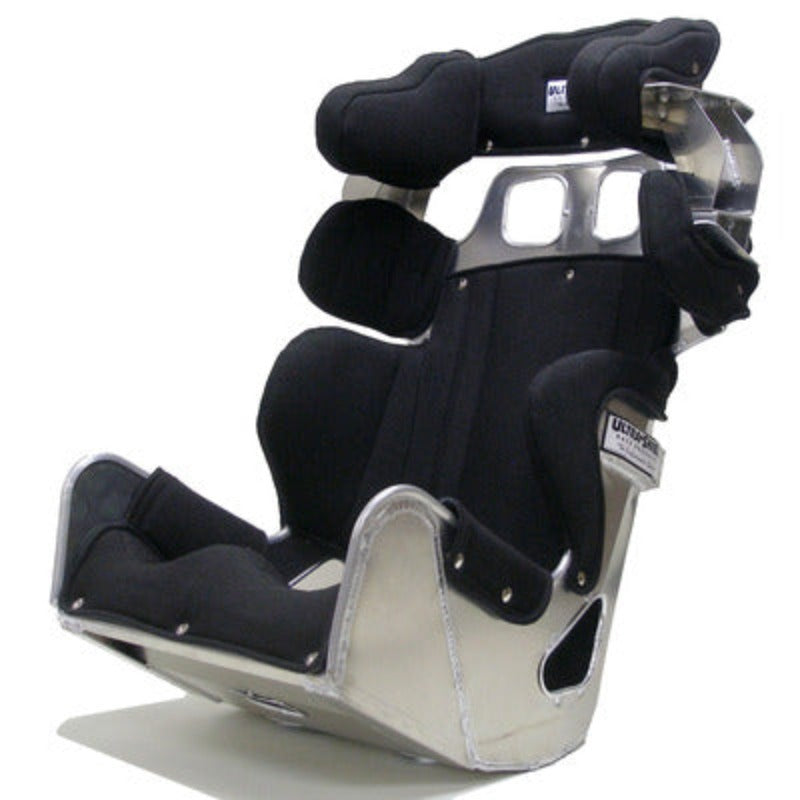

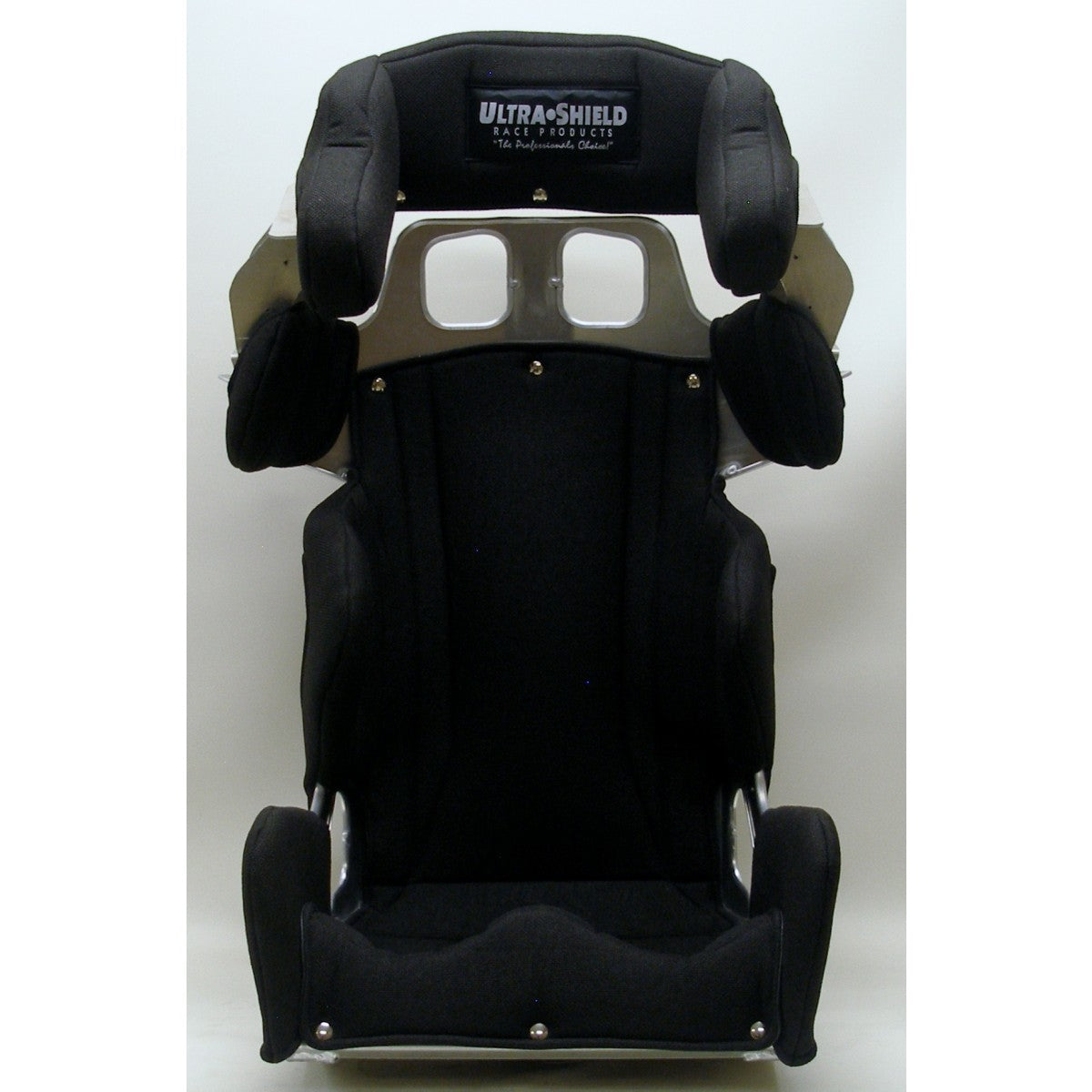

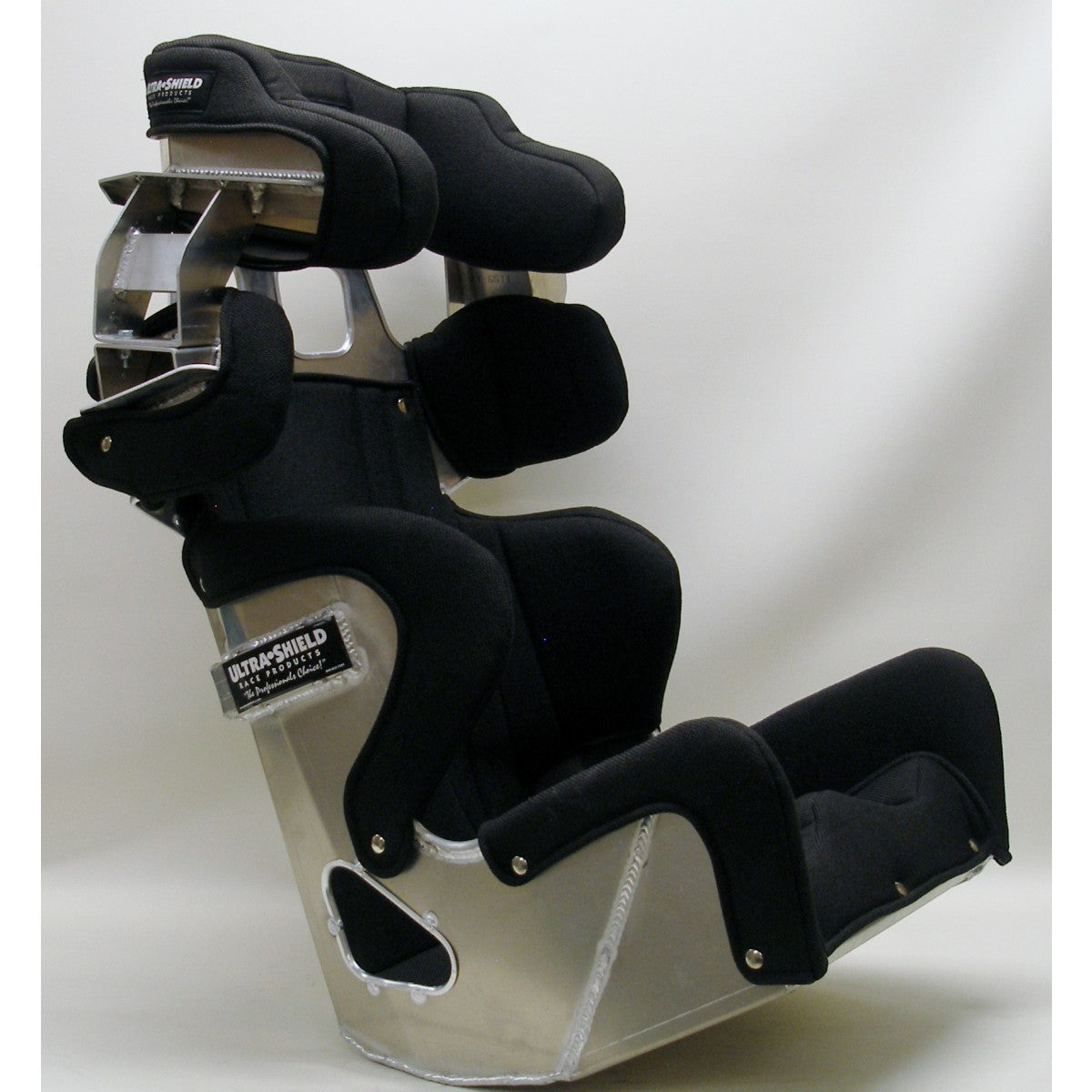

Ultra-Shield Late Model Halo 20-degree Seat with Cover
(Not in stock)
The Ultra-Shield Late Model Halo 20º Seat with Cover is constructed from .100" 5052 aluminum. The 2-piece seat design with head support assembly bolts to the shoulders on the main seat assembly, allowing for easier installation.
Includes seat cover
Constructed from .100" 5052 aluminum
2-piece seat design
Head support assembly bolts to shoulders on main seat assembly
Compatible with 5 and 6-point harness systems, as well as HANS and other head and neck restraints
Bottom is a full 20 inches deep, 5 inches longer than the standard Ultra-Shield seats
Head supports are offset, bringing the right-side head support 1" closer to the helmet, for double duty crash protection and head rest
Extra tall thigh support on side of seat
45º Angle Plates inside of bottom to reinforce seat
25" shoulder belt height; right rib 18"; left rib 17"
MPN: LM5020K (15"); LM5520K (15.5"), LM6020K (16") and LM7020K (17")
