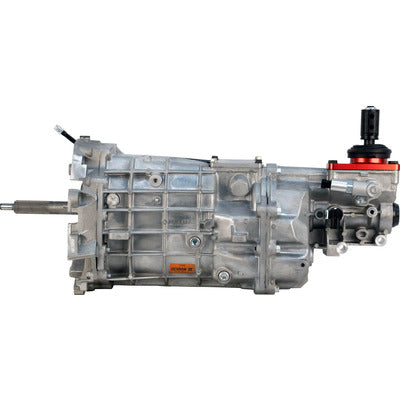

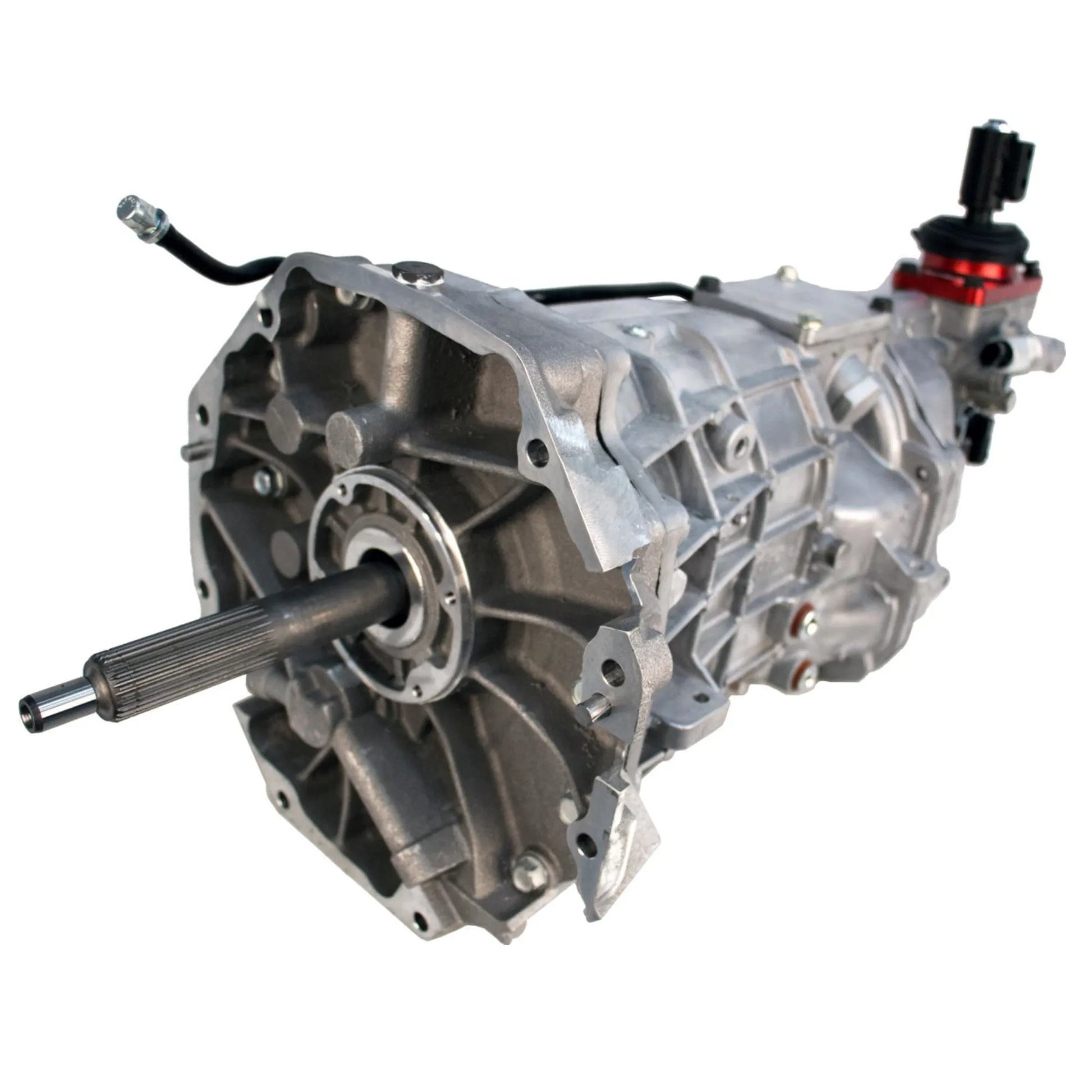

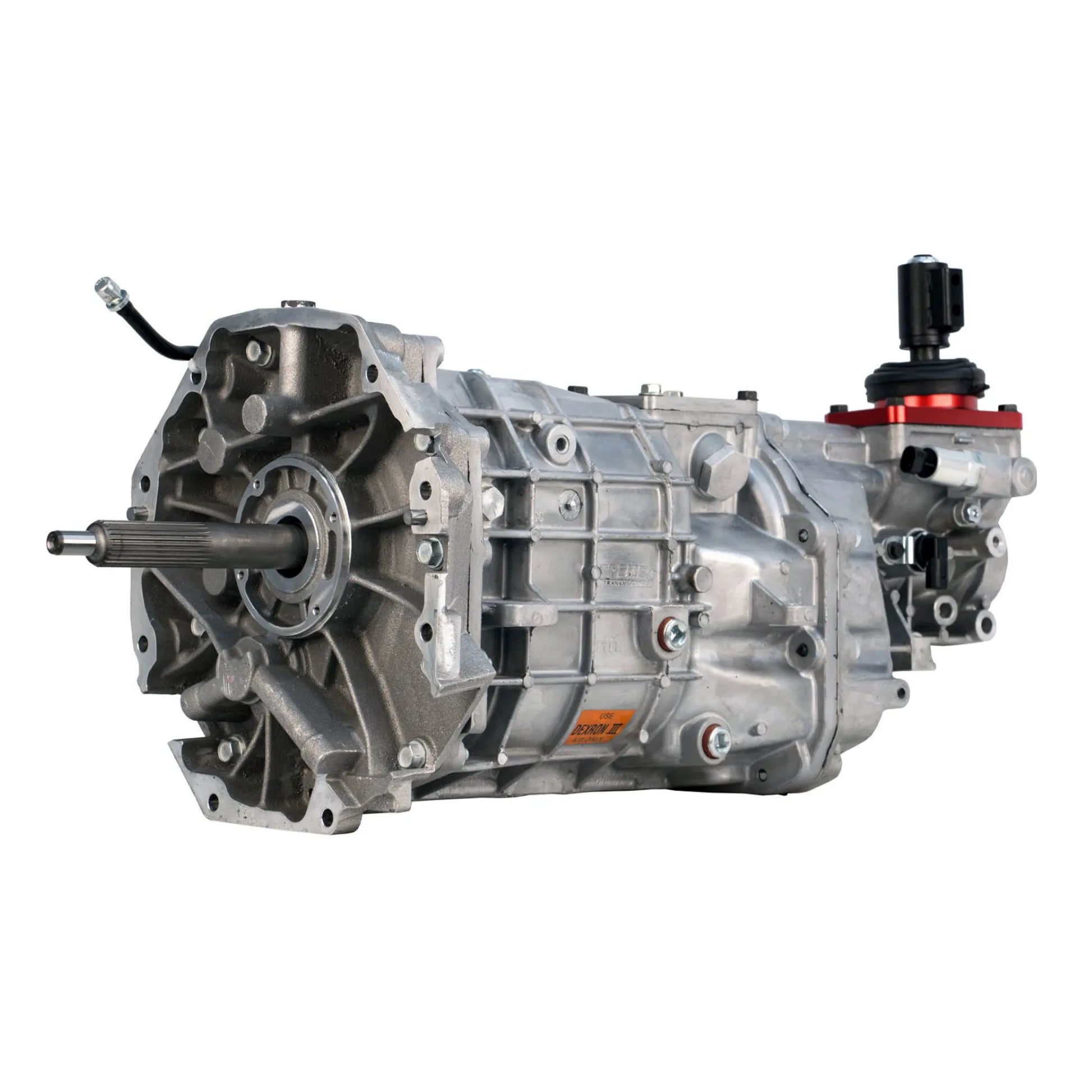

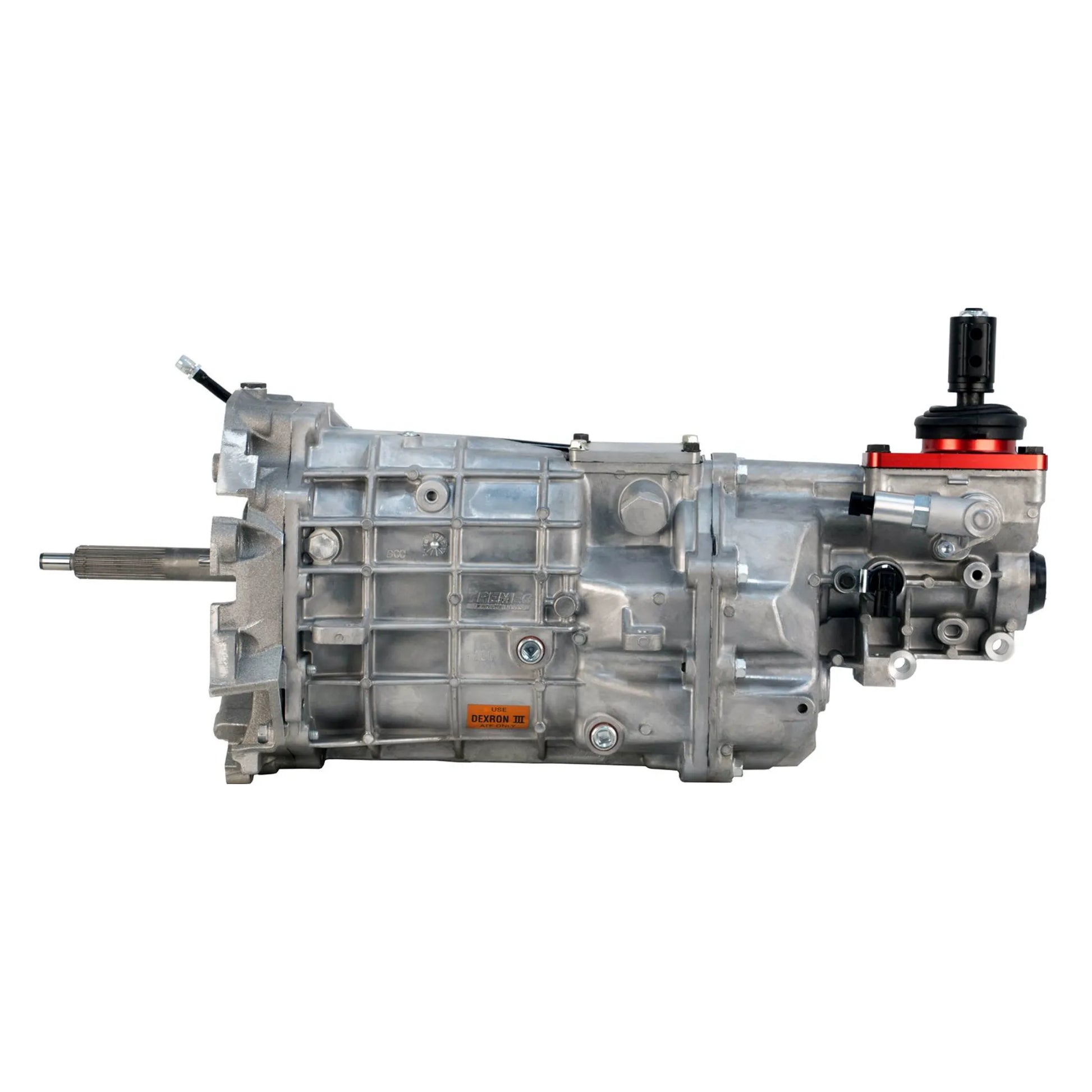

Tremec T56 Magnum-F 6-Speed Trans GM LS V8 F-Body
Tremec T56 Magnum-F 6-Speed Trans GM LS V8 F-Body
SKU:TRETUET16362
Inventory: 5 in stock
Couldn't load pickup availability
High-performance T-56 Magnum 6-speed transmissions deliver crisp, precise shifts and dual overdrive gears for improved cruising efficiency, while handling up to 700 lb./ft. of torque. Based on the proven TR-6060 found in elite performance vehicles like the ZR1 Corvette and ACR Viper, the Magnum provides exceptional strength, versatility, and reliability. Designed for 1998–02 GM F-Body applications. Clutch housing sold separately.
- 6-speed manual, 2.66/1.78/1.30/1.00/0.68
- 700 lb./ft. torque capacity for high-performance builds
- 26-spline input/31-spline output shafts
- Hydraulic clutch
Transmission - Magnum - TR-6060 - 6-Speed - 26 Input Spline - 31 Output Spline - Aluminum - Natural - GM LS-Series - GM F-Body 1998-2002 - Sold as Each
Ships via Truck Freight Only (additional shipping charges apply). For additional information, review our Truck Freight policy.
| Brand |
Tremec
|
| Part Number |
TUET16362
|
| Product Line |
Magnum
|
| Number of Forward Gears |
6
|
| 1st Gear Ratio |
2.66 to 1
|
| 2nd Gear Ratio |
1.78 to 1
|
| 3rd Gear Ratio |
1.30 to 1
|
| 4th Gear Ratio |
1.00 to 1
|
| 5th Gear Ratio |
0.80 to 1
|
| 6th Gear Ratio |
0.63 to 1
|
| Reverse Gear Ratio |
2.90 to 1
|
| Maximum Torque ft/lb |
700 ft/lb
|
| Weight |
140 lbs
|
| Input Shaft Diameter |
1.125 in
|
| Input Shaft Spline |
26
|
| Output Shaft Spline |
31
|
| Shifter Included |
Yes
|
| Case Material |
Aluminum
|
| Color |
Natural
|
| Finish |
Natural
|
| Quantity |
Each
|
