T-One Connector Wiring Light Kit - Toyota Truck

Tekonsha T-One Connector Wiring Light Kit 118496 - Toyota

REE118496 (1 in stock)

Reese

Regular price $66.99 Sale

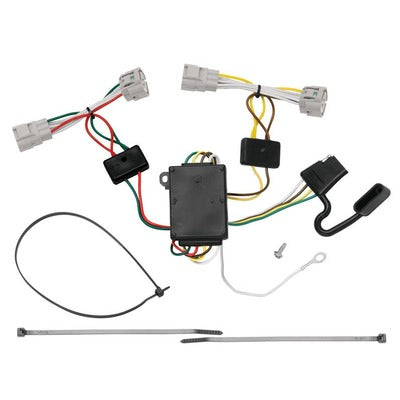

The Tekonsha T-One Connector Wiring Light Kit 118496 is a trailer wiring harness that allows you to connect the lighting system of your trailer to the electrical system on your Toyota Tacoma or T100.

The T-One Connector Wiring Light Kit comes with a plug-and-play design that makes it easy to install. No splicing or cutting of wires is required, and the kit comes with detailed instructions to guide you through the installation process.

Quickly and easily install a 4-way trailer connector on your vehicle with this custom wiring harness. This T-One connector plugs directly into existing wiring, so there is no cutting, splicing or tapping required. Includes tail light converter.

  • Provides a 4-way flat trailer connector at the back of your vehicle to power your trailer's signal lights
  • Compatible with 5-pole, 6-pole and 7-pole adapters (sold separately)
  • Connects quickly and easily - no cutting or splicing of wires
  • Locate connection points either behind tail lights or along frame rail
  • Plug in T-connector
  • Includes a tail light converter to ensure that your vehicle's wiring matches that of your trailer
  • Constructed of 16-gauge bonded wire
  • Comes with dust cap for 4-way flat connector

Specifications

  • 118496 Tow Ready T-1 T-Connector - 4 Wire - Item # 118496 - Trailer Light Wiring Harness - T-One Connector - Brake / Tail Light / Turn Signal - Toyota Compact / Fullsize Truck 1993-2015 - Kit
  • Maximum amperage: Stop/turn lights: 2.1 amps per circuit; Tail lights: 7.5 amps per circuit
  • 1-Year limited warranty

Installation

This custom-fit T-One connector plugs into your vehicle's wiring harness, which is located on the driver's side and passenger's side, either behind the tail lights or along the frame rail. If your wiring harness is behind the tail lights, you will have to remove the tail light assemblies to gain access.

Once installation is complete, the 4-way flat connector will be stowed beneath your vehicle, near the trailer hitch. A mounting bracket (sold separately) is recommended to keep the connector secure.

It is recommended that you use a small amount of grease on all electrical connections - the plugs on your automobile and the 4-pole connector itself - to help prevent corrosion.

Tail Light Converter

A tail light converter is built into this T-One connector. Because most trailers run on a two-wire system - wherein the brake and turn signals are carried on one wire - the separate brake and turn signals from your vehicle's three-wire system need to be combined so they are compatible with the wiring system of your trailer. The tail light converter combines the brake and turn signal functions of your automobile so that they run on one wire to properly activate your trailer's tail lights. Note: This will not affect how the tail lights on your vehicle operate.

Fitment

  • 1993 - 1998 Toyota T100 Pickup
  • 1993 - 1998 Toyota T100 Pickup
  • 2014 - 2015 Toyota Tacoma
  • 2005 - 2007 Toyota Tacoma
  • 2005 - 2013 Toyota Tacoma excluding X-Runner
  • 2008 - 2015 Toyota Tacoma without factory trailer connector
  • 1993 Toyota T-100 Pickup
  • 1994 Toyota T-100 Pickup
  • 1995 Toyota T-100 Pickup
  • 1996 Toyota T-100 Pickup
  • 1997 Toyota T-100 Pickup
  • 1998 Toyota T-100 Pickup
  • 2005 Toyota Tacoma Pickup
  • 2006 Toyota Tacoma Pickup
  • 2007 Toyota Tacoma Pickup
  • 2008 Toyota Tacoma Pickup
  • 2009 Toyota Tacoma Pickup
  • 2010 Toyota Tacoma Pickup
  • 2011 Toyota Tacoma Pickup
  • 2012 Toyota Tacoma Pickup
  • 2013 Toyota Tacoma Pickup
  • 2014 Toyota Tacoma Pickup
  • 2015 Toyota Tacoma Pickup
