Pypes 1967-1974 F/X-Body 2.5in Crossflow Exhaust System with X-Pipe SGF70
Pypes 1967-1974 F/X-Body 2.5in Crossflow Exhaust System with X-Pipe SGF70
SKU:PYPSGF70
Inventory: 3 in stock
Couldn't load pickup availability

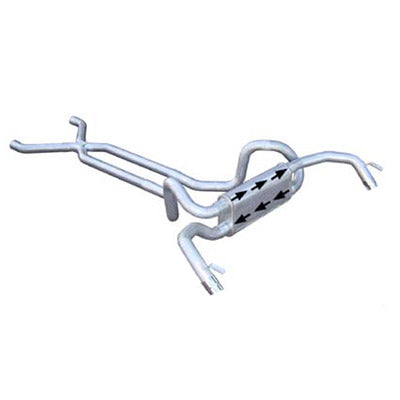

This is the first system on the market with a true straight thru flow path. That means that even though there is one muffler there is two completely separate flow paths for each side of the exhaust. There is absolutely no loss of flow thru the muffler. All other systems include a flow path that create turbulence and restricted flow in the muffler.

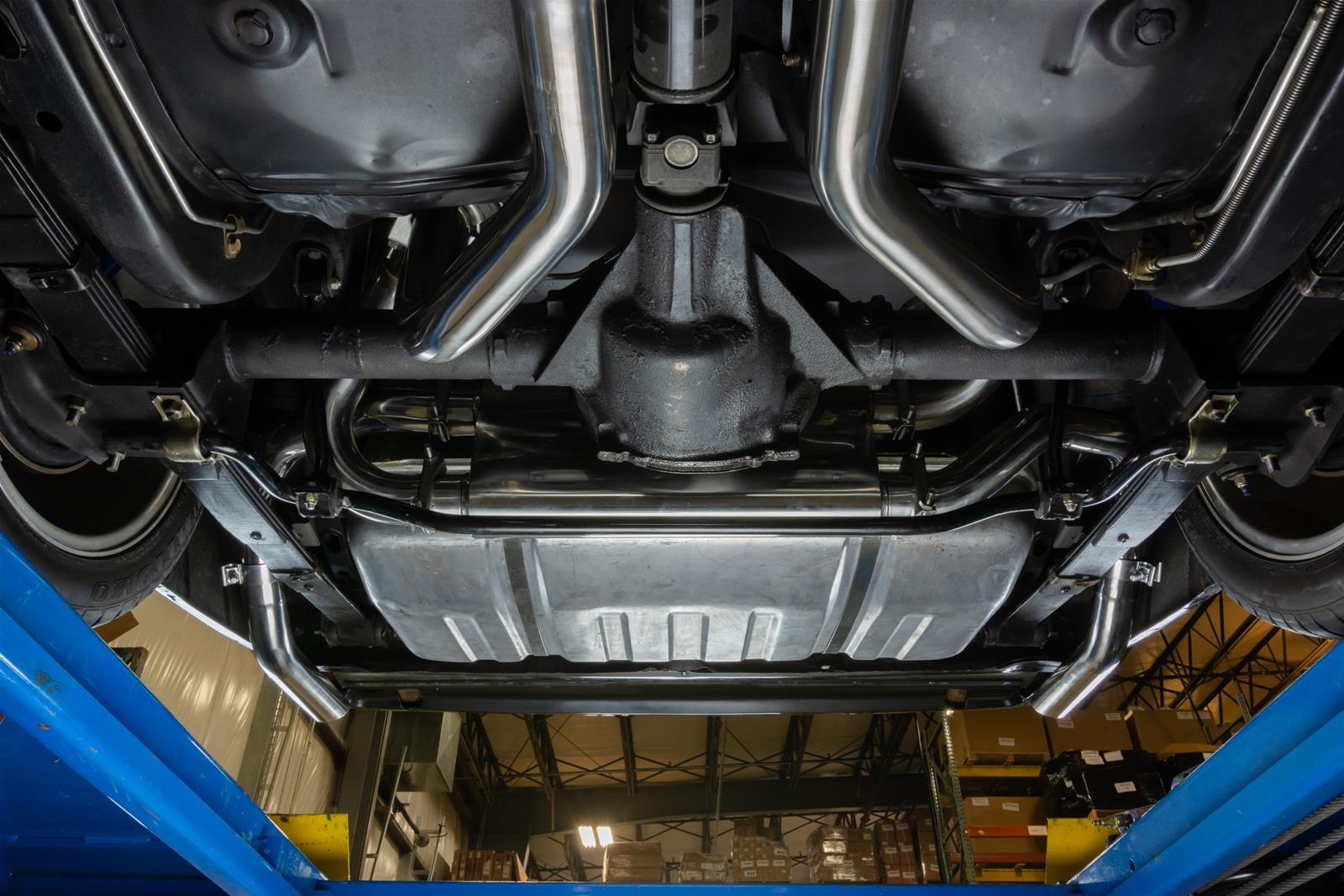

This header back system includes a driveshaft tunnel X crossover kit for maximum ground clearance even on lowered vehicles. Manifold downpipes are available as an option for those that do not have headers. Great for even the highest performance (up to 600 hp) applications where ground clearance and OEM look is a priority. Pipes and muffler are 409 stainless steel. This is the last exhaust system you will ever need for your car.
Note: Tips are not included with the system. Part number EVT49 is for behind the tire exit. Part number EVT59 for out the back cars. Part number EVT10 splitters (also requires part number TGF20E for 76-81 owners).
- Exhaust Type: Dual
- Exit Position: Dual Split Rear
- Exit Style: Straight
- Inlet Inside Diameter: 2.5 Inch
- Oulet Outside Diameter: 2.5 Inch
- Diameter: 2.5 Inch

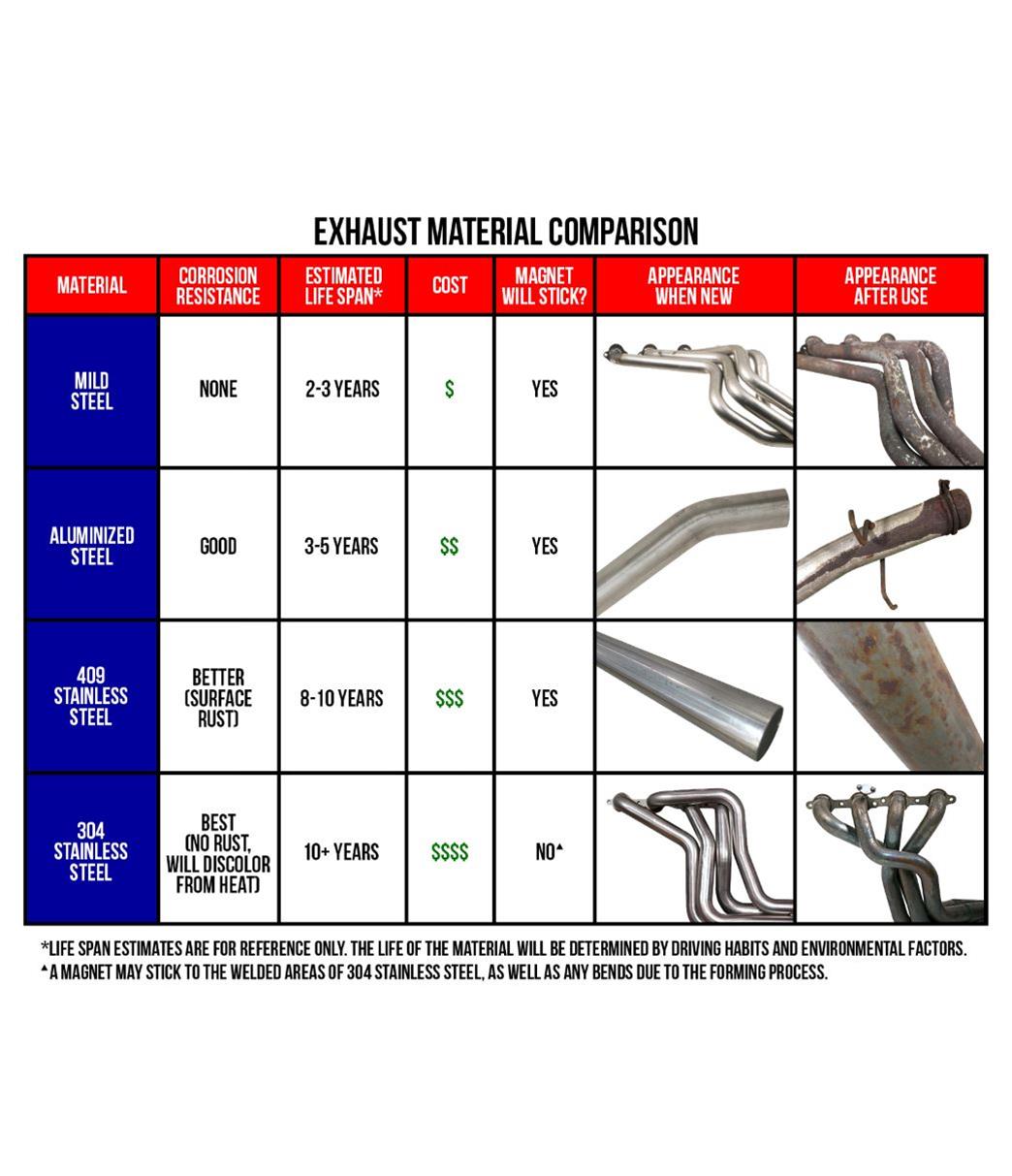

- Material: 409 Stainless Steel
- Sold As: Kit
- Warranty: Limited Lifetime
- Stainless Steel Construction Resists Corrosion
- Delivers The Ultimate In Sound And Performance
- Provides Extra Punch In The Passing Lane
- Fabricated Using The Highest Quality Materials
- Ensures Maximum Exhaust Gas Flow Which Significantly Boost HP
- Installation At Home Without Special Tools
- Mandrel-Bent/ All Welded/ Built to Last
- Includes Transverse Race Pro Muffler
- One Muffler w/ Separate Flow Paths For Each Side Of The Exhaust
- Great For Even The Highest Performance-Up To 600hp
- Applications where ground clearance and OEM look is a priority
- MPN: SGF70
State Restrictions: CA
|
Brand
|
Pypes
|
|
Part Number
|
SGF70
|
|
Product Line
|
Crossflow X-Pipe
|
|
Style
|
Header Back
|
|
Exit Quantity
|
Dual
|
|
Exit Location
|
Back
|
|
Exit Side
|
Driver / Passenger
|
|
Intermediate Pipe Included
|
Yes
|
|
Intermediate Pipe Diameter
|
2-1/2 in
|
|
Intermediate Pipe A Quantity
|
2
|
|
Tailpipes Included
|
Yes
|
|
Tailpipes Diameter
|
2-1/2 in
|
|
Tailpipe A Quantity
|
2
|
|
Tailpipe End Style
|
Turn Down
|
|
Muffler Included
|
Yes
|
|
Muffler Style
|
Turbo
|
|
Muffler A Shape
|
Oval
|
|
Muffler Product Line
|
Race Pro
|
|
Muffler A Inlet Quantity
|
2
|
|
Muffler A Inlet Diameter
|
2-1/2 in
|
|
Muffler A Inlet Location
|
Left / Right
|
|
Muffler A Outlet Quantity
|
2
|
|
Muffler A Outlet Diameter
|
2-1/2 in
|
|
Muffler A Outlet Location
|
Left / Right
|
|
Muffler Quantity
|
1
|
|
Hangers Included
|
Yes
|
|
Clamps Included
|
Yes
|
|
Clamps Style
|
U-Bolt Clamp
|
|
Hardware Included
|
Yes
|
|
Alloy
|
409
|
|
Material
|
Stainless
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
- 1974 Chevrolet Camaro
- 1974 Chevrolet Nova
- 1974 Pontiac Firebird
- 1973 Chevrolet Camaro
- 1973 Chevrolet Nova
- 1973 Pontiac Firebird
- 1972 Chevrolet Camaro
- 1972 Chevrolet Nova
- 1972 Pontiac Firebird
- 1971 Chevrolet Camaro
- 1971 Chevrolet Nova
- 1971 Pontiac Firebird
- 1970 Chevrolet Camaro
- 1970 Chevrolet Nova
- 1970 Pontiac Firebird
- 1969 Chevrolet Camaro
- 1969 Chevrolet Nova
- 1969 Pontiac Firebird
- 1968 Chevrolet Camaro
- 1968 Chevrolet Nova
- 1968 Pontiac Firebird
- 1967 Chevrolet Camaro
- 1967 Pontiac Firebird
- Chevrolet - Camaro - 67-81 Camaro
- Chevrolet - Nova - 68-74 Nova
- Pontiac - Firebird/Trans Am - 67-81 Firebird/Trans Am
