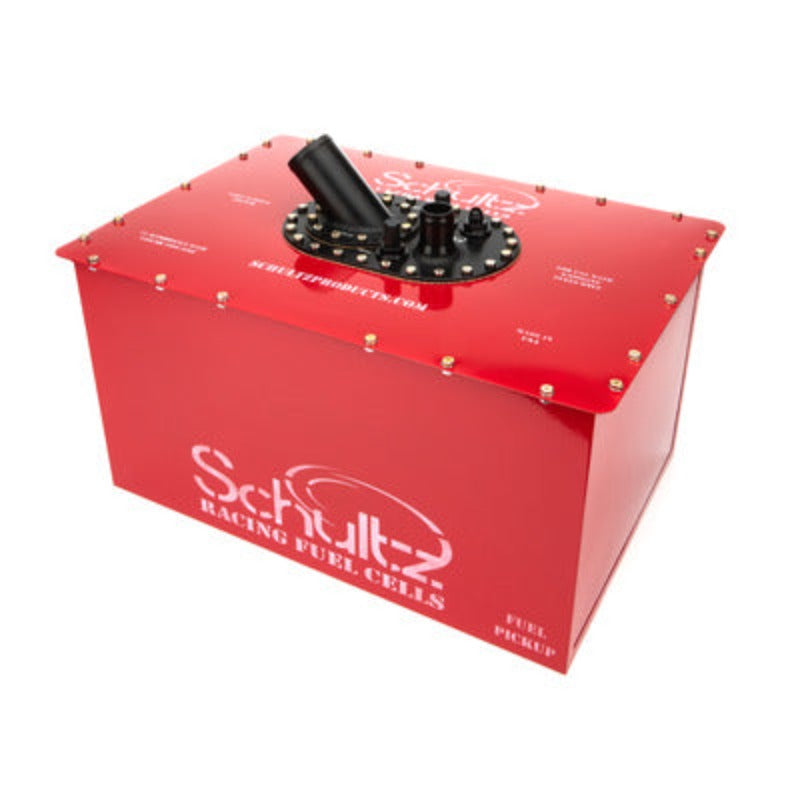

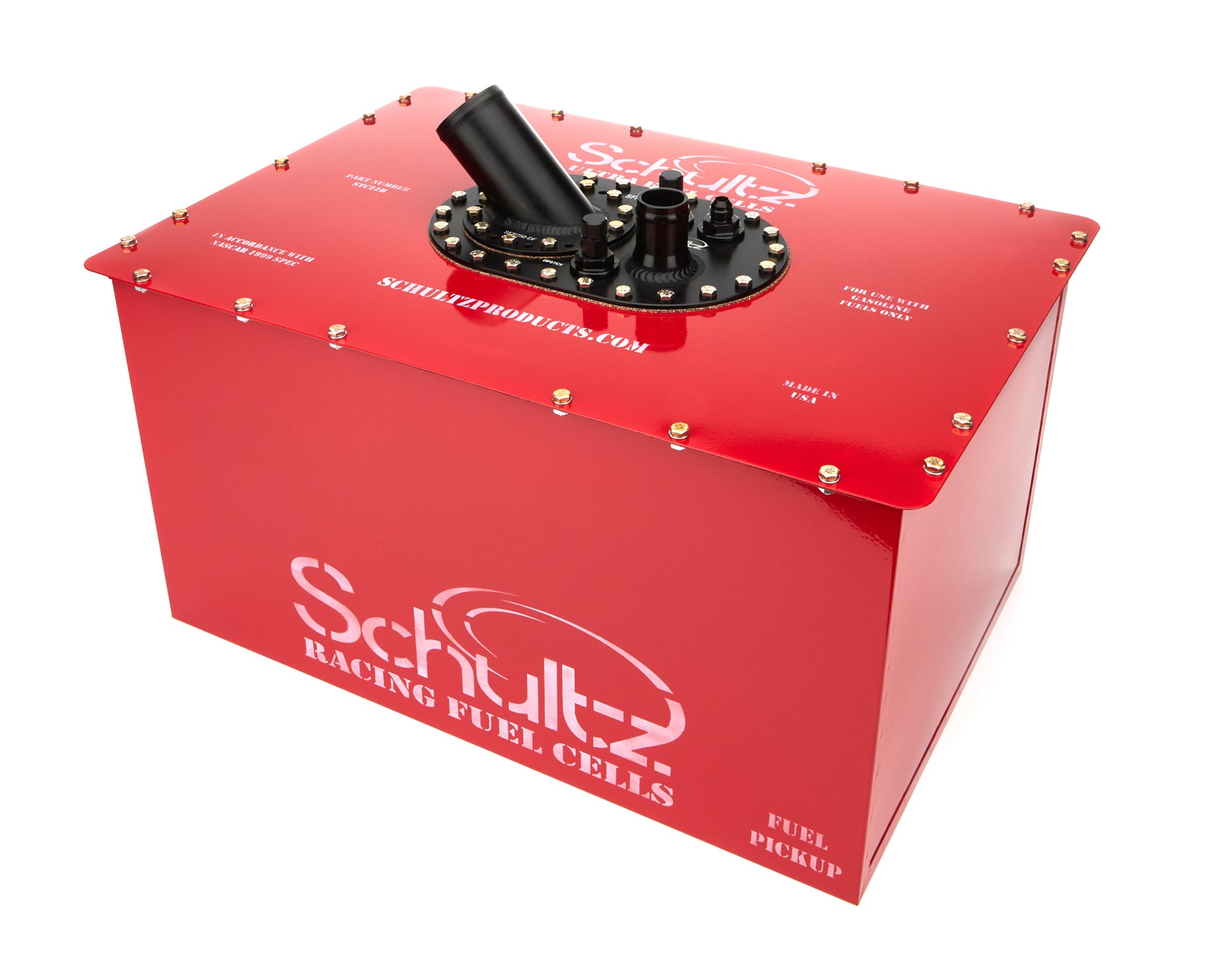

Fuel Cell - Ultra - 22 gal - 25.13 in Wide x 16.88 in Deep x 13.75 in Tall - 8 AN Male Outlet - 6 AN Male Return - 1-1/2 in Hose Barb Vent - 45 Degree 2-1/2 in Filler Neck - Steel - Red Powder Coat - Sold as Each - Part Number: STC22B
Specifications
Brand |
Schultz Racing Fuel Cells |
Part Number |
STC22B |
Product Line
|
Ultra Fuel Cell Complete: Kevlar Reinforced NASACR Approved
|
Style
|
Cell
|
Shape
|
Rectangle
|
Capacity
|
22 gal
|
Width
|
25.13 in
|
Depth
|
16.88 in
|
Height
|
13.75 in
|
Bladder
|
Yes
|
Bladder Material
|
Kevlar
|
Outlet Location
|
Top
|
Outlet Quantity
|
1
|
Outlet Size
|
8 AN
|
Outlet Style
|
Male
|
Return Quantity
|
1
|
Return Size
|
6 AN
|
Return Style
|
Male
|
Vent Quantity
|
1
|
Vent Size
|
1-1/2 in
|
Vent Style
|
Hose Barb
|
Remote Filler
|
Yes
|
Remote Filler Diameter
|
2-1/2 in
|
Remote Filler Angle
|
45 degree
|
Fill Plate Included
|
Yes
|
Fill Plate Shape
|
Oval
|
Fill Plate Mounting Bolt Quantity
|
24
|
Dipstick Included
|
Yes
|
Can Included
|
Yes
|
Can Material
|
Steel
|
Can Color
|
Red
|
Can Finish
|
Powder Coat
|
FIA Certified
|
Yes
|
Quantity
|
Each
|
