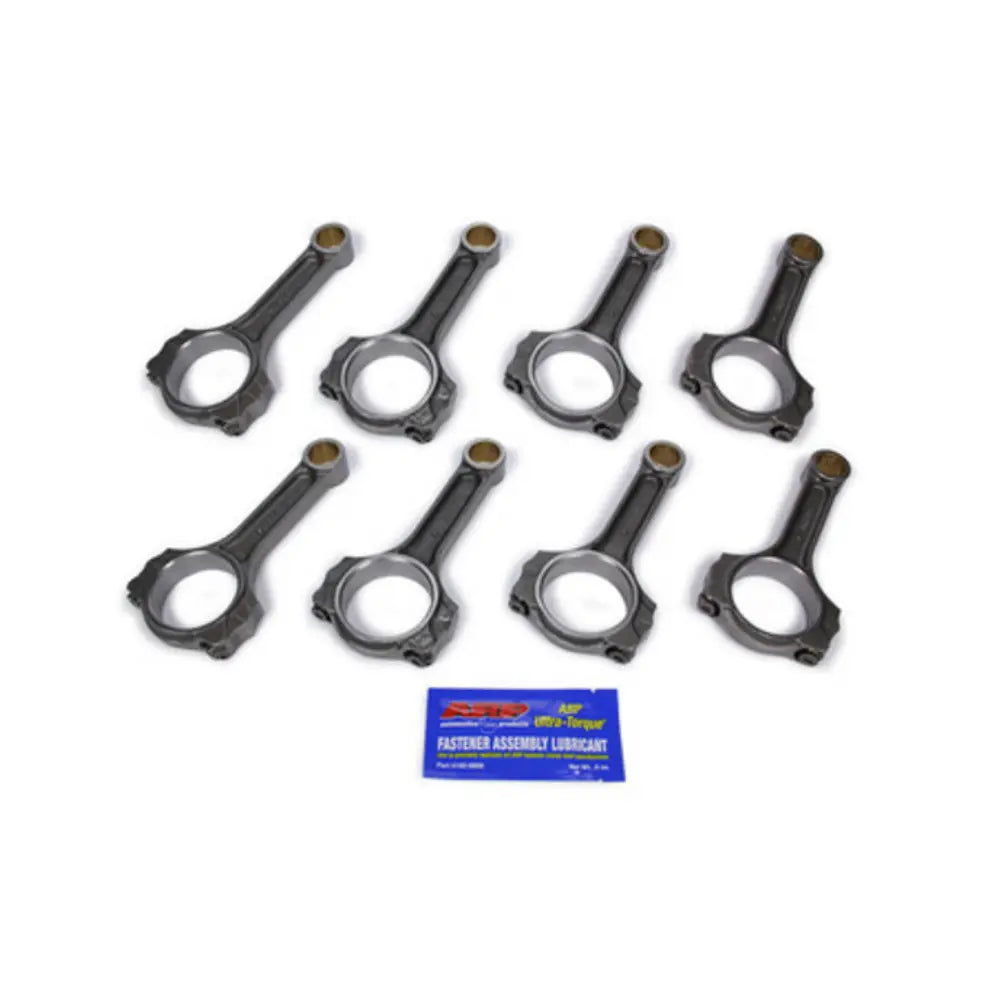

Scat SBF 4340 Forged I-Beam Rods 5.400
SCA2-ICR5400-7/16 (7 in stock)Scat Enterprises
Regular price
$576.00
$451.99
Sale
Ford 302 - Scat Pro Stock
Forged 4340 alloy steel, lightweight I-Beam design, single rib cap design, ARP 3/8" cap screw rod bolts, suited for engines up to 700 HP. Set of 8.
- Chevy Rod Pin, Length +0.310", Bushed, ARP 8740 Hi-Perf.
- Center-to-Center Length: 5.400"
- Pin End Bore: 0.927"
- Big End Width: 0.832"
- Crank Pin Diameter: 2.100"
- Part Number: 2-ICR5400-7/16
Specifications
| Brand | Scat |
| Part Number | 2-ICR5400-7/16 |
|
Product Line
|
Pro Series
|
|
Beam Style
|
I Beam
|
|
Stroker Clearanced
|
Yes
|
|
Rod Length
|
5.400 in
|
|
Bushed / Press Fit Wrist Pin
|
Bushed
|
|
Small End Bore Diameter
|
0.927 in
|
|
Rod Journal Diameter
|
2.123 in
|
|
Large End Width
|
0.830 in
|
|
Fastener Style
|
Cap Screw
|
|
Fastener Manufacturer
|
ARP
|
|
Fastener Product Line
|
ARP 8740
|
|
Fastener Diameter
|
7/16 in
|
|
Fastener Head Style
|
12 Point
|
|
Fastener Alloy
|
8740
|
|
Fastener Material
|
Chromoly
|
|
Material Processing
|
Shot-Peened
|
|
Forged
|
Yes
|
|
Alloy
|
4340
|
|
Material
|
Steel
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Set of 8
|
