Allstar Standard Roll Cage Kit for GM A-Body ALL22103
Allstar Standard Roll Cage Kit - Full Size GM
Allstar Standard Roll Cage Kit GM A-Body Diagram

Allstar Standard Roll Cage Kit - Full Size GM A-Body

ALL22103 (Not in stock)

Allstar Performance

Regular price $379.99 Sale

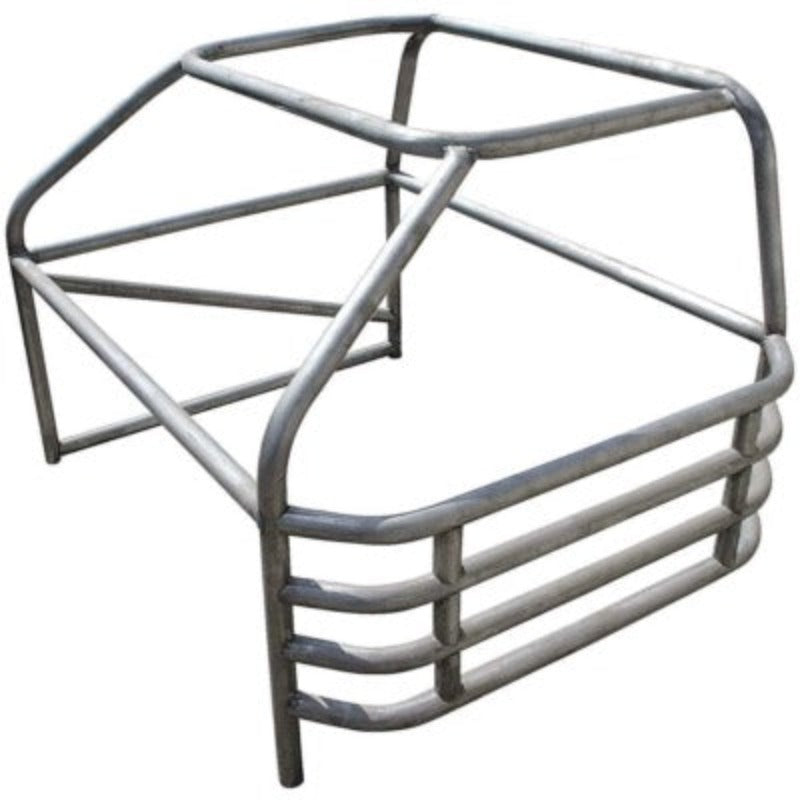

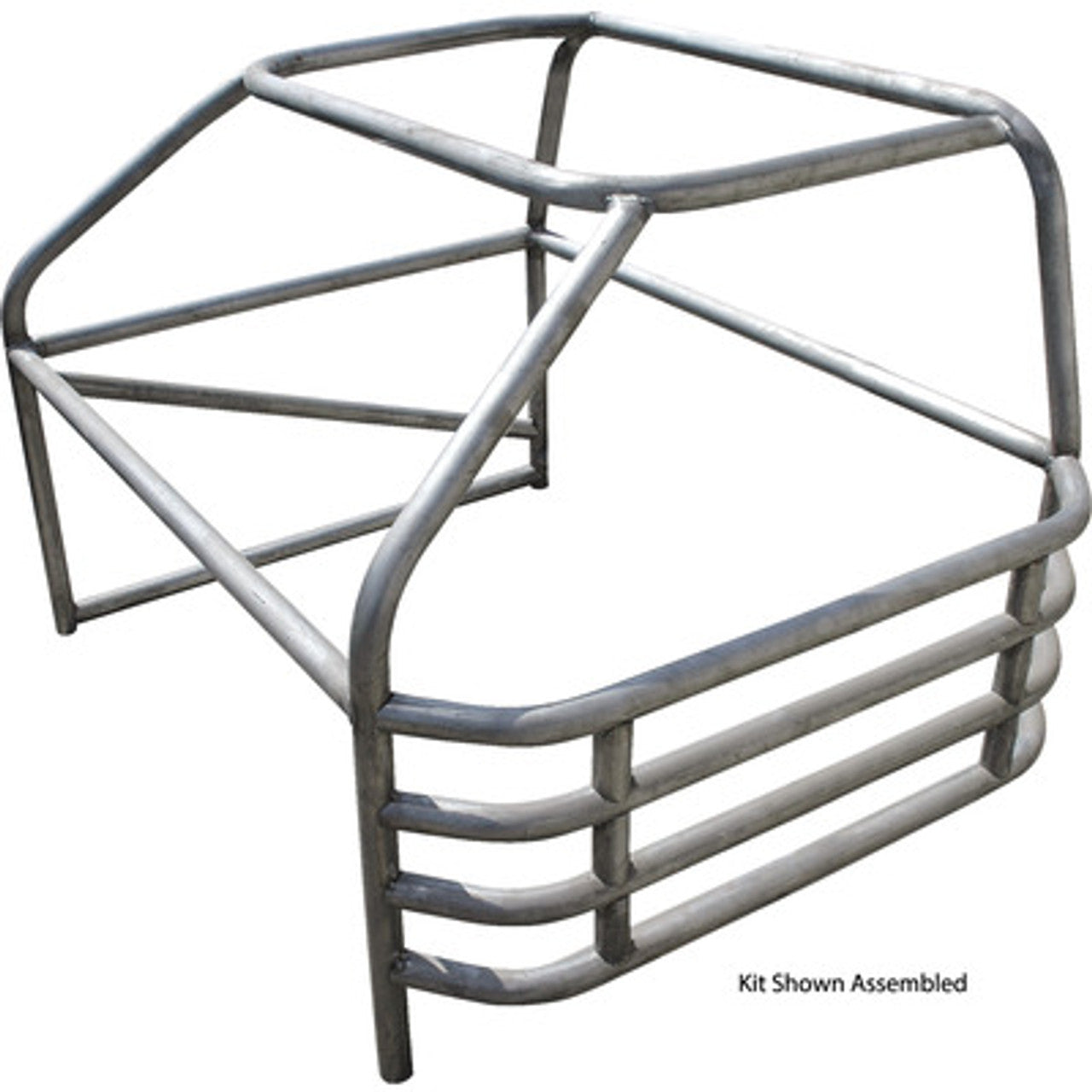

Allstar Performance Standard Full Size GM Roll Cage Kits include all pieces to assemble a standard cage.

  • 1970-77 Monte Carlo, Chevelle, Malibu, etc.
  • Mild steel tubing is 1-3/4" diameter, .095" wall, is notched and has uniform bends
  • Four driver's side curved door bars
  • "Z" type right side door bar and gussets are included
  • Measurements are outside-to-outside
  • MPN:  ALL22103

Note: This kit has four left side door bars and Z-type right side door bars, It also only has a rear dash bar (no cross bracing like deluxe kits) across the back and does not have a bar in the center of the halo as the deluxe kit. Kit includes the following components: ALL99203 (Main Hoop Assembly) and ALL99221 (Component Box).

Specifications

Brand Allstar Performance
Part Number ALL22103
Product Line
Standard
Racing Type
Circle Track
Position
Complete
Number Of Floor Mounting Points
4-Point
Main Hoop Included
Yes
Gussets Included
Yes
Halo Included
Yes
Door Bars Included
Yes
Driver Side Door Bar Style
4 Bar
Passenger Side Door Bar Style
Z-Style
Front Dash Bar Included
Yes
Rear Dash Bar Included
Yes
Windshield Posts Included
Yes
Windshield Post Style
Straight
Tubing Diameter
1-3/4 in
Wall Thickness
0.095 in
Welding Required
Yes
Material
Steel
Color
Natural
Finish
Natural
Quantity
Kit

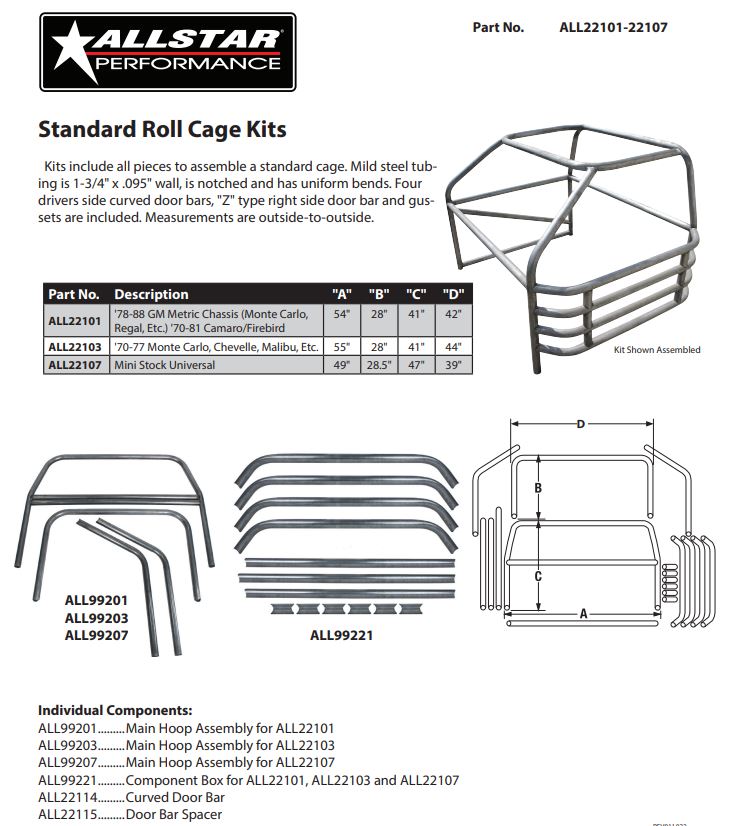

Spec Sheet

Click Here for the Allstar GM Roll Cage Kit ALL22103 Spec Sheet.
