Allstar Deluxe Roll Cage Kit - Chevy Caprice/Impala
ALL22105 (Not in stock)Allstar Performance
Regular price
$449.99

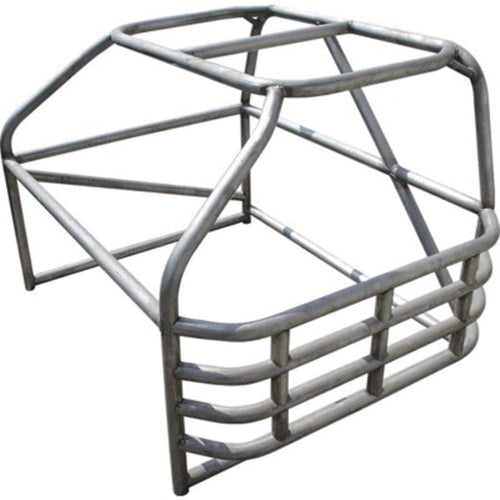

The Allstar Performance Deluxe Roll Cage Kit includes all pieces to assemble a Deluxe Roll Cage.
The main hoop is fitted and tack welded together allowing for changes or custom seat mounts. Curved windshield posts fit closer to windshield pillar increasing driver visibility. The halo is curved and gusseted into the main hoop for maximum width, driver clearance and support.
Mild 1-3/4", .095" wall steel tubing is notched and has uniform bends. Other features include four curved and one straight driver side door bars. "Z" type right side door bars, additional lower cross bar added to main hoop for added side support and assist in seat mounting, and a center halo support. ("A", "B", "C" and "D" measurements are outside-to-outside.)
- Deluxe Roll Cage Kit
- 1977-90 Caprice/Impala
- MPN: ALL22105
Specifications
| Brand | Allstar Performance |
| Part Number | ALL22105 |
|
Product Line
|
Deluxe
|
|
Racing Type
|
Circle Track
|
|
Position
|
Complete
|
|
Number Of Floor Mounting Points
|
4-Point
|
|
Main Hoop Included
|
Yes
|
|
Gussets Included
|
Yes
|
|
Halo Included
|
Yes
|
|
Door Bars Included
|
Yes
|
|
Driver Side Door Bar Style
|
4 Bar
|
|
Passenger Side Door Bar Style
|
Z-Style
|
|
Front Dash Bar Included
|
Yes
|
|
Rear Dash Bar Included
|
Yes
|
|
Windshield Posts Included
|
Yes
|
|
Windshield Post Style
|
Curved
|
|
Tubing Diameter
|
1-3/4 in
|
|
Wall Thickness
|
0.095 in
|
|
Welding Required
|
Yes
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
Diagram
- Outside Dimensions "A": 57"
- Outside Dimensions "B": 28"
- Outside Dimensions "C": 41"
- Outside Dimensions "D": 47"
Spec Sheet
Click here for the Allstar Deluxe Roll Cage Kit Spec Sheet.
