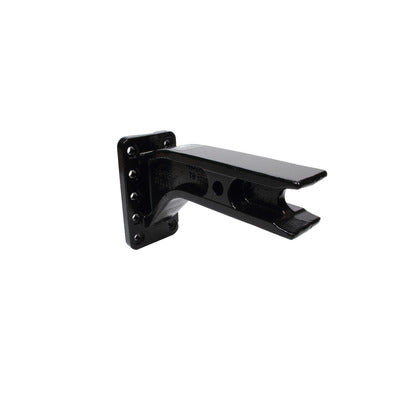

Reese Super Titan Pintle Mount Hitch
Reese Super Titan Pintle Mount Hitch
Regular price
$296.99 USD
Regular price
Sale price
$296.99 USD
Unit price
/
per
SKU:REE38186
Inventory: 5 in stock
Couldn't load pickup availability

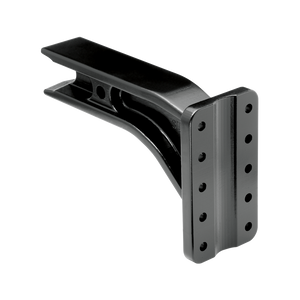

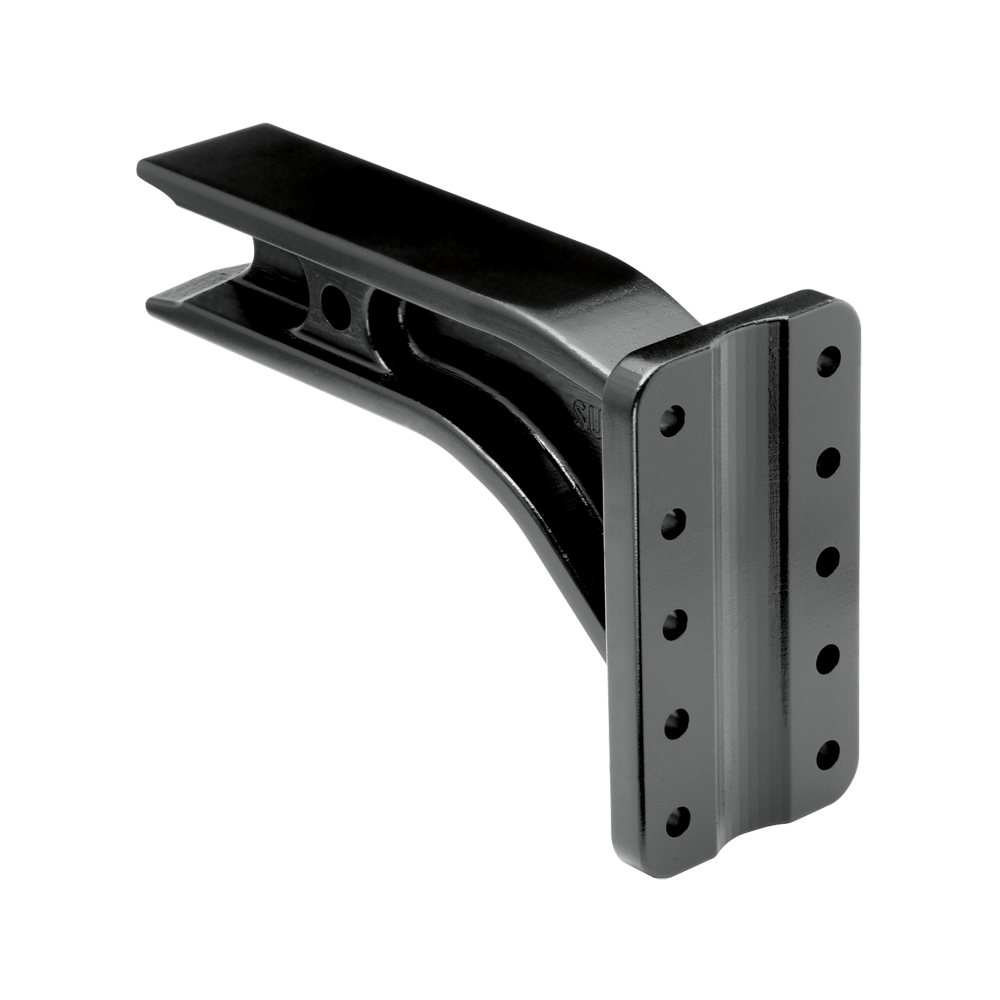

Pintle Mount Hitch - Super Titan - 3 in Hitch - 9 in Long - 25000 lb Capacity - Steel - Black Powder Coat - Each

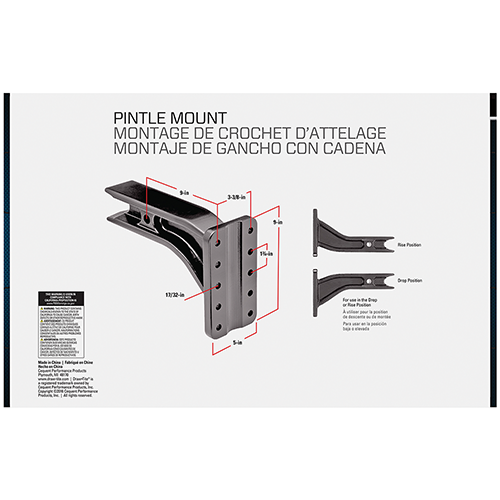

The REESE titan receiver pintle hook mounting plate is designed to fit exclusively with titan receivers that have a 3 In. hitch box opening. The mount hole spacing is 3-3/8 In. left to right and 1-3/4 In. top to bottom.
- Designed for Draw-Tite Heavy Duty 3" receivers (38XXX Series)
- Converts 3" receivers for use with pintle-type trailers, quickly and easily
- Provides mounting for both ball and combo pintle hooks
- Unique pin and clip must be ordered separately (3/4" hitch pin diameter required)
- MPN: 38186
Specifications
Brand: | Draw-Tite |
Part Number: | 38186 |
Warranty: | Limited Lifetime Warranty |
UPC: | 016118072143 |
Shank Length: | 9 in. |
Overall Width: | 5 in. |
Overall Height: | 9 in. |
Sets Of Holes: | 5 |
Dimensions: | 14" L x 9" W x 5" H
(Shipping Dimensions)
|
Weight: | 31.55 lbs. |
Finish: | Black Powder Coat |
Package Type: | Display Label |
Shank Diameter: | 5 in. |
Hole Size: | 17/32 in. |
Shank Type: | Forged |
Capacity: | 25,000 lbs. |
Tongue Weight: | 4,000 lbs. |
