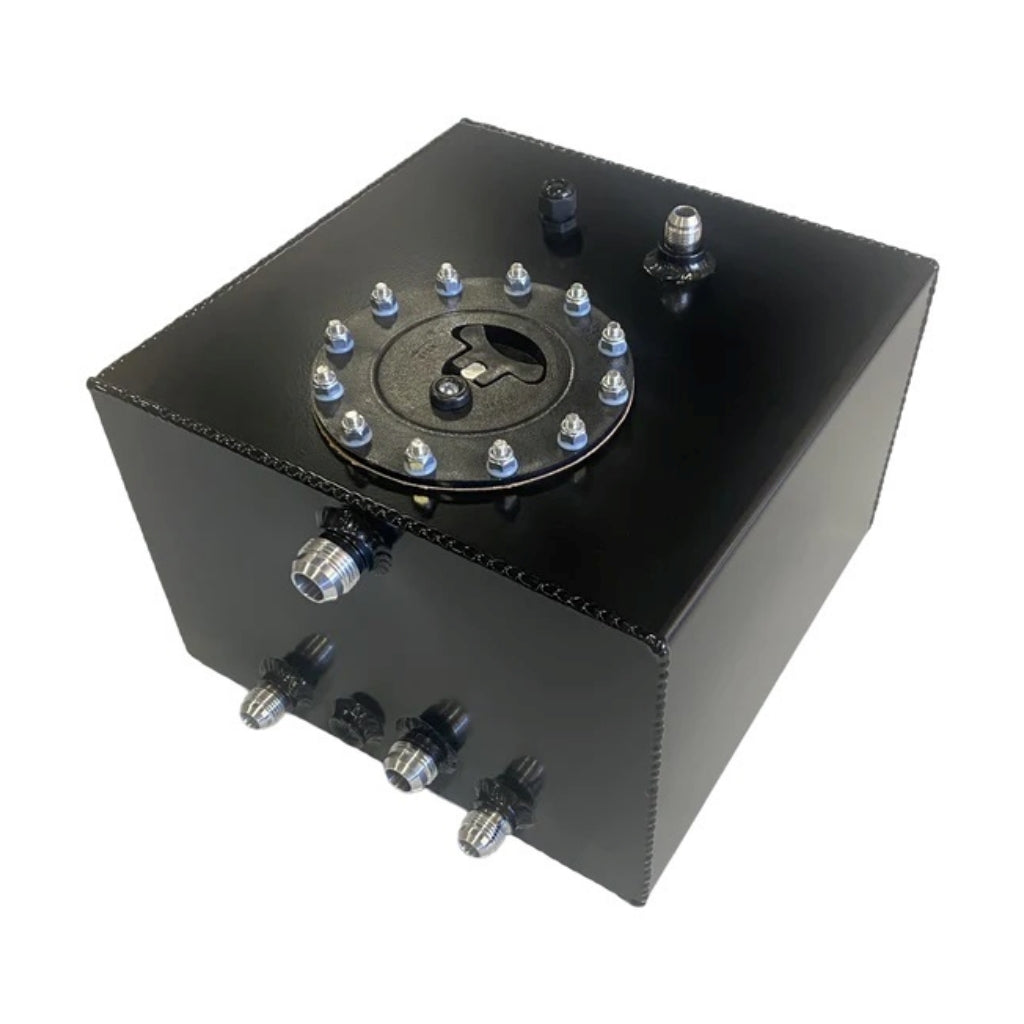

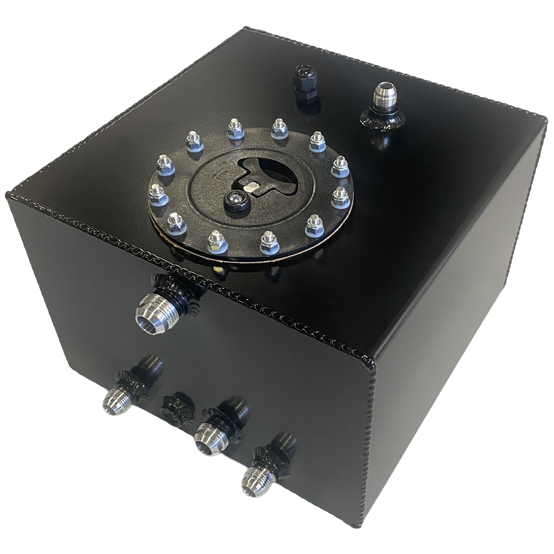

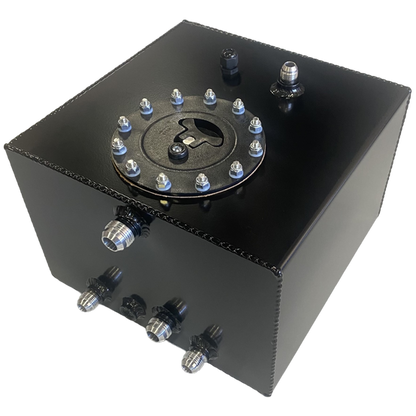

RCI Aluminum Air/Ice Fuel Cooler 5 Gal Tank 2050KD

Innovative, air/ice fuel cooler tanks reduce fuel temperatures by over 40%, significantly increasing horsepower and performance. Each tank is constructed from TIG-welded 5052 aircraft aluminum and features a built-in 1/2" tubing coil that allows circulating fuel in and out of tank, while water is circulated in and out of the tank using an external water pump to air intercooler or Internal Rule 2000 water pump to air intercooler, purchased separately. Each tank includes -10AN fuel inlet and return ports, -12AN water inlet and outlet ports along with provisions for -8AN roll-over/vent, 3/8" NPT drain, and a 12-bolt aircraft-style flush mount lid.

• 5-Gallon Air/Ice Fuel Cooler Tank
• 5 gallons of ice water
• Water Box
• 5 Gallon
• 12" x 12" x 8"
• Length: 12"
• Width: 12"
• Height: 8"

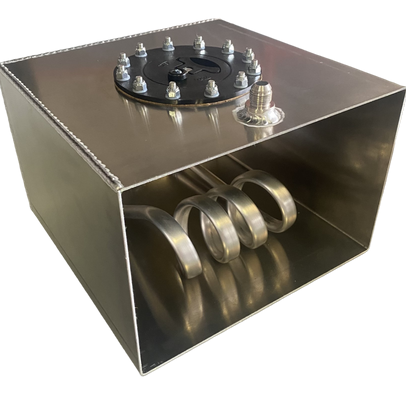

• Built-In 1/2" Tubing Coil circulates ice cold fuel in and out of tank
• 2 Number 10 AN fittings for fuel In and out ports
• 2 Number 12 AN fittings for ICE water in and out to air intercooler
• 1 Number 8 AN Rollover Vent
• 3/8 NPT Drain
• Electrical Wire Pass Through Connector
• Lowers Fuel Temperature by over 40%
• Tig Welded with 5052 Aircraft Aluminum Alloy
• 12 Bolt Heavy Duty Aircraft - Style Flush Mount Lid Assembly
• Works with External Water Pump to Air Intercooler
• Works with Internal Rule 2000 Water Pump to Air Intercooler
• Built In Mounting Bracket for Rule 2000 Water Pump
• Water Pump or Water Pump Hose Not Included
• Aluminum, Natural Finish
• Black Powder Coat
• Sold as Each
• Part Number: 2050KD

Note: Water pump and hose must be purchased separately. Tank includes a built-in mounting bracket for an Internal Rule 2000 water pump to air intercooler.
