All harness systems are constructed using drop-forged steel hardware for ultimate strength and reduced weight. All hardware is cadmium plated for added protection. 3" premium polyester webbing is used and all belts are box-x pattern sewn to ensure uniform stitch length and strength. Belts and hardware ends are routinely tested to verify compliance with SFI 16.1 standards.
This harness set has narrow shoulder belts to better fit a head & neck restraint (HNR) like a HANS device.
- Exceeds SFI 16.1 Rating (SFI Tags affixed)
- NOT D.O.T. / FMVSS certified for highway use
- Premium 3" Polyester Webbing
- Twin Individual Shoulder Belts
- 2" Shoulder Accomodates HNR / HANS Device
- Pull Down Style Lap Belt
- 5 Point Design - Single 2" Crotch Sub Strap
- 3" Hardware Ends Installed
- Double Adjustable for Ease of Installation
- Wrap Around or Bolt-in Mounting
- Drop-Forged Steel Hardware (no bolts)
- Shoulders Adjust from 20" to 62"
- Lap Belt Adjusts 20" to 60"
- Color: Black
- Can be re-webbed (SFI) upon expiration
Specifications
|
Brand
|
RaceQuip
|
|
SFI Rating
|
16.1
|
|
Number of Points
|
5 Point
|
|
Shoulder Style
|
Individual
|
|
Hans Compatible
|
Yes
|
|
Lap Belt Ends
|
Bolt In | Wrap Around
|
|
Lap Belt Mount
|
Floor | Roll Bar
|
|
Lap Belt Length
|
20-60 in
|
|
Lap Belt Width
|
3 in
|
|
Lap Belt Pull Up/Down
|
Pull Down
|
|
Shoulder Belt Ends
|
Bolt in | Wrap Around
|
|
Shoulder Belt Mount
|
Roll Bar
|
|
Shoulder Belt Length
|
20-62 in
|
|
Shoulder Belt Width
|
2 in
|
|
Shoulder Belt Pull Up/Down
|
Pull Down
|
|
Anti Submarine Belt Ends
|
Bolt In | Wrap Around
|
|
Latch Style
|
Latch & Link
|
|
Color
|
Black
|
|
Quantity
|
Kit
|
Colors:

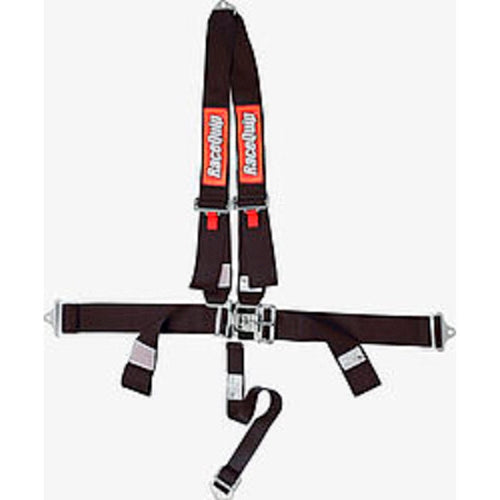

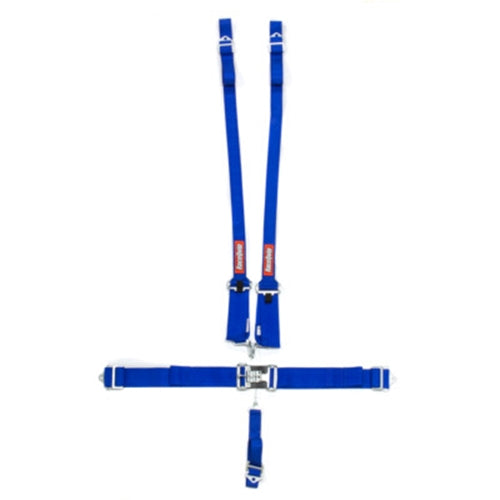

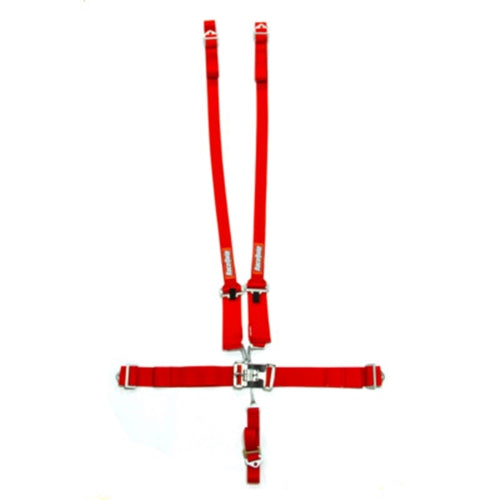

- Part Numbers: 717007 (Black); 717017 (Red); 717027 (Blue)
