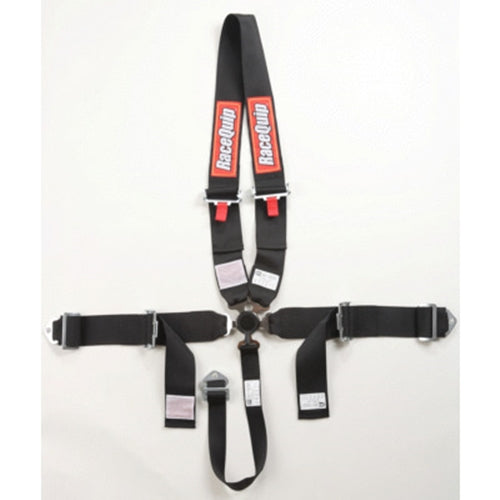

RaceQuip Dragster SFI U-Style Camlock Harness Set
RaceQuip Dragster SFI U-Style Camlock Harness Set

RaceQuip Sportsman Camlock Dragster Harness

RQP748008 (8 in stock)


Regular price $189.99 Sale

The RaceQuip Sportsman Camlock Dragster harness set provides the best value in a purpose-built rail dragster racing quick release belt set. These harness sets offer loads of features yet they are priced affordably for the grassroots racer. The RaceQuip Sportsman Series Dragster Camlock belt set comes in a four (4) point configuration with a pull-up lap belt design. The shoulder harness is one continuous 3" belt that wraps around the belt bar behind the driver's head in a rail type dragster chassis. These harness sets exceed the SFI 16.1 specification. Like all RaceQuip harness sets, they can be rewebbed and SFI certified after the expiration date. RaceQuip starts with a lightweight aluminum alloy cam buckle that features an easy engagement cone for snapping the belts into place. Precise internal spring pressure allows a positive feel on the 45˚ (right or left) unlatch lever movement without fear of accidental opening. Next, the drop-forged steel buckle hardware is sewn onto the premium 3” polyester webbing. RaceQuip's proprietary polyester blend webbing is “transverse mono filament woven”, which means that there are mono filament fibers inter-woven into the straps in a pattern that transverses the standard weave. This design accomplishes two tasks - added strength and smoother edges on the belts. The harness sets also feature premium, non-slip steel shoulder adjusters with easy lift grips. The steel lap belt adjusters utilize an anti-slip tensioner device as well. Heavy-duty drop-forged steel slide bars and 3" bolt on ends come already installed, but they can be easily removed if you prefer to mount your lap and crotch belts by wrapping them around a rollbar. Belt adjustment lengths are 20” to 40” for shoulders and 20” to 60” for the lap belt. This RaceQuip Camlock Harness is available in black & red.
  • Lightweight Aluminum Alloy Cam Buckle
  • Exceeds SFI 16.1 Rating (SFI Tags Affixed)
  • Designed for Rail Type Dragster Chassis
  • NOT D.O.T. / FMVSS Certified for on Highway Use
  • "U" Style Continuous Shoulder Belt
  • Single 2" Crotch Strap for 4-point Installation
  • Cam Buckle Stays Affixed to Crotch Strap
  • Pull Up Lap Belt Adjusters
  • Wide Engagement Cone For Easy Snap In
  • Precise Spring Pressure for a Positive Feel
  • 45° (right or left) Unlatch Movement Mitigates Accidental Opening
  • Heavy-Duty Drop-Forged Steel Hardware Ends Installed (no bolts)
  • Wrap Around or Bolt-in Mounting (Not Shoulder)
  • Premium 3” Polyester Webbing
  • Transverse Mono Filament Woven for Increased Strength and Smoother Edges
  • Shoulder Belt Adjustment Length is 20" to 40"
  • Lap Belt is Adjustable from 20" to 60"
  • Can be re-webbed (SFI Certification) upon expiration
  • Color: Black


Part Number
SFI Rating
Number of Points
5 Point
Shoulder Style
Lap Belt Ends
Bolt In | Wrap Around
Lap Belt Mount
Floor | Roll Bar
Lap Belt Length
20-60 in
Lap Belt Width
3 in
Lap Belt Pull Up/Down
Pull Up
Shoulder Belt Ends
Wrap Around
Shoulder Belt Mount
Roll Bar
Shoulder Belt Length
20-40 in
Shoulder Belt Width
3 in
Shoulder Belt Pull Up/Down
Pull Down
Anti Submarine Belt Ends
Bolt In | Wrap Around
Latch Style
