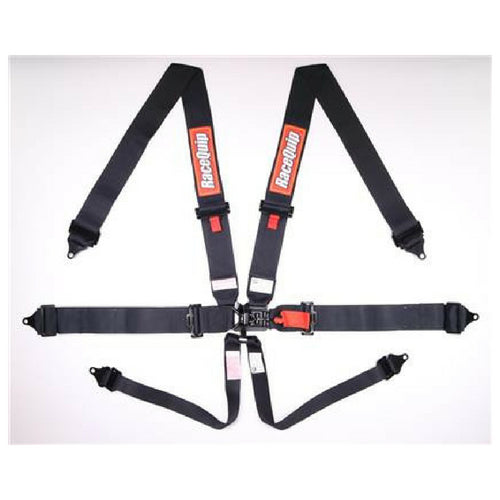

RaceQuip 6-Point SFI Latch & Link Harness Set
RaceQuip 6-Point SFI Latch & Link Harness Set

RaceQuip 6-Point SFI Latch & Link Harness Set

RQP712002 (2 in stock)

RaceQuip

Regular price $122.99 Sale

RaceQuip’s Latch & Link 6-point auto racing harness set has twin individual shoulder belts and is manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60".

All RaceQuip 712 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all of the belts into place by snapping down into a detent. Both shoulder belts and the dual sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all of the pieces in place.

Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the supplied ends (bolts not included). Snap hook ends and eyebolts are sold separately if the user wishes to install belts in that manner.

All SFI 16.1 rated RaceQuip harness sets can be re-webbed and re-certified upon expiration. Available in black or red - one "set" of seat belts equals one seat.

Specifications

Brand
RaceQuip
SKU
712002 (Black)
SFI Rating
16.1
Number of Points
6 Point
Shoulder Style
Individual
Lap Belt Ends
Bolt In | Wrap Around
Lap Belt Mount
Floor | Roll Bar
Lap Belt Length
20-60 in
Lap Belt Width
3 in
Lap Belt Pull Up/Down
Pull Down
Shoulder Belt Ends
Bolt in | Wrap Around
Shoulder Belt Mount
Roll Bar
Shoulder Belt Length
20-62 in
Shoulder Belt Width
3 in
Shoulder Belt Pull Up/Down
Pull Down
Anti Submarine Belt Ends
Bolt In | Wrap Around
Latch Style
Latch & Link
Color
Black
Quantity
Kit

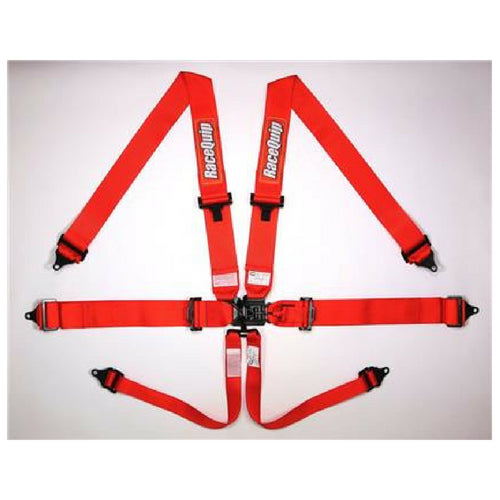

  • Part Numbers: 712002 (Black) and 712012 (Red)
