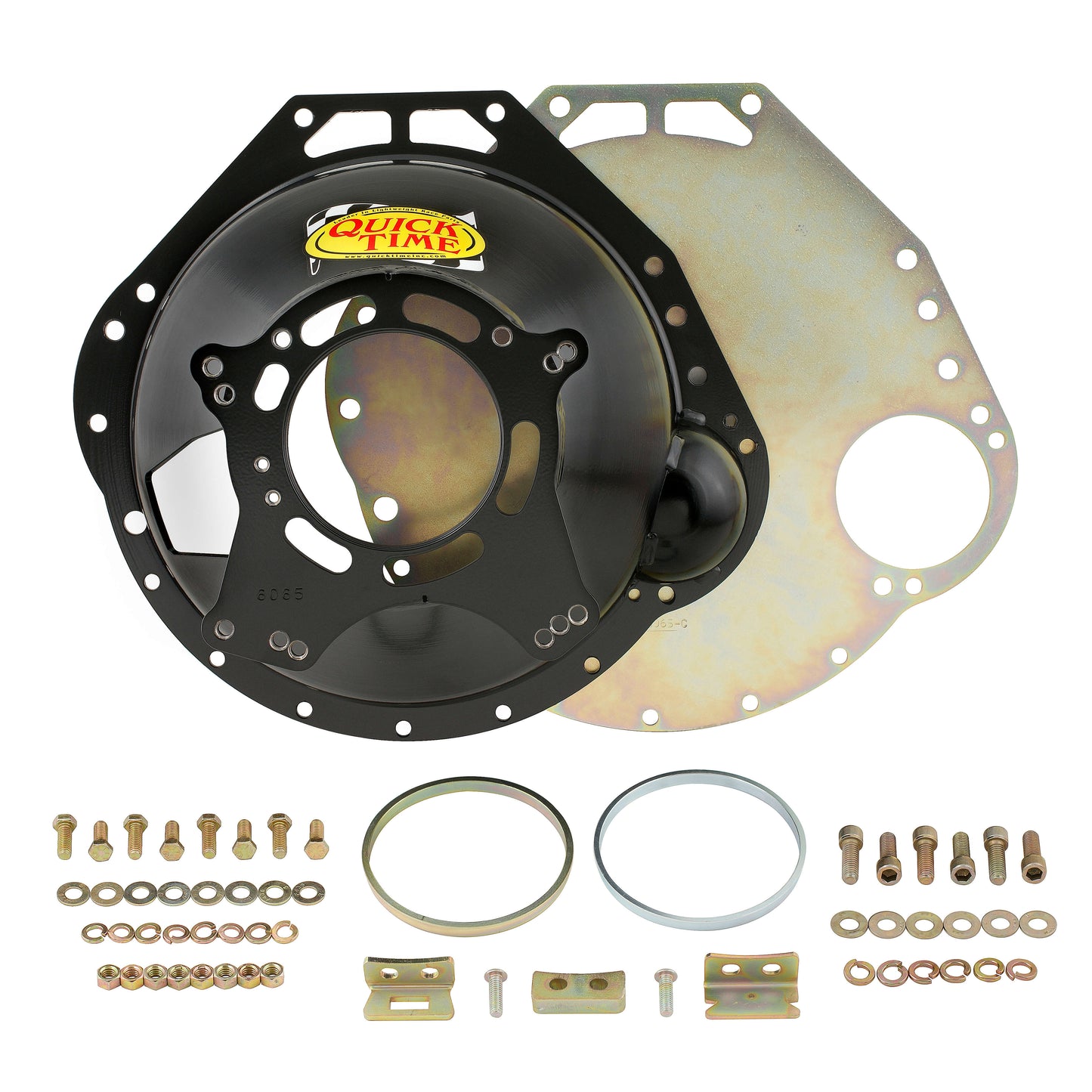

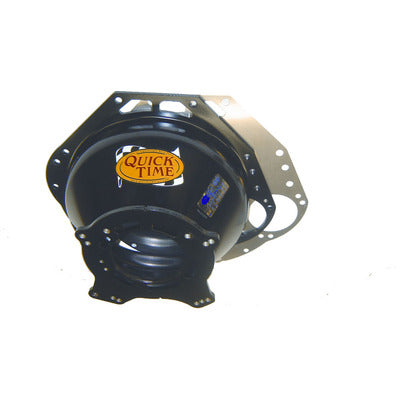

The Quick Time RM-6065 bellhousing connects a small block Ford engine to a Ford TKO 500-600, TR3550, or T5 Mustang (standard length input shaft) transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design and Process
- Note: Transmission Mounting Bolts not included
Specifications
| Brand |
Quick Time |
| Certification |
6.1 SFI |
| Clutch Operation |
Hydraulic |
| Color |
Black |
| Emission Code |
5 |
| Engine |
Ford 289 |
|
Ford 302 |
|
Ford 351C |
|
Ford 351W |
|
Ford Small Block V8 |
| Engine Make |
Ford |
| Engine Plate |
RM-6065-C |
| Finish |
Semi-gloss |
| Flywheel |
157 Tooth |
| Height |
6.925 inch |
| Make |
Ford |
| Material |
Steel |
| Product Type |
Bellhousing |
| Trans Bore |
4.85 / 4.91 / 5.12 |
| Transmission |
T5 Mustang |
|
TKO 500/600 Ford |
|
TR3550 |
| Transmission Type |
Manual |
| Warranty |
Limited 90 Day Warranty |
| Weight |
22# |
| Part Number |
RM-6065 |
