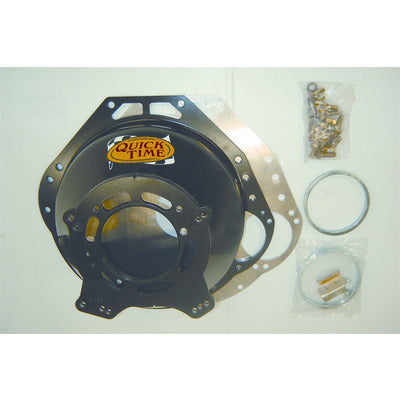

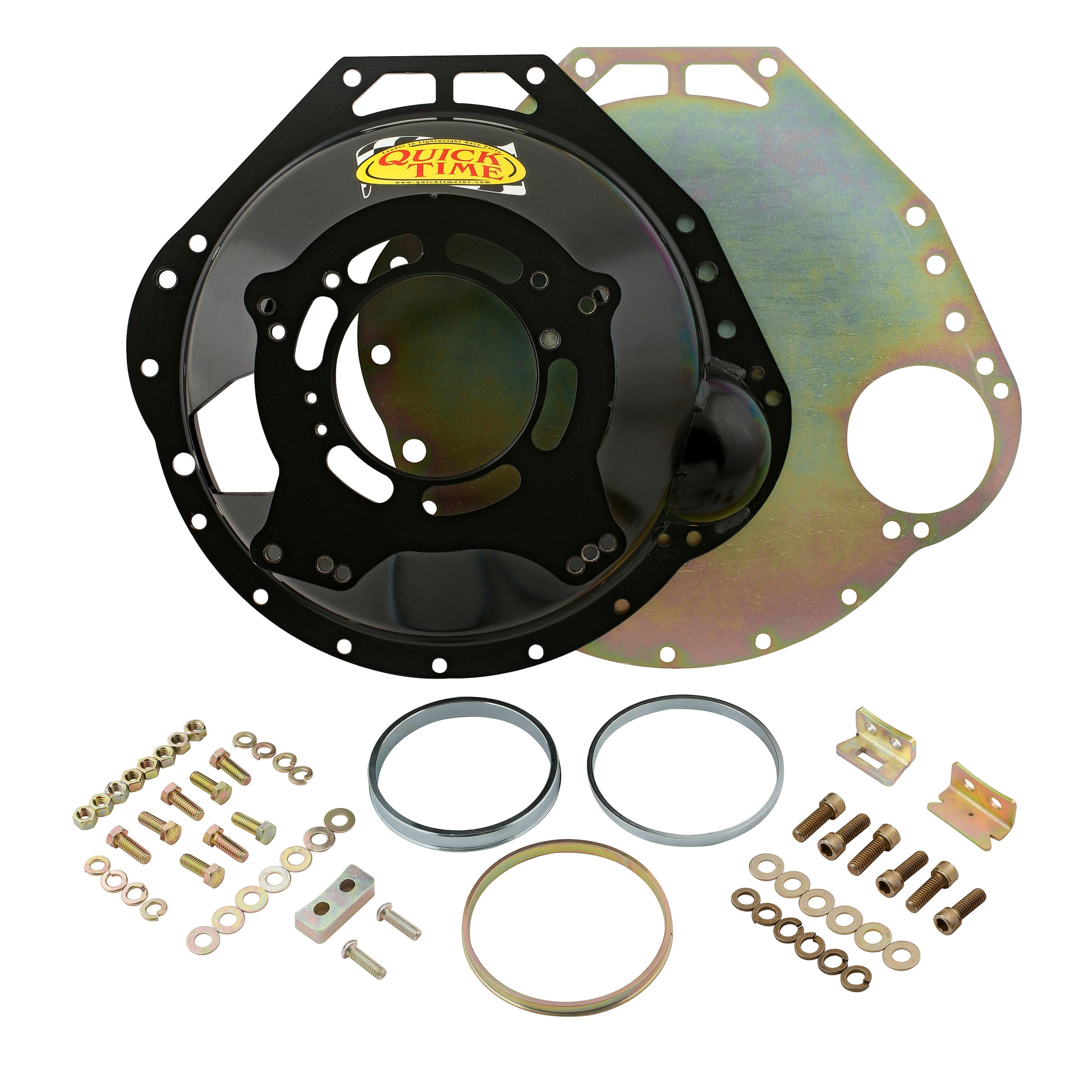

Quick Time Bellhousing SBF 5.0/5.8L to Toploader/Borg T10
Quick Time Bellhousing SBF 5.0/5.8L to Toploader/Borg T10
SKU:QTMRM-6063
Inventory: 1 in stock
Couldn't load pickup availability
The Quick Time RM-6063 bellhousing connects Small Block Ford 289/302/351C/351W Engines to Ford toploader, Borg Warner T10, and Tremec TKO 500/600 transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire.
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
- MPN: RM-8031-164
Note: Transmission Mounting Bolts not included
| Brand | Quick Time |
|---|---|
| Certification | 6.1 SFI |
| Clutch Operation | Hydraulic |
| Color | Black |
| Emission Code | 5 |
| Engine | Ford 289 |
| Ford 302 | |
| Ford 351C | |
| Ford 351W | |
| Ford Small Block V8 | |
| Engine Make | Ford |
| Engine Plate | RM-6065-C |
| Finish | Semi-gloss |
| Flywheel | 157 Tooth |
| Height | 6.300 inch |
| Make | Ford |
| Material | Steel |
| Product Type | Bellhousing |
| Trans Bore | 4.685 / 4.85 / 4.91 / 5.12 |
| Transmission | Ford Toploader |
| T10 | |
| TKO 500/600 Ford - Short Shaft | |
| Transmission Type | Manual |
| Warranty | Limited 90 Day Warranty |
| Weight | 22# |
| Part Number | RM-6063 |
