Quick Time Bellhousing GM LS1 to TKO/T5/TR-3550 Trans SFI
Quick Time Bellhousing GM LS1 to TKO/T5/TR-3550 Trans SFI

Quick Time Bellhousing GM LS1 to TKO/T5/TR-3550 Trans SFI

QTMRM-6037 (Not in stock)

Quick Time

Regular price $971.95 Sale

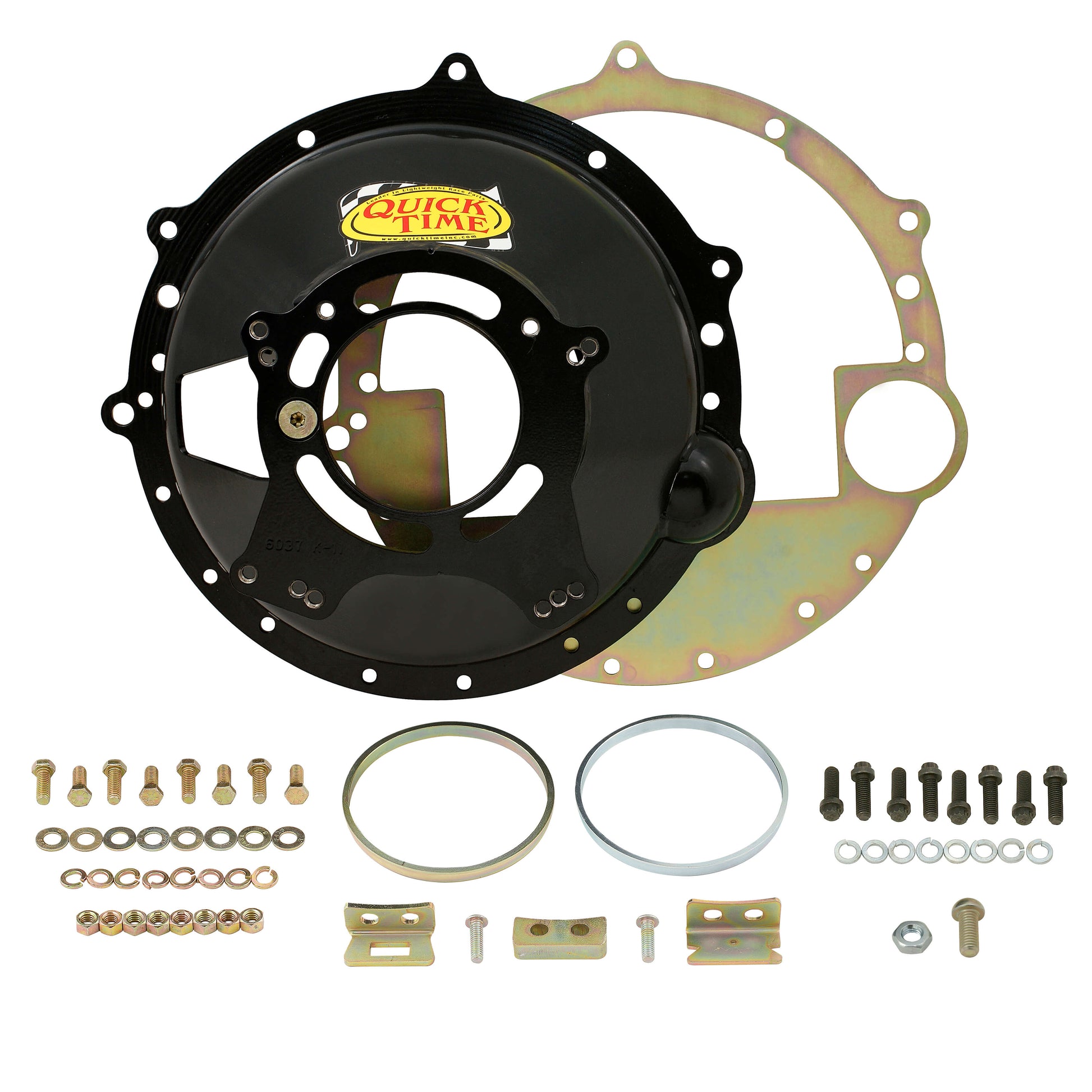

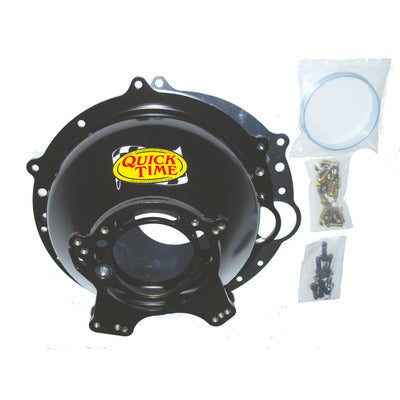

This Quick Time's bellhousing is designed for street, strip and circle track applications. Built from high quality grade steel, the cone is spun not stamped, and rolled making this bellhousing dimensionally stable and accurate. This bellhousing will fit all Chevy LS series engines to Ford TKO 500-600, T5 Mustang, TR3550, and Jerico 4/5 speed transmissions. 6.925 in deep this bellhousing will clear 168 tooth flywheel with 11 in clutch. Universal transbore is 4.685/4.910 in. Weighs 22 pounds. S.F.I. 6.1 certified. Pivot ball, block plate and Grade 8 hardware included. Other applications available.

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
  • MPN: RM-6037

Specifications

Brand Quick Time
Certification 6.1 SFI
Clutch Diameter 11 inch
Clutch Operation Mechanical or Hydraulic
Color Black
Emission Code 5
Engine Chevy LT1
Chevy LT4
GM Small Block Gen III/IV (LS Based)
Engine Make Chevrolet
Engine Plate RM-6037-C
Flywheel 153/168 Tooth
Height 6.925 inch
Make Chevrolet
Material Steel
Product Type Bellhousing
SFI Certification 6.1
Starter OE
Trans Bore 4.85 / 4.91 / 5.12
Trans. Bore Diameter universal trans bore 4.685/4.910 in.
Transmission T5 Mustang
TKO 500/600 Ford
TR3550
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22 pounds
Part Number RM-6037
