Quick Time Bellhousing Chevy 168 Tooth to T56 SFI 6.1
Quick Time Bellhousing Chevy 168 Tooth to T56 SFI 6.1
SKU:QTMRM-6023
Out of stock
Couldn't load pickup availability

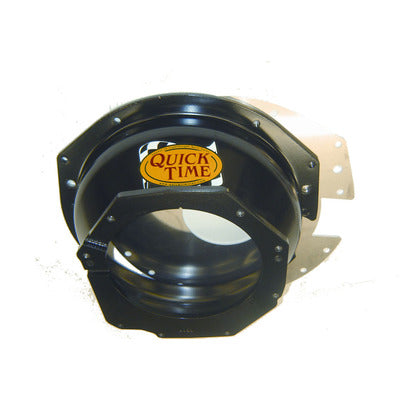

The Quick Time RM-6023 bellhousing connects a small block and big block Chevy engines to a T56 LS-1 Chevy, T-56 Magnum or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
- MPN: RM-6023
Brand | Quick Time |
---|---|
Certification | 6.1 SFI |
Clutch Diameter | 11" |
Clutch Operation | Hydraulic |
Color | Black |
Emission Code | 5 |
Engine | Chevy Big Block V8 |
Chevy LT1 | |
Chevy Small Block V8 | |
Engine Make | Chevrolet |
Engine Plate | RM-6023-C |
Finish | Semi-gloss |
Flywheel | 153/168 Tooth |
Height | 5.950 inch |
Make | Chevrolet |
Material | Steel |
Product Type | Bellhousing |
SFI Certification | 6.1 |
Trans Bore | N/A |
Trans. Bore Diameter | N/A |
Transmission | T56 GM |
T56 Magnum | |
Transmission Type | Manual |
Warranty | Limited 90 Day Warranty |
Weight | 22# |
Part Number | RM-6023 |
