Quick Time Bellhousing Chevy V8 168 Tooth w SFI 6.1
Quick Time Bellhousing Chevy V8 168 Tooth w SFI 6.1

Quick Time Bellhousing Chevy V8 168 Tooth w SFI 6.1

QTMRM-6022 (11 in stock)

Quick Time

Regular price $899.99 Sale

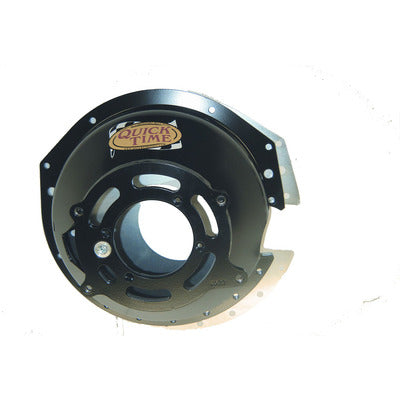

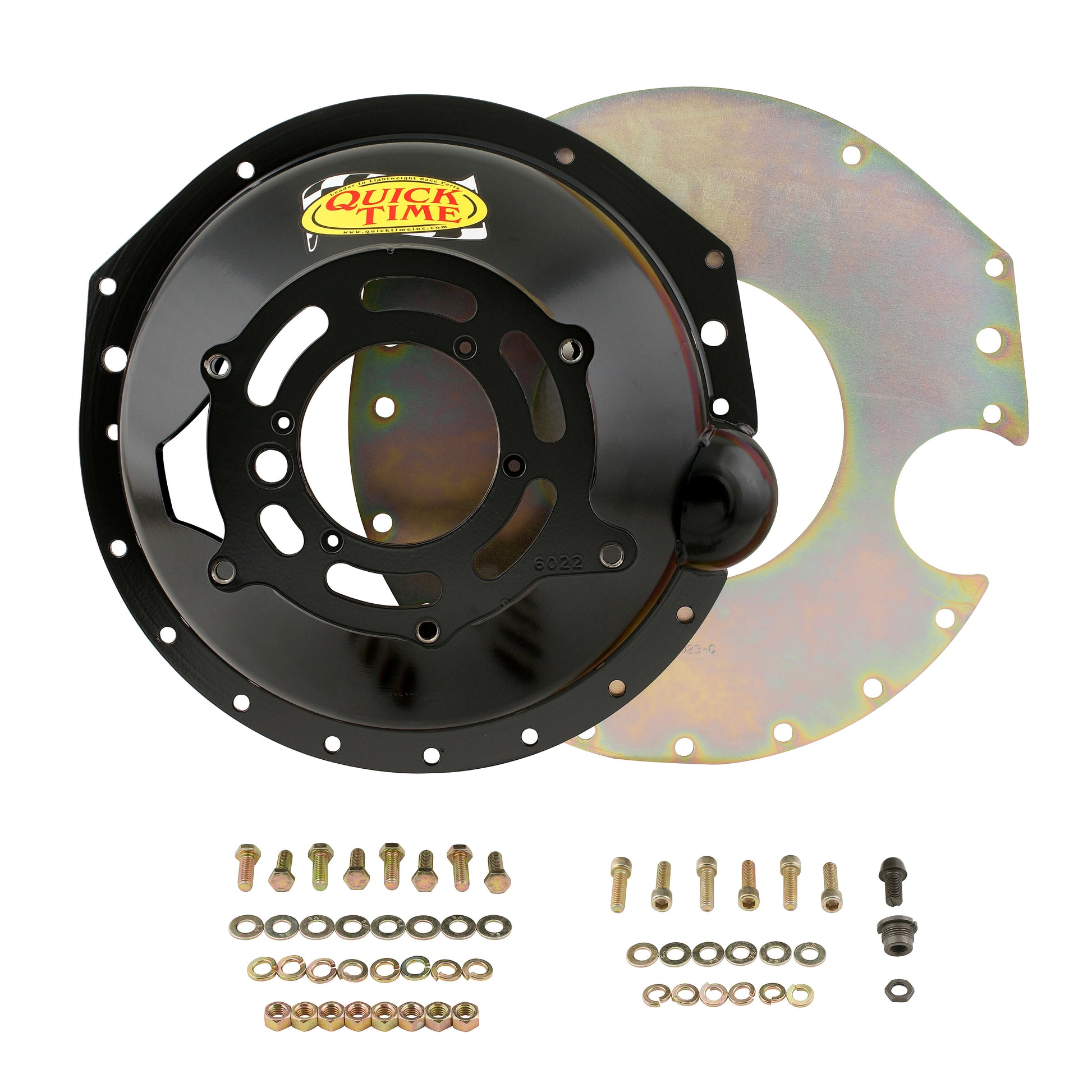

The Quick Time RM-6022 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)

  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes

  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available

  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings

  • 100% built in the USA

  • Patent on 16 points of Bellhousing Design & Process

Specifications

Brand Quick Time
Certification 6.1 SFI
Clutch Diameter 11"
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevy Big Block V8
Chevy LT1
Chevy Small Block V8
Engine Make Chevrolet
Engine Plate RM-6023-C
Finish Semi-gloss
Flywheel 153/168 Tooth
Height 6.290 inch
Make Chevrolet
Material Steel
Product Type Bellhousing
SFI Certification 6.1
Trans Bore 4.687
Trans. Bore Diameter N/A
Transmission Bert Racing
Brinn Racing
Falcon
Jerico
Muncie
Richmond
Saginaw
T10
T5 Chevy
TKO 500/600 Chevy
Transmission Type Manual
Warranty Limited 90 Day Warranty
Weight 22#
Part Number RM-6022
