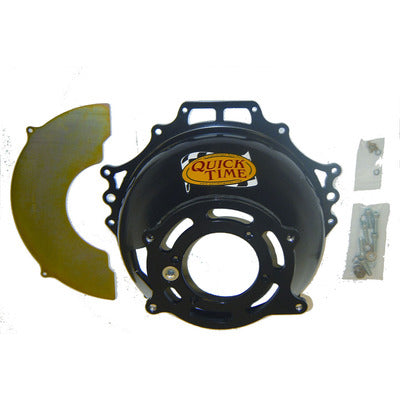

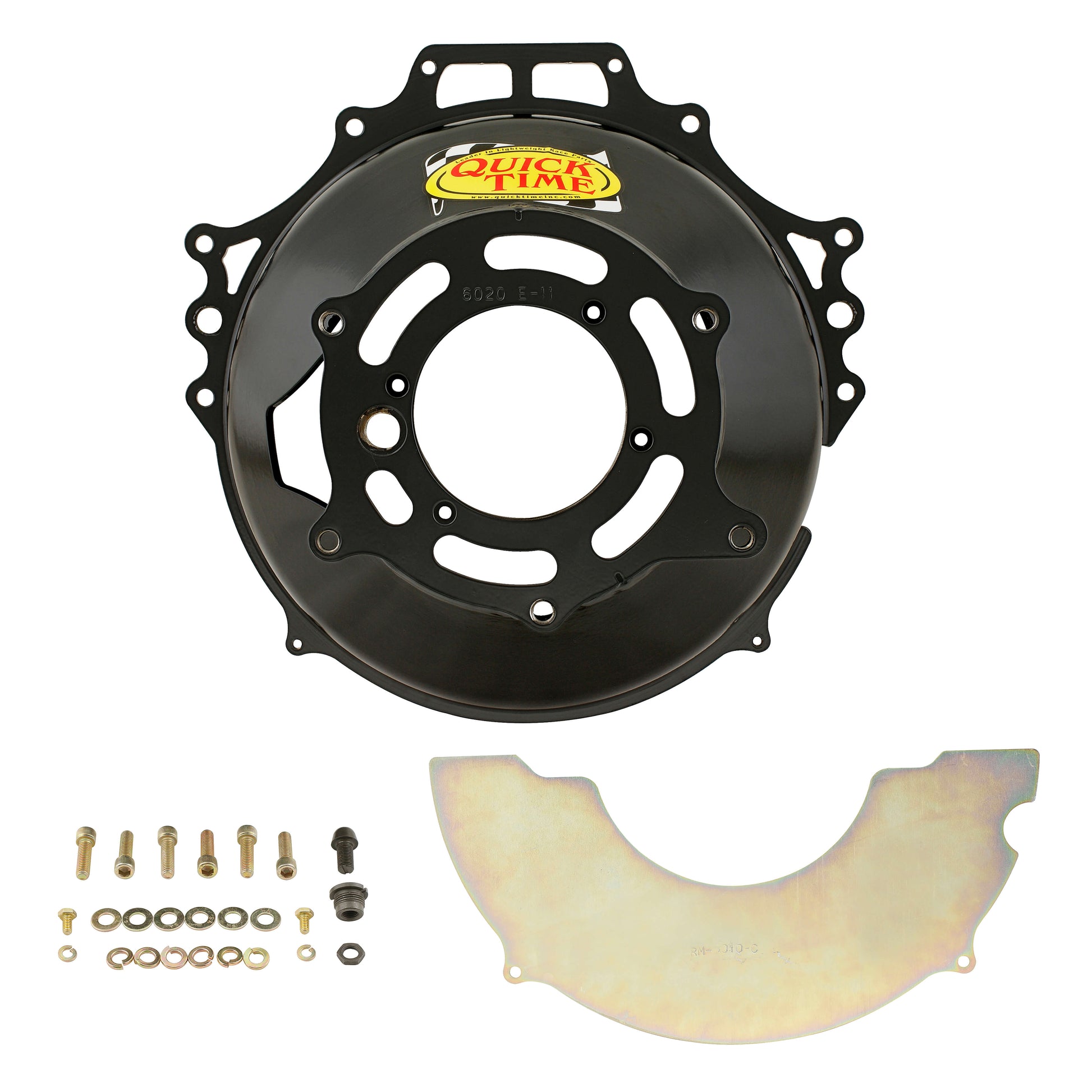

This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Fits 153 tooth flywheel and 10.5 in clutch. Is 6.29 in deep. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included. Note: Must use mini starter. Non S.F.I. approved.
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
- Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of Bellhousing Design & Process
- MPN: RM-6020
Specifications
| Brand |
Quick Time |
| Certification |
None |
| Clutch Diameter |
10.5 |
| Clutch Operation |
Hydraulic |
| Color |
Black |
| Emission Code |
5 |
| Engine |
Chevy Big Block V8 |
|
Chevy Small Block V8 |
| Engine Make |
Chevrolet |
| Engine Plate |
RM-6010-C |
| Finish |
Semi-gloss |
| Flywheel |
153 Tooth |
| Height |
6.290 inch |
| Make |
Chevrolet |
| Material |
Steel |
| Product Type |
Bellhousing |
| SFI Certification |
Not SFI Certified |
| Trans Bore |
4.687 |
| Trans. Bore Diameter |
4.687 |
| Transmission |
Bert Racing |
|
Brinn Racing |
|
Falcon |
|
Jerico |
|
Muncie |
|
Richmond |
|
Saginaw |
|
T10 |
|
T5 Chevy |
|
TKO 500/600 Chevy |
| Transmission Type |
Manual |
| Warranty |
Limited 90 Day Warranty |
| Weight |
18# |
| Part Number |
RM-6020 |
