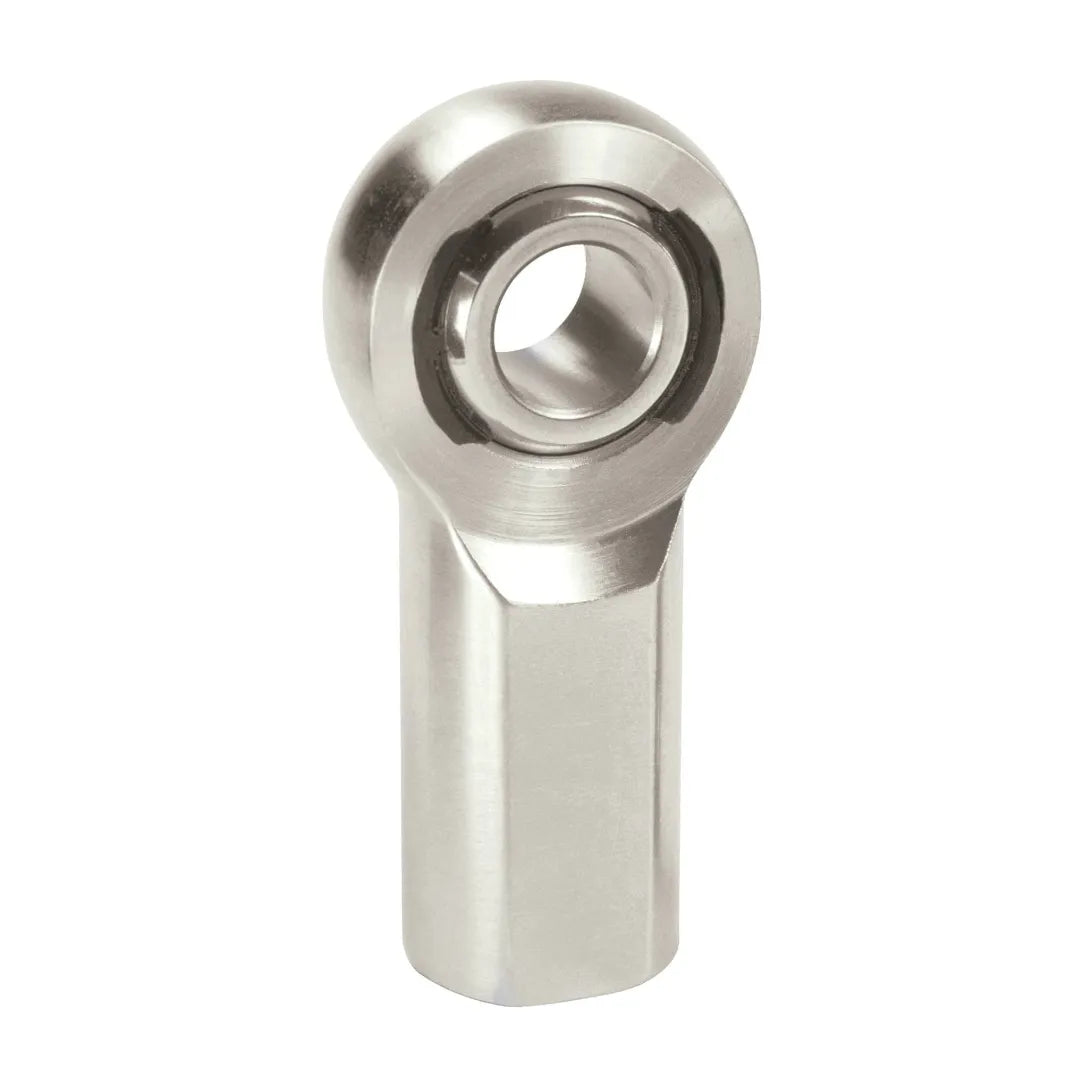

QA1 EXF Series Rod End EXFR8

“EXF” Series EXFR8 EX Series Carbon Loader Slot Rod End, 1/2" Bore, 1/2"-20 RH Female Thread, PTFE Lined

QA1’s EXF Series high-strength carbon steel female rod ends include a unique loader slot design and have increased cross-sectional thickness. As an economical alternative to alloy/chromoly, QA1 is the exclusive provider of carbon steel loader slot rod ends. The reinforced Nylon injection molded race with self-lubricating PTFE won't pound out like other styles and helps keep dirt and debris out for excellent performance. This design results in metal-to-metal support for heavy shock loads and smooth operation for low loads, making it an excellent solution for a broad range of applications. When even more strength is needed, consider QA1 X Series rod ends. Available with right or left-hand threads. Stud configurations are also available.

BALL: 52100 Bearing Steel, Heat Treated, Precision Ground, Hard Chrome Plated
RACE: Self-Lubricating Reinforced Nylon 12 with PTFE
BODY: Carbon Steel (Alloy/Chromoly Steel - Mfr.'s Option), Protective Coated for Corrosion Resistance
FEATURES: Metal-to-Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength

Rod End, EXF Series, Spherical, 1/2 in Bore, 1/2-20 in Right Hand Female Thread, PTFE Lined, Steel, Zinc Oxide - Sold as Each - Brand: QA1 - Part Number: EXFR8
