Pypes Crossmember Back Exhaust SGF970E - 1975-81 GM F/X Body
PYPSGF970E (Not in stock)Pypes Performance Exhaust
Regular price
$1,224.95
Sale

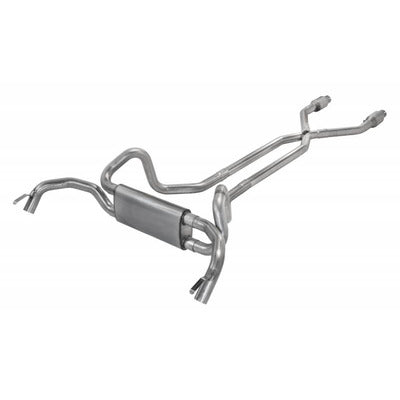

1975-81 2.5" F/X-Body Crossflow with X-Pipe System SGF970E
This is the first system on the market with a true 'straight thru' flow path. That means that even though there is one muffler there is two completely separate flow paths for each side of the exhaust. There is absolutely no loss of flow thru the muffler. All other systems include a flow path that create turbulence and restricted flow in the muffler. This header back system includes a driveshaft tunnel X crossover kit for maximum ground clearance even on lowered vehicles. Manifold downpipes are available as an option for those that do not have headers. Great for even the highest performance(up to 600hp) applications where ground clearance and OEM 'look' is a priority.
Pipes and muffler are 409 stainless steel. This is the last exhaust system you will ever need for your car!
Tips are NOT included with the system. EVT49 is for 'behind the tire' exit. EVT58 for 'out the back' cars. EVT10 splitters (also requires TGF20E) for 76-81 owners.
- Crossmember-Back Exhaust
- Dual Race Pro Muffler In a Single Casing
- Utilizes X-pipe design
- Dual Exit Tailpipes
- 409 Stainless Steel Construction
- 2.5" mandrel bent pipe
- Comes with catalytic converters
- System includes Dual Race Pro Muffler In a Single Casing
- GM F Body 1975-1981
- Lifetime Limited Warranty
Specifications
|
Brand
|
Pypes Performance Exhaust
|
|
Part Number
|
SGF970E
|
|
Product Line
|
Race Pro
|
|
Style
|
Header Back
|
|
Exit Quantity
|
Dual
|
|
Exit Location
|
Back
|
|
Exit Side
|
Driver / Passenger
|
|
Intermediate Pipe Included
|
Yes
|
|
Intermediate Pipe Diameter
|
2-1/2 in
|
|
Intermediate Pipe A Quantity
|
2
|
|
Catalytic Converters Included
|
Yes
|
|
Tailpipes Included
|
Yes
|
|
Tailpipes Diameter
|
2-1/2 in
|
|
Tailpipe A Quantity
|
2
|
|
Tailpipe End Style
|
Turn Down
|
|
Muffler Included
|
Yes
|
|
Muffler Style
|
Turbo
|
|
Muffler A Shape
|
Oval
|
|
Muffler Product Line
|
Race Pro
|
|
Muffler A Inlet Quantity
|
2
|
|
Muffler A Inlet Diameter
|
2-1/2 in
|
|
Muffler A Inlet Location
|
Left / Right
|
|
Muffler A Outlet Quantity
|
2
|
|
Muffler A Outlet Diameter
|
2-1/2 in
|
|
Muffler A Outlet Location
|
Left / Right
|
|
Muffler Quantity
|
1
|
|
Hangers Included
|
Yes
|
|
Clamps Included
|
Yes
|
|
Clamps Style
|
U-Bolt Clamp
|
|
Hardware Included
|
Yes
|
|
Alloy
|
409
|
|
Material
|
Stainless
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
Fitment
- 1981 Chevrolet Camaro
- 1981 Pontiac Firebird
- 1980 Chevrolet Camaro
- 1980 Pontiac Firebird
- 1979 Chevrolet Camaro
- 1979 Pontiac Firebird
- 1978 Chevrolet Camaro
- 1978 Pontiac Firebird
- 1977 Chevrolet Camaro
- 1977 Pontiac Firebird
- 1976 Chevrolet Camaro
- 1976 Pontiac Firebird
- 1975 Chevrolet Camaro
- 1975 Pontiac Firebird
- Chevrolet - Camaro - 67-81 Camaro
- Pontiac - Firebird/Trans Am - 67-81 Firebird/Trans Am
