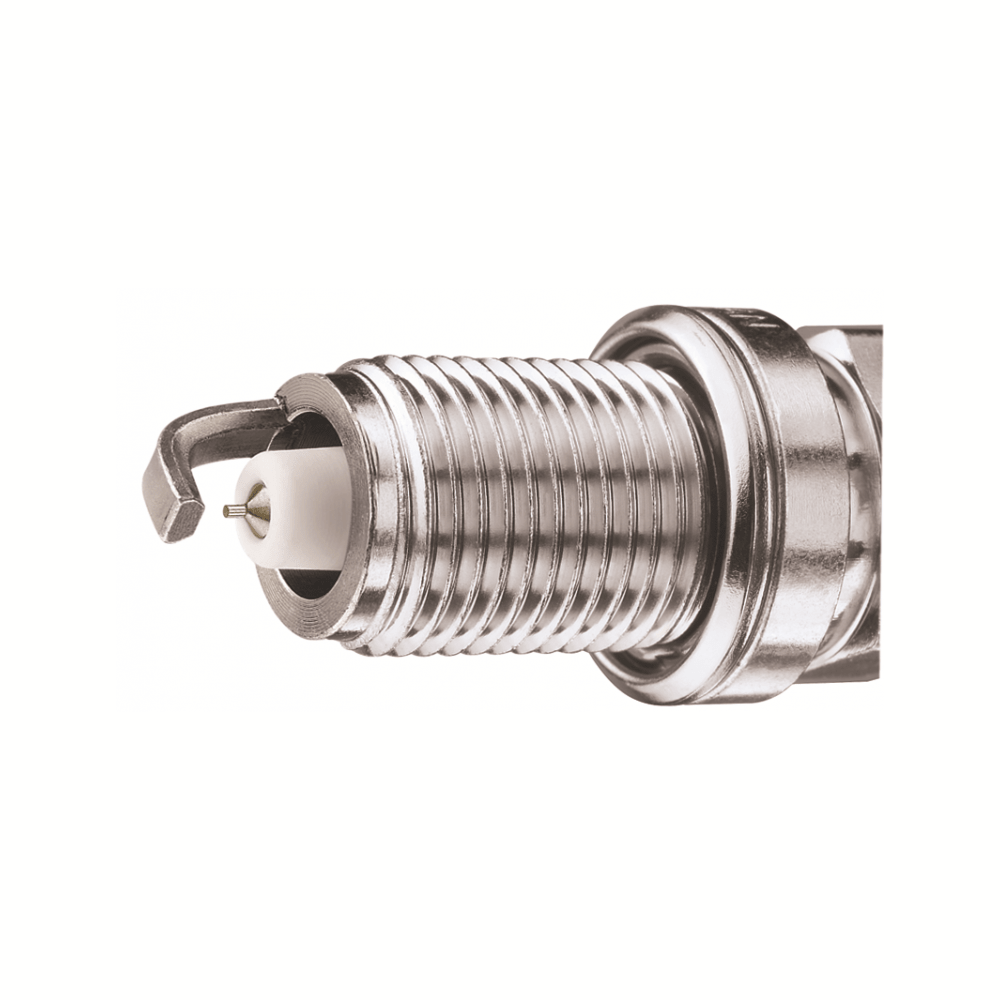

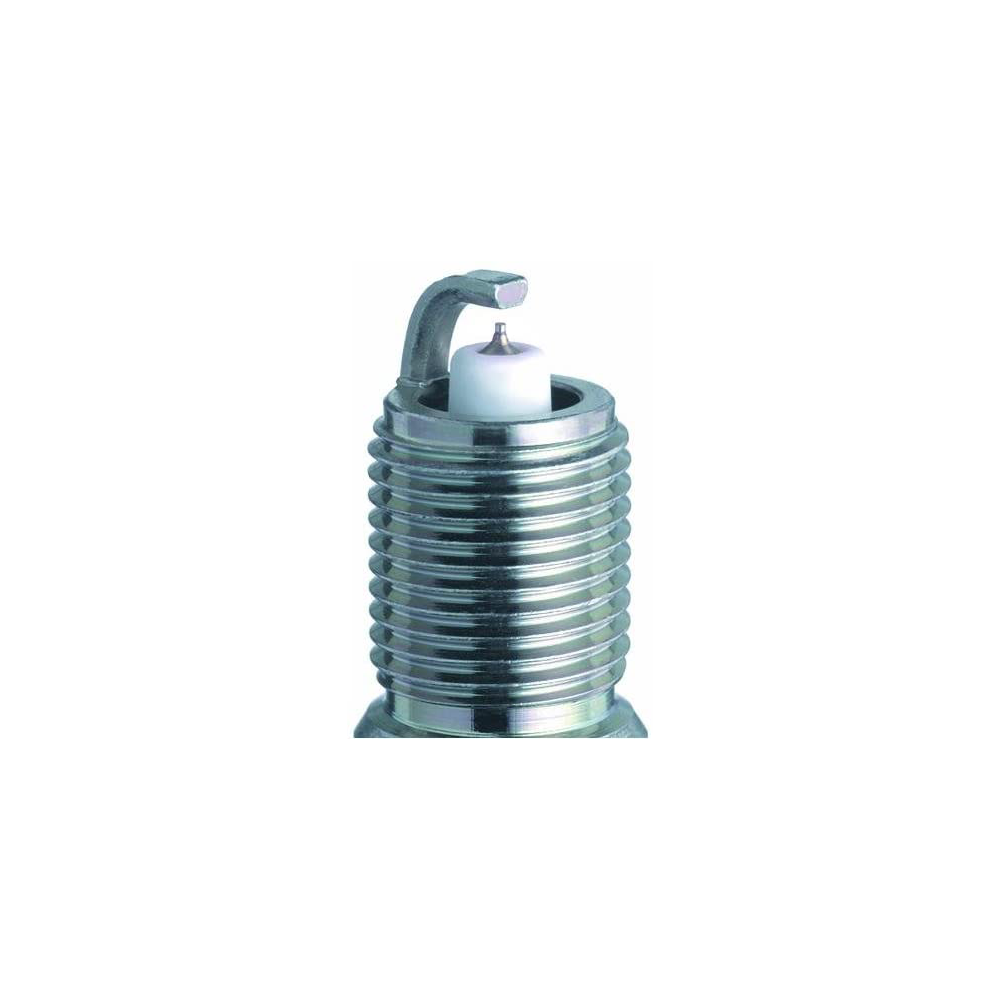

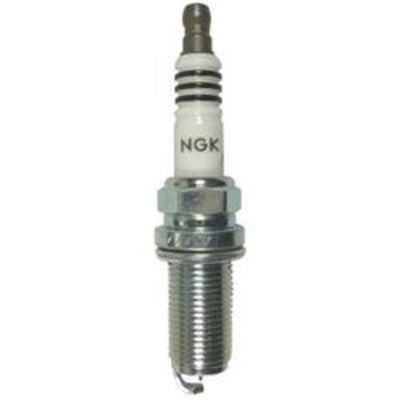

NGK Laser Iridium Spark Plug 2309 LFR7AIX
NGKLFR7AIX (Not in stock)NGK
Regular price
$12.09
NGK IX Iridium Series plugs were designed specifically for the performance enthusiast.
- Fine wire center electrode ensures high durability and a consistently stable spark
- Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
- MPN: LFR7AIX
Specifications
| Warranty | 1 Year |
| Torque Specs | Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft. |
| Brand | NGK |
| Heat Range | 7 |
| Longevity | 50k Miles |
| Resistor | Yes |
Shell
| Thread Size | 14mm |
| Thread Pitch | 1.25mm |
| Seat Type | Gasket |
| Resistor Value | 5K Ohm |
| Reach | 26.5mm (1.04") |
| Hex Size | 5/8" (16mm) |
| Terminal Type | Solid |
| Overall Height | ISO |
| Gap | .031" (0.8mm) |
Center Electrode
| Material | Iridium |
| Type | Fine Wire |
| Size | 0.6mm |
| Projection | Projected |
Ground Electrode
| Material | Nickel |
| Type | Standard |
| Shape | Taper Cut |
| Quantity | 1 |
Fitment
Automotive
Non Automotive
