NGK G-Power Series offers the performance and durability of platinum at a competitive price.

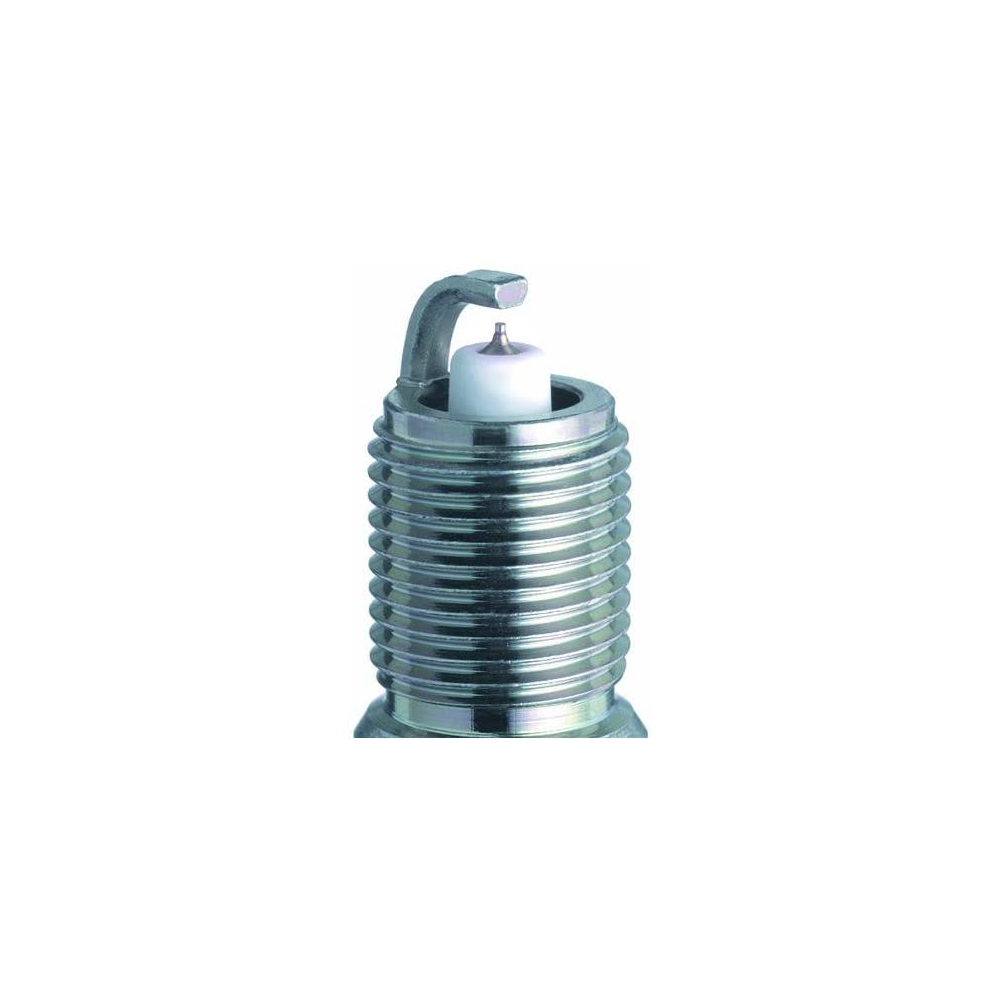

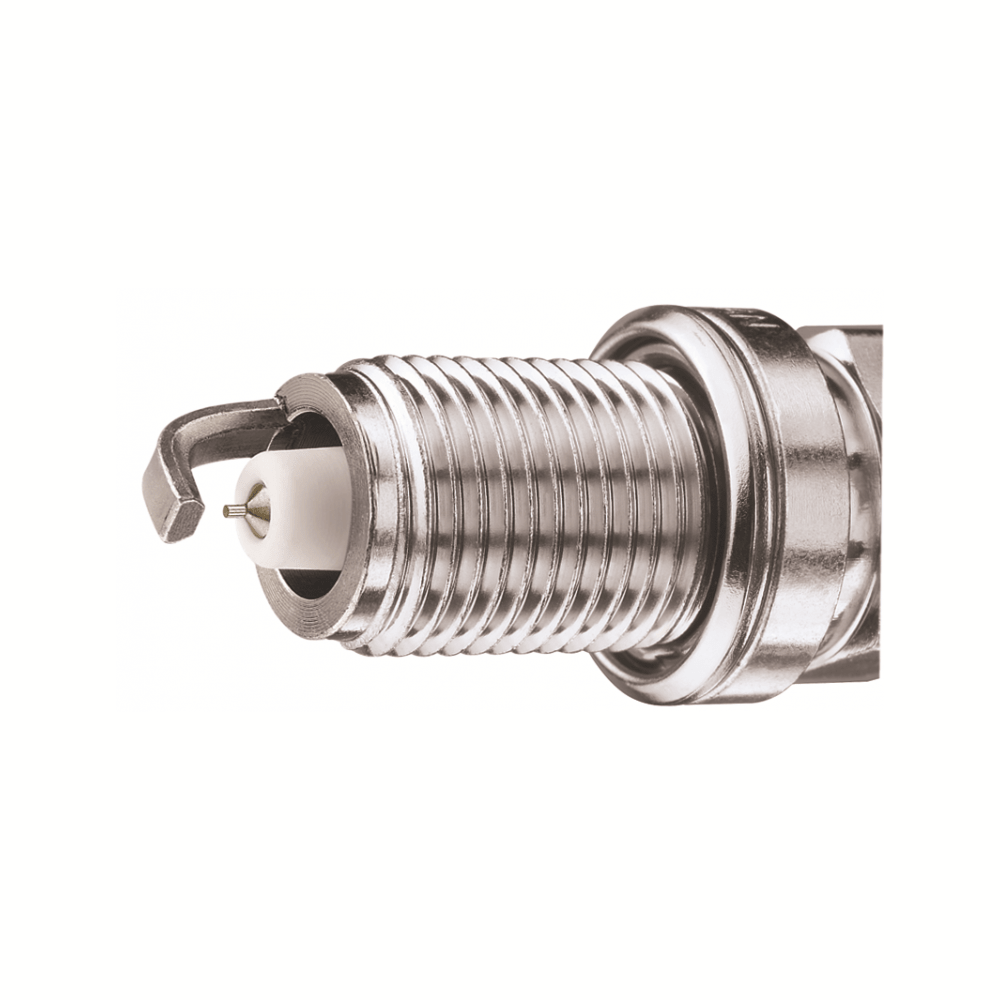

- Fine wire platinum tipped center electrode reduces required voltage for better starts, superior acceleration and increased fuel economy
- Trapezoid cut ground electrode reduces quenching
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage

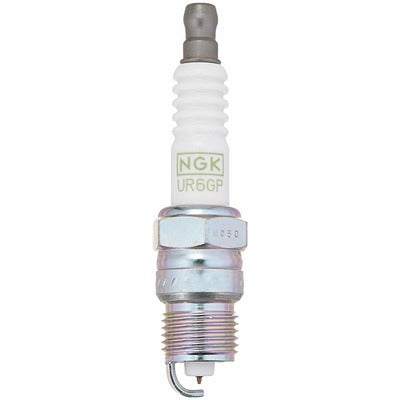

- MPN: UR6GP
Specifications
| Warranty |
1 Year |
| Torque Specs |
Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft. |
| Brand |
NGK |
| Heat Range |
6 |
| Longevity |
40k Miles |
| Resistor |
Yes |
Shell
| Thread Size |
14mm |
| Thread Pitch |
1.25mm |
| Seat Type |
Tapered |
| Resistor Value |
5K Ohm |
| Reach |
11.6mm (.460") |
| Hex Size |
5/8" (16mm) |
| Terminal Type |
Solid |
| Overall Height |
ISO |
| Gap |
.039" (1.0mm) |
Center Electrode
| Material |
Platinum |
| Type |
Fine Wire |
| Size |
0.6mm |
| Projection |
Projected |
Ground Electrode
| Material |
Nickel |
| Type |
Standard |
| Shape |
Trapezoid |
| Quantity |
1 |
Fitment
| 1995 |
| Ford |
| 1972 |
| Ford |
| 1971 |
| Ford |
| 1970 |
| Ford |
