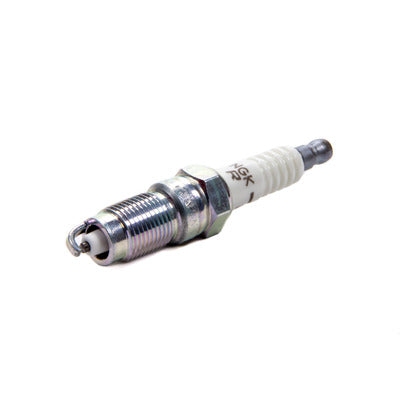

NGK V-Power Spark Plug 7060 TR5-1
NGK V-Power Spark Plug 7060 TR5-1
NGK V-Power Spark Plug 7060 TR5-1

NGK V-Power Spark Plug 7060 TR5-1

NGKTR5-1 (16 in stock)

NGK

Regular price $3.99 Sale

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • MPN: TR5-1

Specifications

Warranty 1 Year
Torque Specs Cast Iron: 10.8-18 lb. ft. Aluminum: 7.2-14.5 lb. ft.
Brand NGK
Heat Range 5
Longevity 30k Miles
Features 3.0mm Extended Metal Shell
Resistor Yes

Shell

Thread Size 14mm
Thread Pitch 1.25mm
Seat Type Tapered
Resistor Value 5K Ohm
Reach 18mm (.709")
Hex Size 5/8" (16mm)
Terminal Type Solid
Overall Height ISO
Gap .039" (1.0mm)

Center Electrode

Material Nickel
Type V-Cut
Size 2.5mm
Projection Projected

Ground Electrode

Material Nickel
Type Standard
Quantity 1

Fitment

Automotive

Non Automotive

Sorry, no non-automotive applications are associated with this part.
