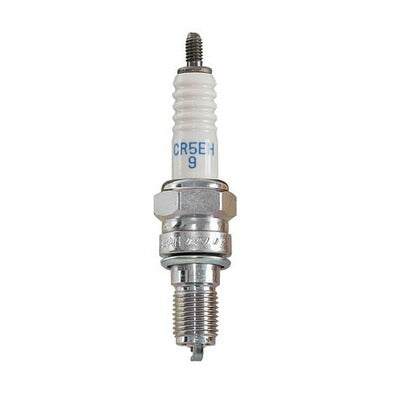

NGK Standard Spark Plug 6689 CR5EH-9
NGK Standard Spark Plug 6689 CR5EH-9
NGK Standard Spark Plug 6689 CR5EH-9
NGK Standard Spark Plug 6689 CR5EH-9
NGK Standard Spark Plug 6689 CR5EH-9

NGK Standard Spark Plug 6689 CR5EH-9

NGKCR5EH-9 (6 in stock)

Regular price $7.99 Sale

NGK standard plugs are constructed for longer life and optimum performance.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • MPN: CR5EH-9

Specifications

Warranty 1 Year
Torque Specs Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
Brand NGK
Heat Range 5
Longevity 30k Miles
Features 12.7mm Threaded Reach
Resistor Yes

Shell

Thread Size 10mm
Thread Pitch 1.0mm
Seat Type Gasket
Resistor Value 5K Ohm
Reach 19mm (3/4")
Hex Size 5/8" (16mm)
Terminal Type Threaded Stud
Overall Height ISO
Gap .035" (0.9mm)

Center Electrode

Material Nickel
Type Standard
Size 2.5mm
Projection Non-Projected

Ground Electrode

Material Nickel
Type Standard
Quantity 1

Fitment

Automotive

Sorry, no automotive applications are associated with this part.

Non Automotive
