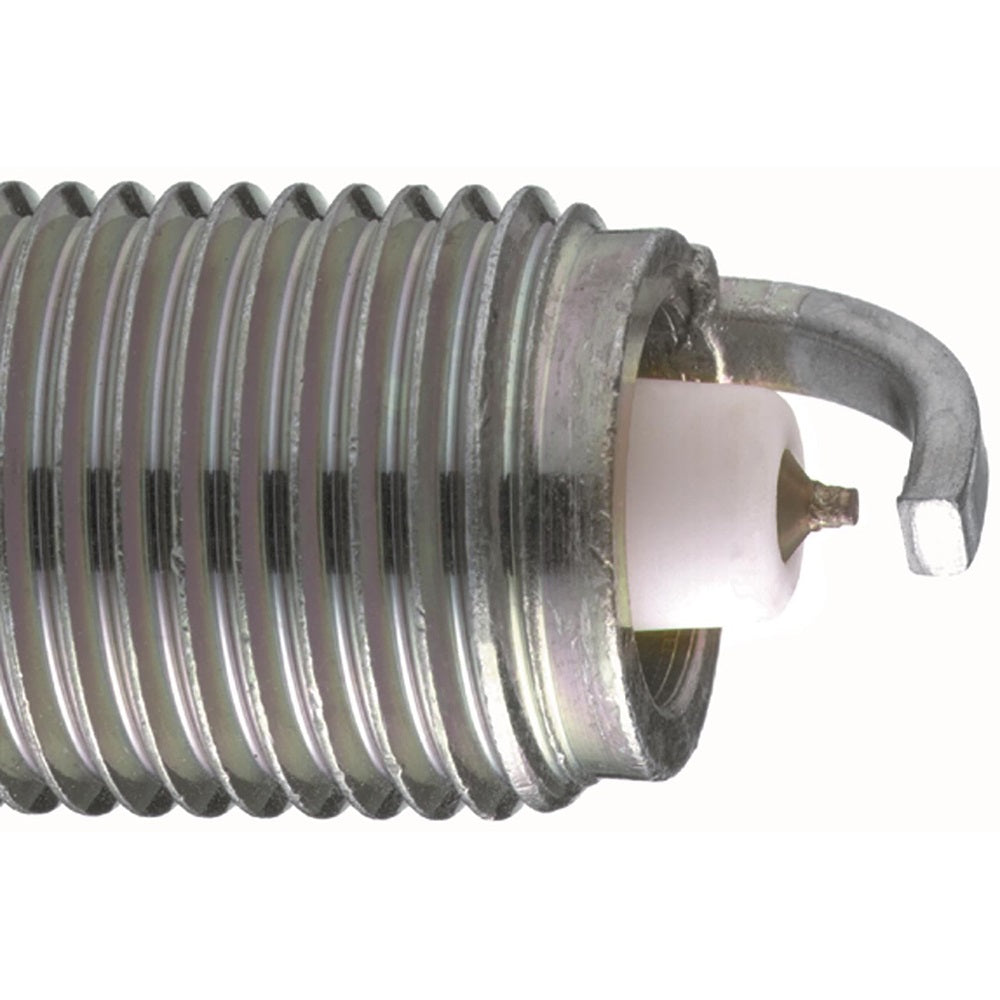

Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth.
Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs, including:
- Corrugated Ribs to Prevent Flashover
- Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
- Copper core to aid in heat removal
- Triple seals to prevent leakage
- MPN: JR9C
Specifications
| Warranty |
1 Year |
| Torque Specs |
Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft. |
| Brand |
NGK |
| Heat Range |
9 |
| Longevity |
50k Miles |
| Resistor |
Yes |
Shell
| Thread Size |
12mm |
| Thread Pitch |
1.25mm |
| Seat Type |
Gasket |
| Resistor Value |
5K Ohm |
| Reach |
19mm (3/4") |
| Hex Size |
18mm |
| Terminal Type |
Threaded Stud |
| Overall Height |
ISO |
| Gap |
.028" (0.7mm) |
Center Electrode
| Material |
Nickel |
| Type |
Standard |
| Size |
2.5mm |
| Projection |
Projected |
Ground Electrode
| Material |
Nickel |
| Type |
Multi-Ground |
| Quantity |
2 |
Fitment
Automotive
Sorry, no automotive applications are associated with this part.
