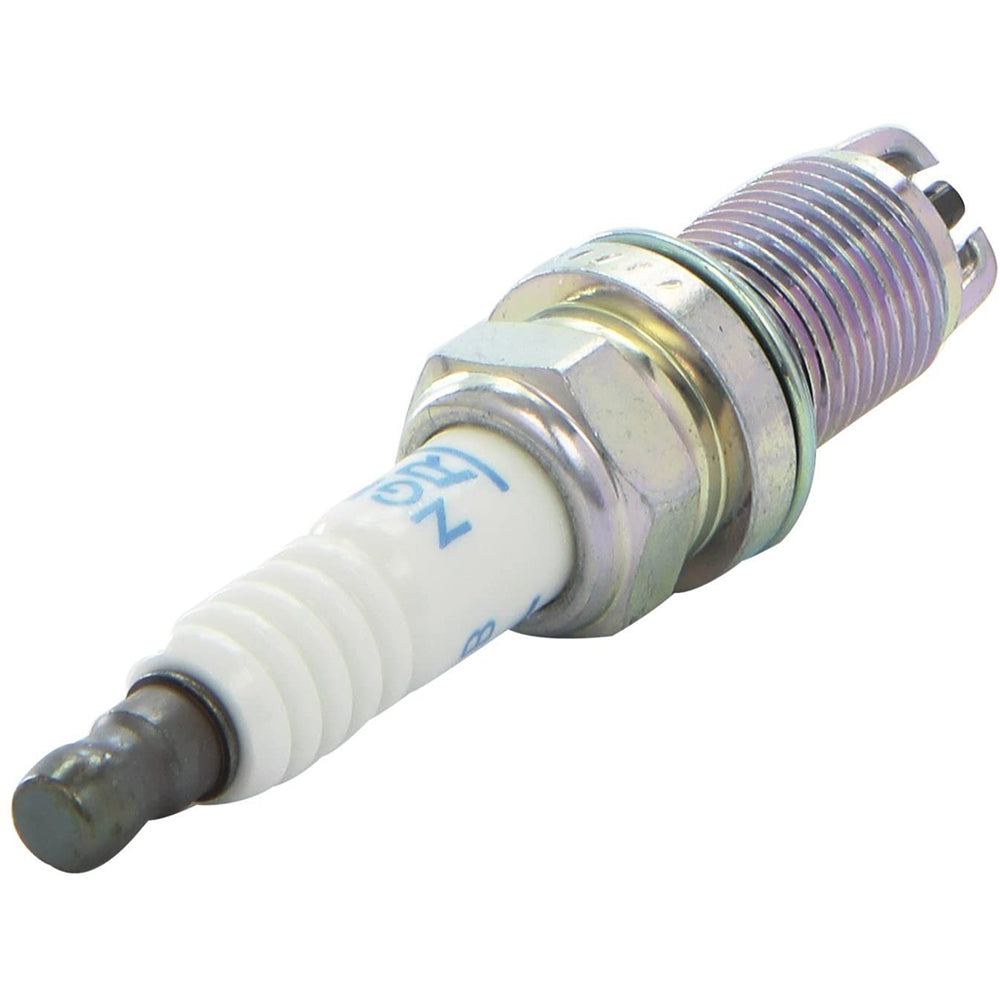

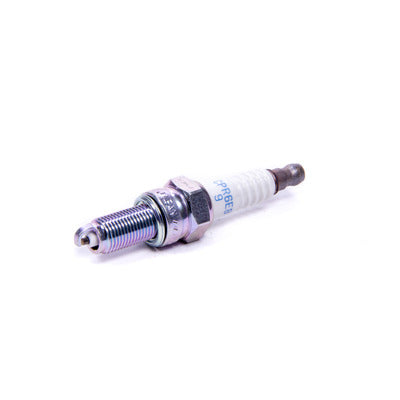

NGK standard plugs are constructed for longer life and optimum performance.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
- MPN: CPR6EB-9
Specifications
| Warranty |
1 Year |
| Torque Specs |
Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft. |
| Brand |
NGK |
| Heat Range |
6 |
| Longevity |
30k Miles |
| Resistor |
Yes |
Shell
| Thread Size |
10mm |
| Thread Pitch |
1.0mm |
| Seat Type |
Gasket |
| Resistor Value |
5K Ohm |
| Reach |
19mm (3/4") |
| Hex Size |
5/8" (16mm) |
| Terminal Type |
Solid |
| Overall Height |
ISO |
| Gap |
.035" (0.9mm) |
Center Electrode
| Material |
Nickel |
| Type |
Standard |
| Size |
2.5mm |
| Projection |
Projected |
Ground Electrode
| Material |
Nickel |
| Type |
Standard |
| Quantity |
1 |
Fitment
Automotive
Sorry, no automotive applications are associated with this part.
