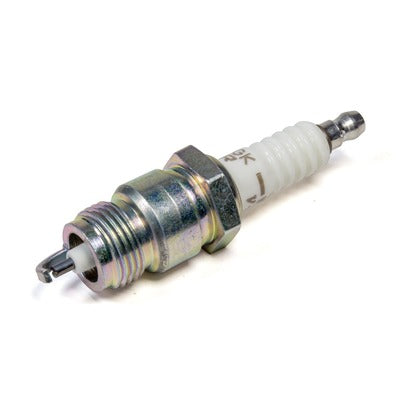

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
- MPN: WR4-1
Specifications
| Warranty |
1 Year |
| Torque Specs |
Cast Iron: 14.5-21.6 lb. ft. Aluminum: 14.5-21.6 lb. ft. |
| Brand |
NGK |
| Heat Range |
4 |
| Longevity |
30k Miles |
| Resistor |
Yes |
Shell
| Thread Size |
18mm |
| Thread Pitch |
1.5mm |
| Seat Type |
Tapered |
| Resistor Value |
5K Ohm |
| Reach |
11.6mm (.460") |
| Hex Size |
13/16" (21mm) |
| Terminal Type |
Solid |
| Overall Height |
ISO |
| Gap |
.039" (1.0mm) |
Center Electrode
| Material |
Nickel |
| Type |
V-Cut |
| Size |
2.5mm |
| Projection |
Extended Projection |
Ground Electrode
| Material |
Nickel |
| Type |
Standard |
| Quantity |
1 |
Fitment
Non Automotive
Sorry, no non-automotive applications are associated with this part.
